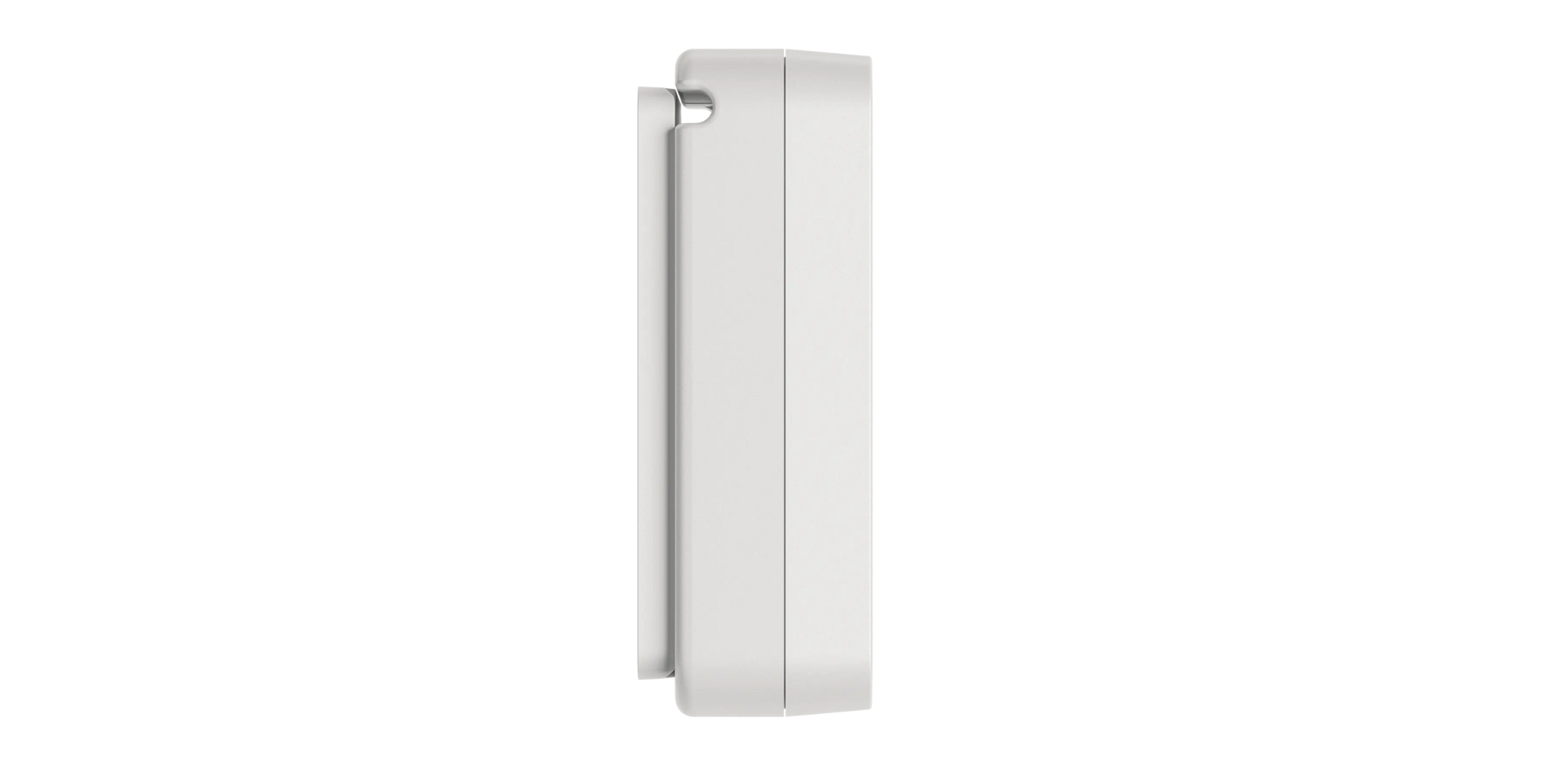

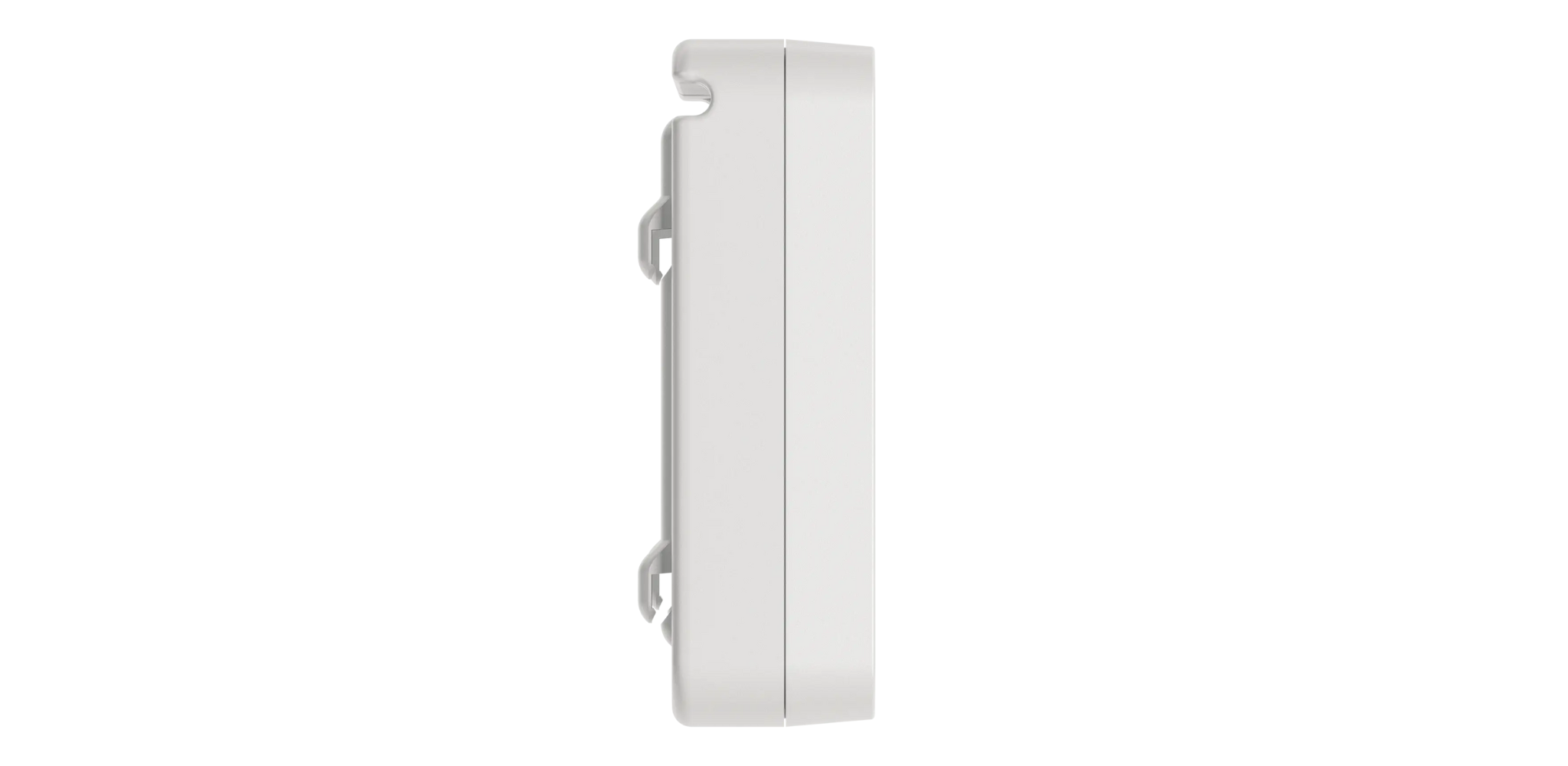

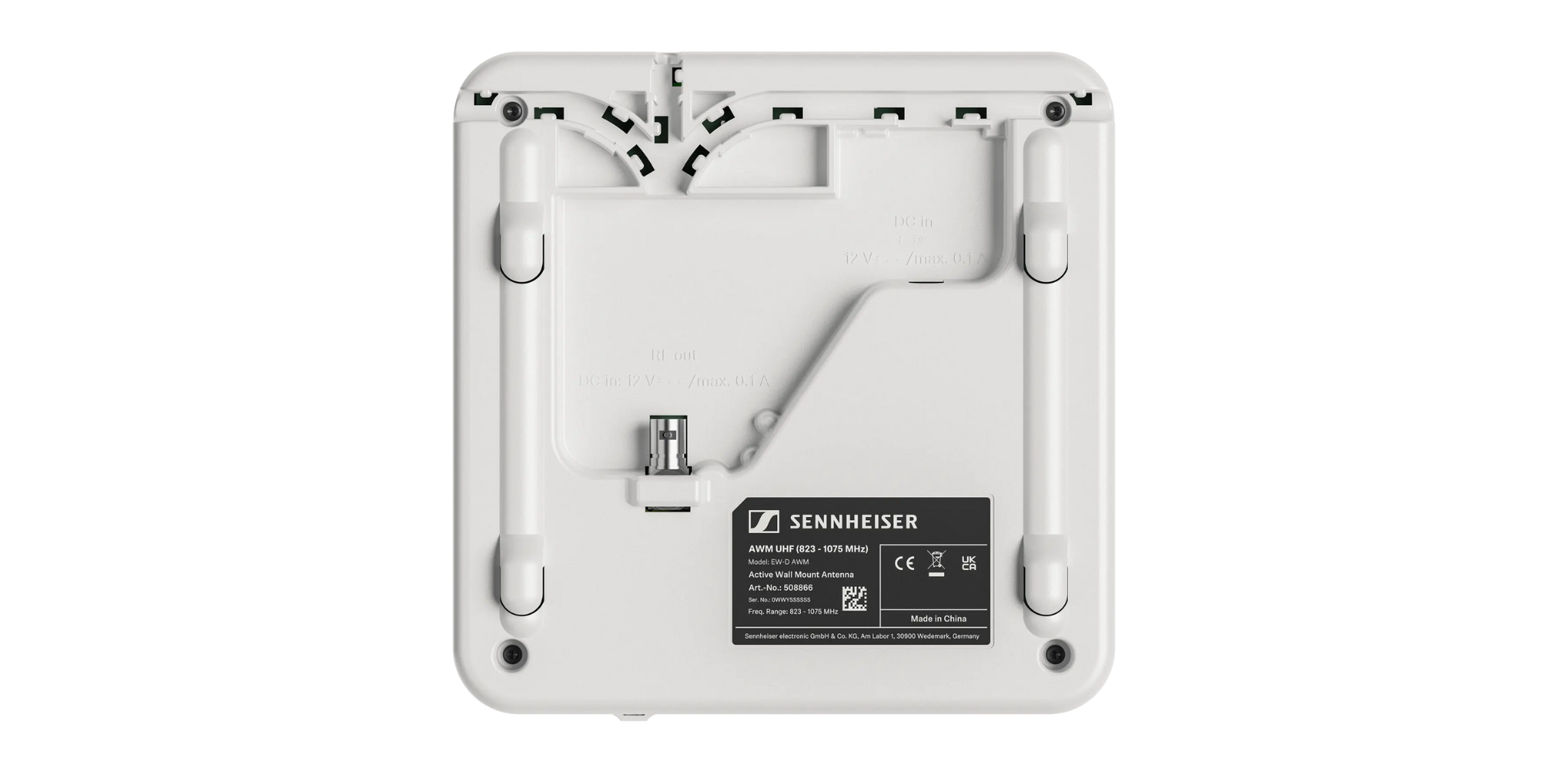

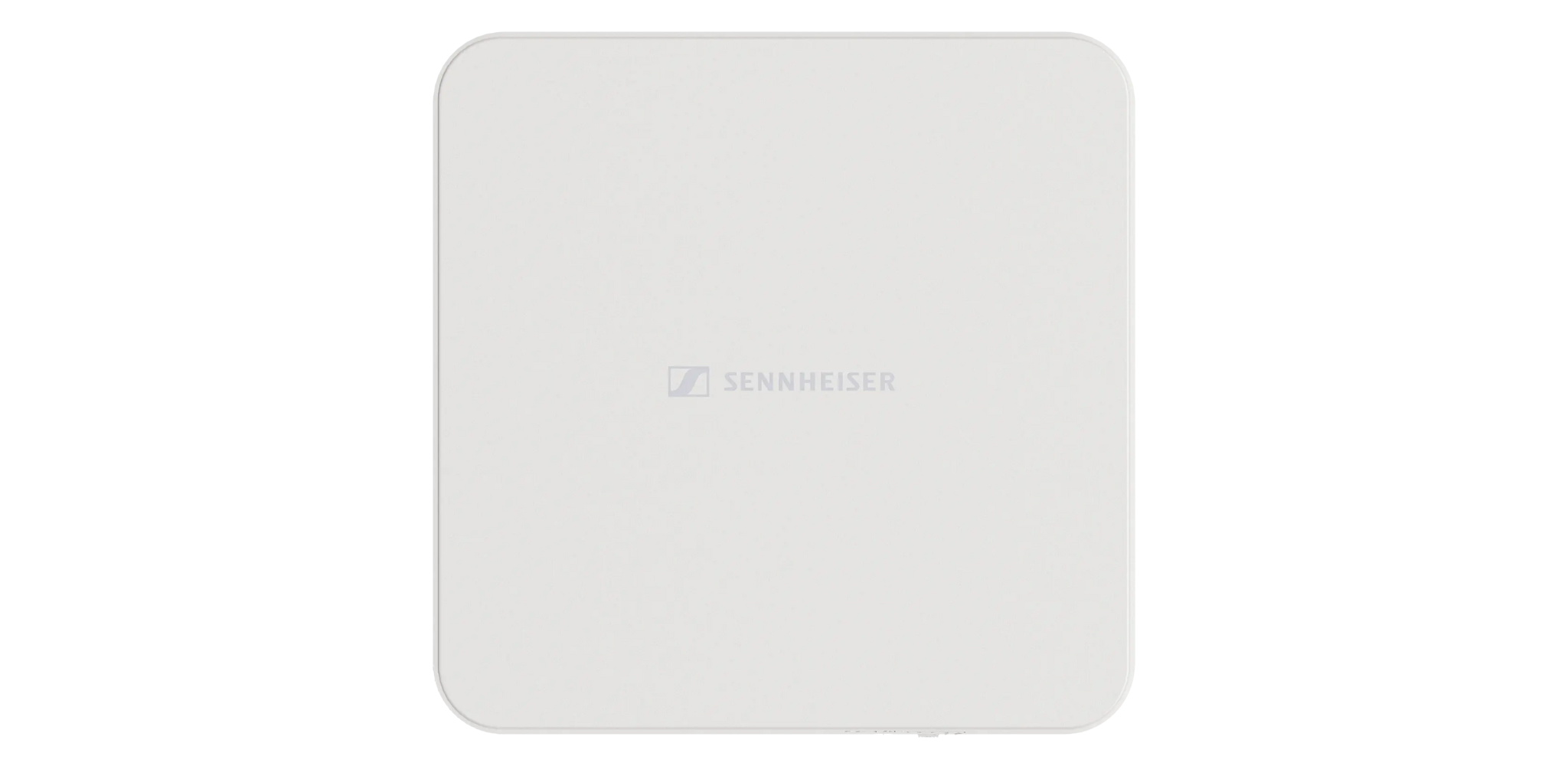

AWM Antenna is an active directional antenna for use with Evolution Wireless Digital microphone systems. The AWM antenna is designed to enhance the wireless performance of your Evolution Wireless Digital system and can be installed quickly and easily in any room, on a vertical (wall) or horizontal (ceiling) surfaces. The AWM UHF can be connected to any stationary Evolution Wireless Digital receiver or EW-D ASA antenna splitter. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly.
Features
-
Active directional antenna
-
Adjustable gain settings for different cable length
-
Wall, ceiling or mic stand mounting options
-
Power supply via BNC (EW-D ASA / EW-DX EM 4 Dante) or optional power supply<br>
-
In combination with EW-DX EM 2 (Dante) or EW-D EM, a power supply ( EW-D POWER SUPPLY) is required<br>
Top Specs
|
Specification
|
Value
|
|
Weight
|
Approx. 700 g
|
|
Frequency Range
|
823 – 1075 MHz
|
|
Power Consumption
|
12 V DC (9 – 18 V DC) / max. 100 mA @ 12 V
|
|
Connection
|
BNC female, DC coupled
|
|
Connectors
|
BNC
|
Tech Specs
Frequency Specifications
|
Specification
|
Value
|
|
Frequency range
|
823 – 1075 MHz
|
Connectivity
|
Specification
|
Value
|
|
Connection
|
BNC female, DC coupled
|
|
Connectors
|
BNC
|
Ambient Conditions
|
Specification
|
Value
|
|
Operating relative humidity
|
6 to 95 %
|
|
Operating temperature
|
-10 °C to +55 °C (14 °F to 131 °F)
|
Battery & Power
|
Specification
|
Value
|
|
Battery included
|
N
|
|
Power consumption
|
12 V DC (9 – 18 V DC) / max. 100 mA @ 12 V
|
Electrical Properties
|
Specification
|
Value
|
|
Impedance
|
50
|
|
Input voltage
|
13 V DC (9 – 18 V DC) / max. 100 mA @ 12 V
|
|
Output power
|
Approx. +18 dBm
|
Dimensions
|
Specification
|
Value
|
|
Height
|
63 mm
|
|
Width
|
180 mm
|
|
Length
|
180 mm
|
|
Weight
|
Approx. 700 g
|
