Condenser 3-Pin Tablestand 3-Pin Tablestand 470.2 - 550 MHz Sennheiser EW-DX TS 3-PIN (Q1-9)

Name: Condenser 3-Pin Tablestand 3-Pin Tablestand 470.2 - 550 MHz Sennheiser EW-DX TS 3-PIN (Q1-9) | EW Digital
Brand: Sennheiser
SKU: HBK60071
Availability: InStock
Rating: 4.67 (3 reviews)

EW-DX TS 3-PIN (Q1-9) Condenser 3-Pin Tablestand 470.2 - 550 MHz Sennheiser

Product code: EW-DX TS 3-PIN (Q1-9) 23

4.67/5 in 3 times

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Tablestand transmitter with 3-pin XLR connector

Programmable mute switch

Inductive charging with CHG 2W

10 h runtime with BA 40 lithium-ion battery

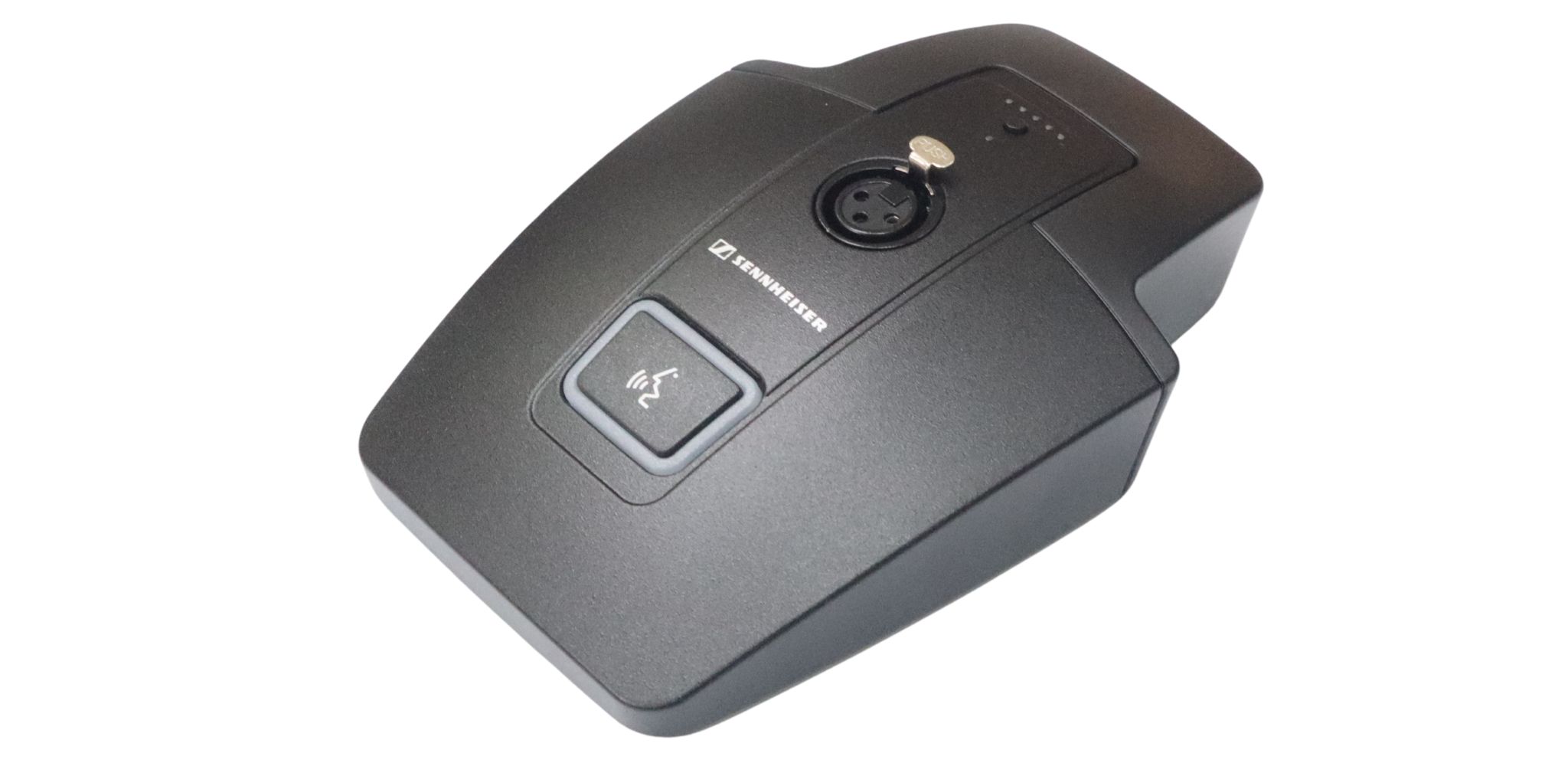

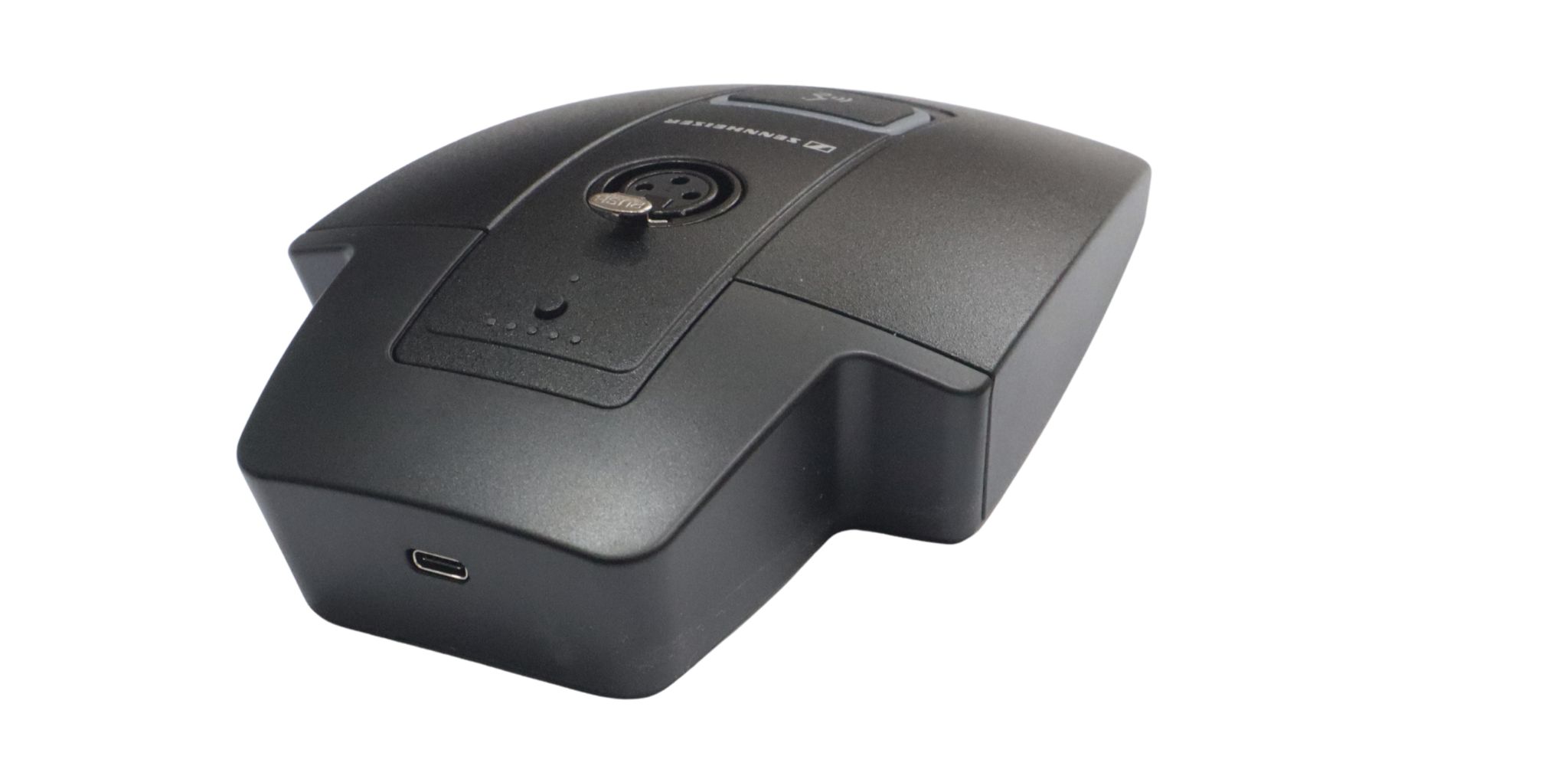

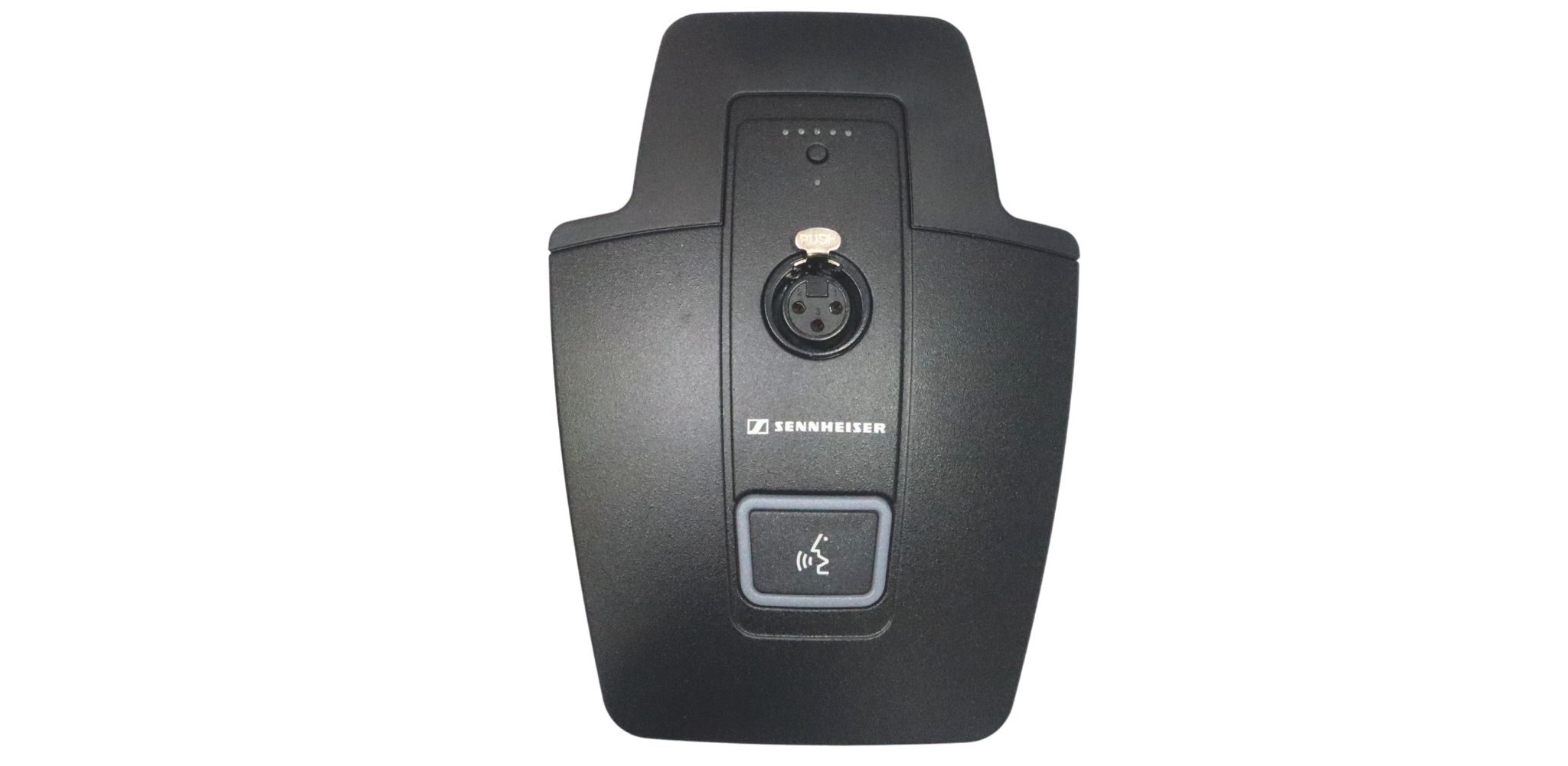

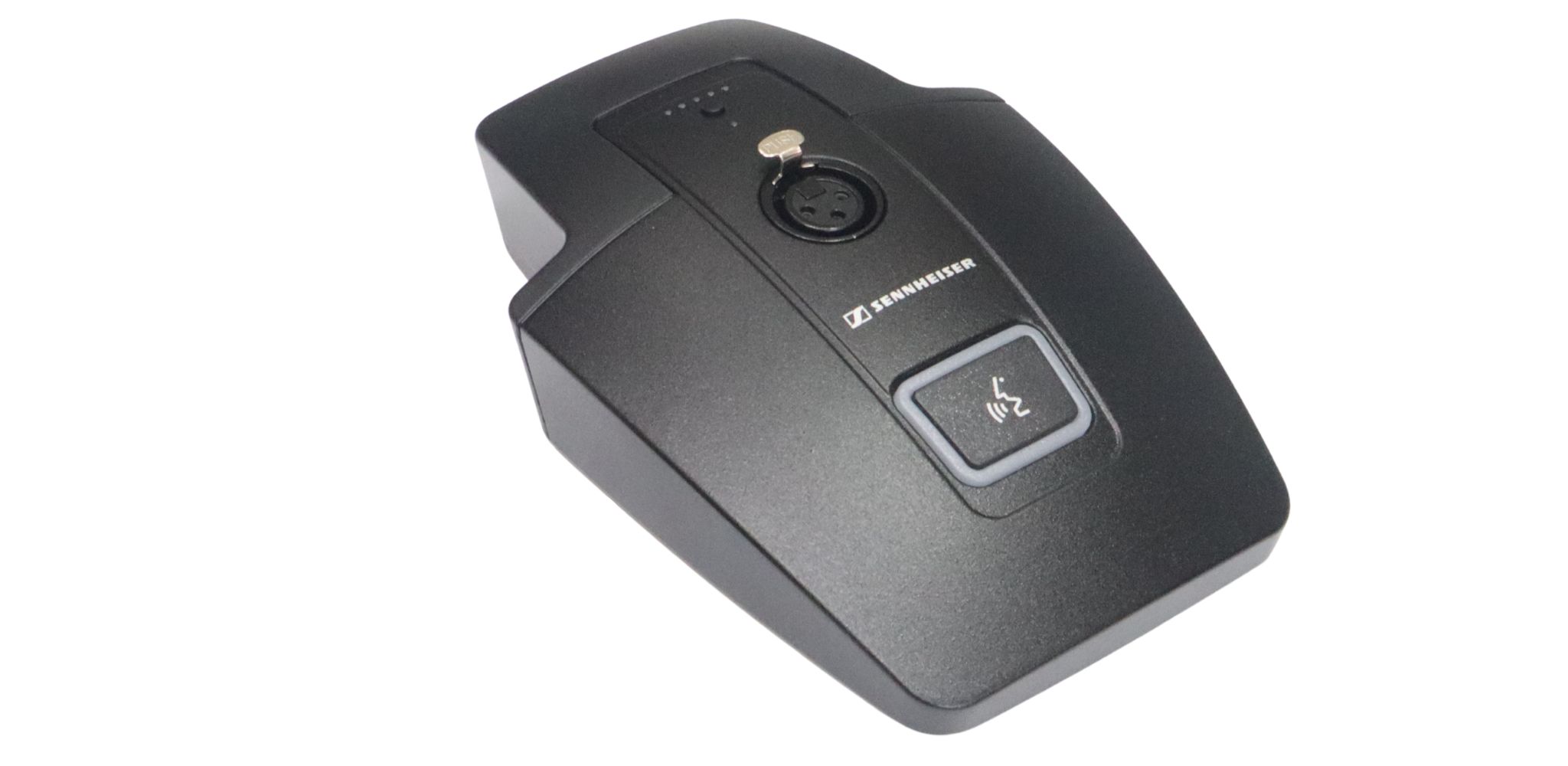

EW-DX TS 3-pin tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones.

Shipping informations

Length

27 cm

Width

24 cm

Height

11.5 cm

Weight

2.5 kg

Official Distributor Certificate

Sennheiser distributor certificate

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. EW-DX tablestand transmitters are compatible with a wide range of Sennheiser gooseneck microphones.

Features

Tablestand transmitter with 3-pin XLR connector
Programmable mute switch
Inductive charging with CHG 2W

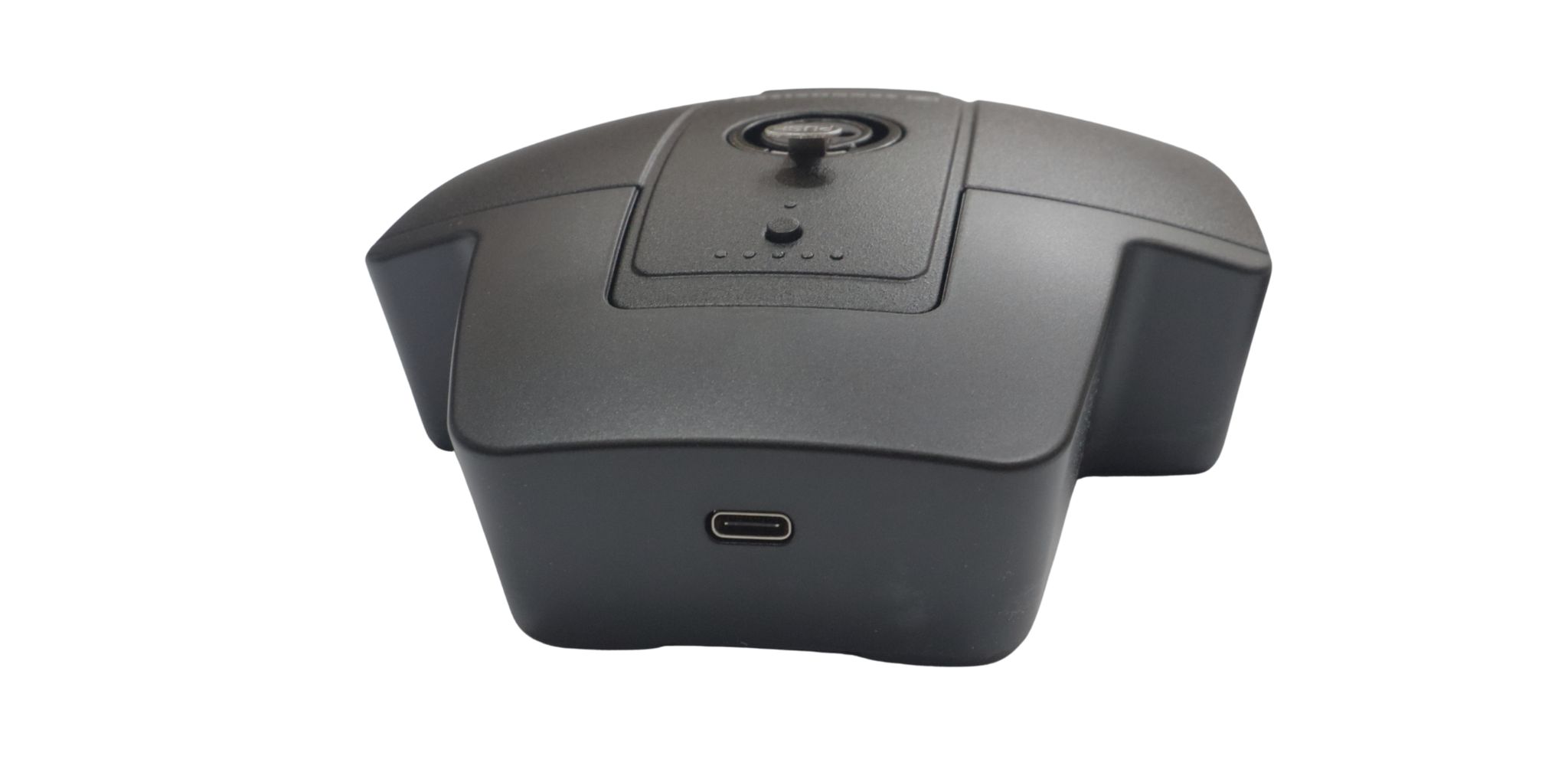

Charging via USB
10 h runtime with BA 40 lithium-ion battery
Wide range of compatible Sennheiser gooseneck microphones: any gooseneck without LED ring for a 3-pin variant
Metal housing

Top Specs

Weight (g)approx. 660 g (excl. BA 40)
Audio inputXLR 3F
Frequency range470.2 - 550 MHz
Input impedance30 k& OMEGA;
Latency (ms)1.9 ms
Signal-to-noise ratio> 90 dB(A)
Transducer typeCondenser
ConnectionWireless

Tech Specs

Product

Latency (ms)

1.9 ms
RF sensitivity

< -90 dBm
Total harmonic distortion (THD)

≤ -60 dB for 1 kHz @ -3 dBfs input level

Frequency Specifications

Frequency range

470.2 - 550 MHz
Frequency response

75 to 20,000 Hz
Audio frequency response

20 Hz - 20 kHz (-3 dB)

Acoustic Properties

Signal-to-noise ratio

> 90 dB(A)
Dynamic range (>)

134 dB
Sampling rates

24 bit/48 kHz

Connectivity

Connection

Wireless

Inputs/Outputs

Audio input

XLR 3F

Ambient Conditions

Operating relative humidity (≤ %)

5 - 95 % (non-condensing)
Operating temperature (C)

-10 °C - +50 °C (14 °F - 122 °F)

Battery & Power

Battery included

Y
Battery capacity (Ah)

2.2
Battery count

1
Battery voltage (V)

3.6
Charging current (mA)

< 300 mA
Battery operating time (h)

BA 40 rechargeable battery pack

Electrical Properties

Input voltage

2.0 - 4.35 V
Input impedance

30 kΩ
Output power

Audio Link: 10 mW; Bluetooth Low Energy: max. 10 mW EIRP
Transmission power (mA)

Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP

Technology

Transmission method

200 kHz

Dimensions

Weight (g)

approx. 660 g (excl. BA 40)
Product height

94
Product length

250
Product weight (g)

650
Product width

225

Bluetooth

Bluetooth transmission frequency

2402 - 2480 MHz

What's in the box

EW-DX Tablestand Transmitter

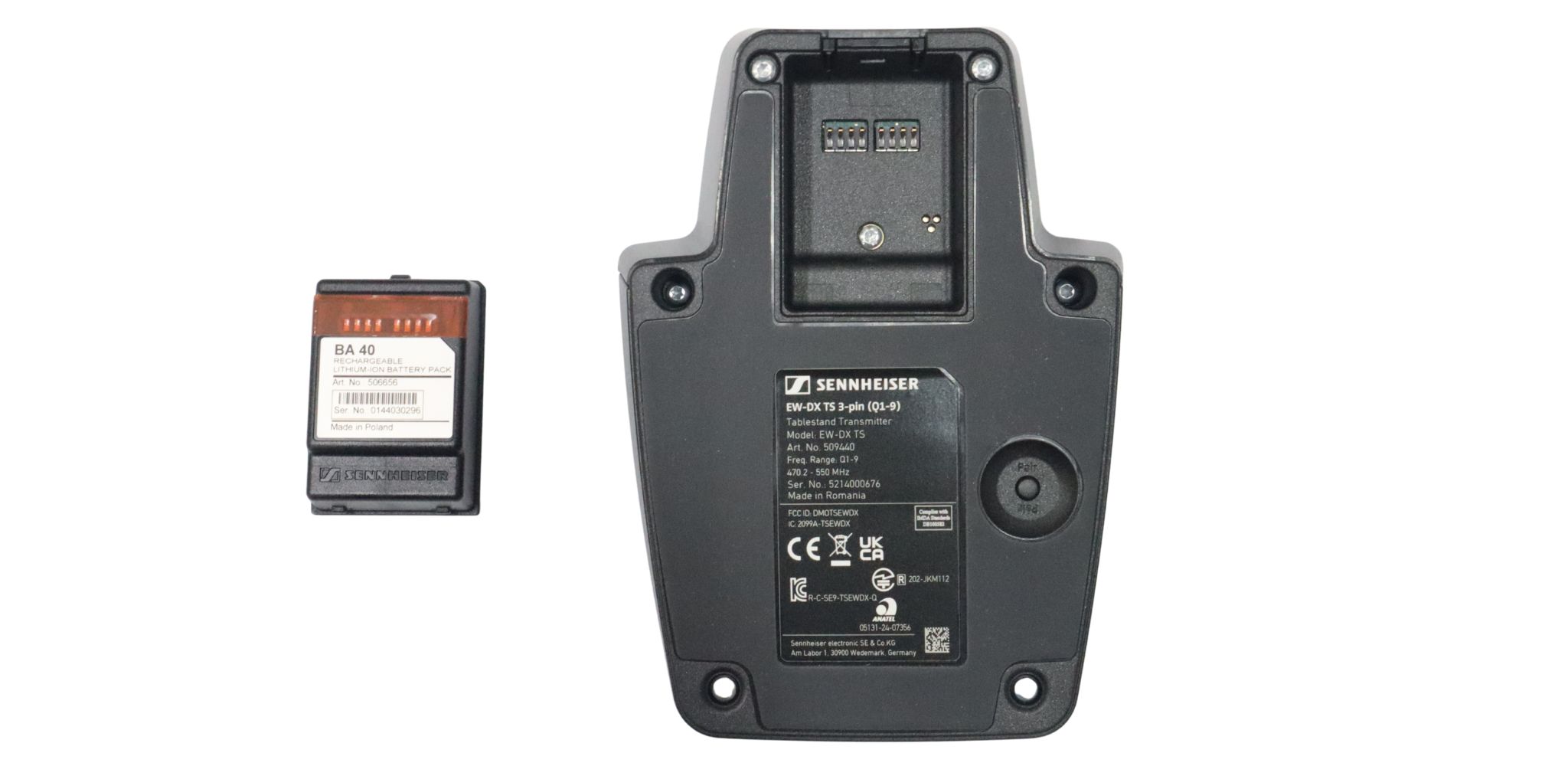

BA 40
Quick guide<br>
Safety guide
Manufacturer declaration sheet

Does the company offer free shipping?

Free shipping for local order over $22. Oversea buyers will pay for shipping cost under Ex-work term.

EW-DX TS 3-PIN (Q1-9) has a discount?

This price is the best to you now.

Which brand does EW-DX TS 3-PIN (Q1-9) belongs to?

EW-DX TS 3-PIN (Q1-9) belongs to Sennheiser. With over 75 years of existence and development, Sennheiser has been and continues to be a global leader in professional audio technology with products such as Microphones, Headphones, Wireless Monitoring, Wireless Microphone Systems, and more.
