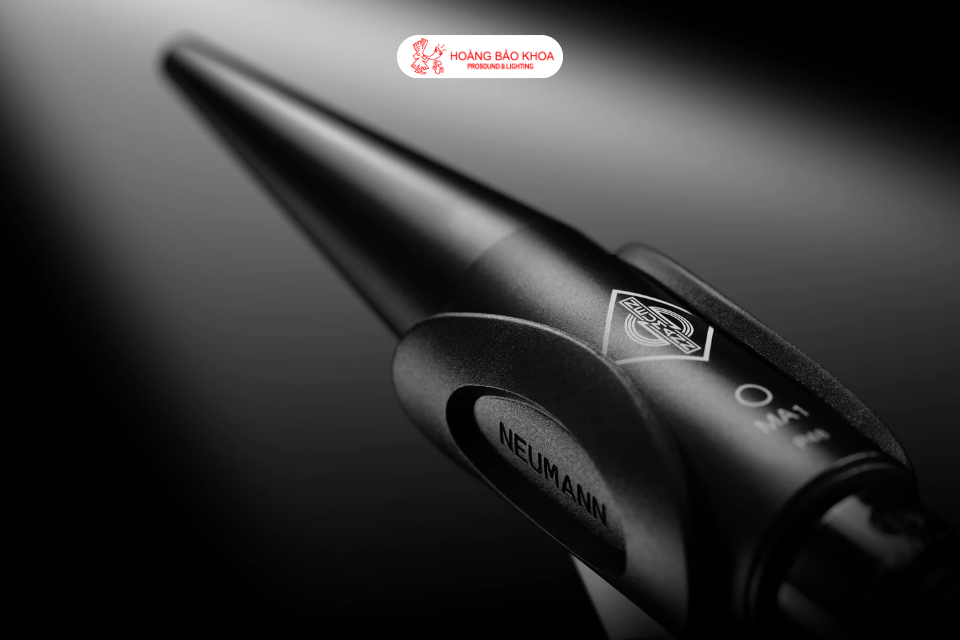

The Neumann MA 1 is an automatic monitor alignment system that combines an individually calibrated measurement microphone with software designed to analyze a room’s acoustic characteristics. Based on the measurement data, MA 1 calculates correction parameters for frequency response, time of arrival and level, helping studio monitors deliver more accurate sound reproduction in the actual listening environment.

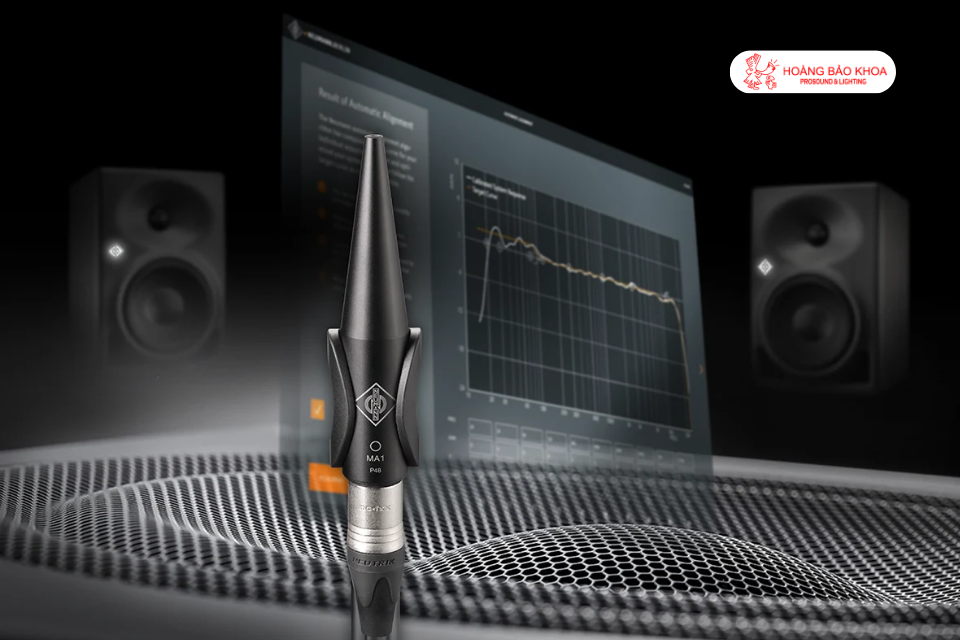

How Does Neumann MA 1 Analyze Room Acoustics?
In a studio, the sound heard at the listening position depends not only on the monitors but also on room dimensions, speaker placement, listening position and reflections from surrounding surfaces. These factors can create peaks and dips in frequency response, particularly in the bass region, making it more difficult to judge a mix accurately.
Neumann MA 1 uses a dedicated measurement Microphone to collect acoustic data through a guided software process. The system analyzes the room’s acoustic characteristics and calculates correction parameters based on a target curve designed for the monitor system.

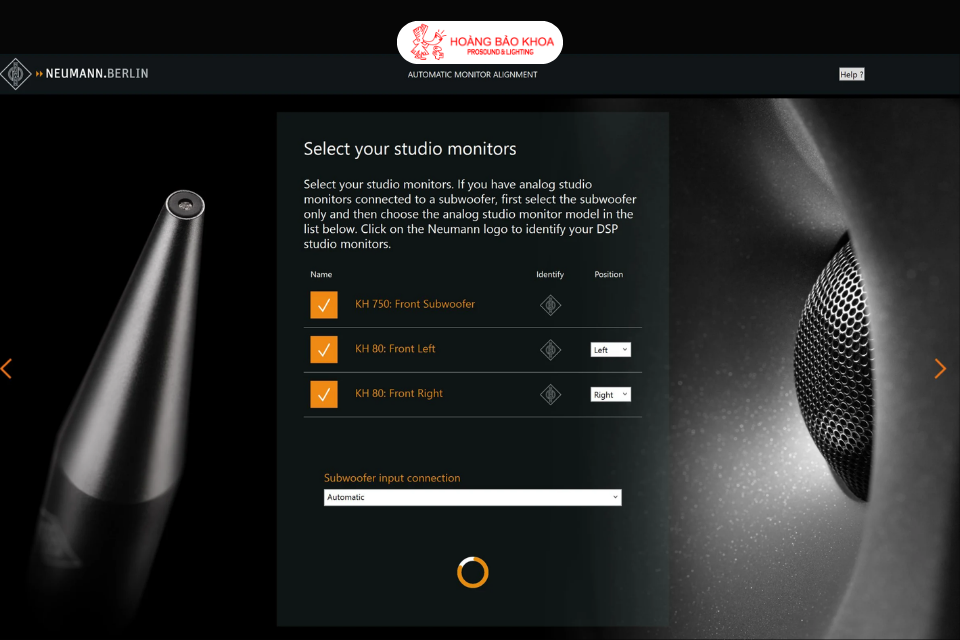

The MA 1 Monitor Calibration Process
The calibration process involves several main STEPS:
- Connect the system: Connect compatible Neumann KH monitors to the outputs of an audio interface or monitor controller. Network-enabled monitors must also be connected to the computer network as instructed by Neumann.
- Connect the measurement microphone: Plug the MA 1 Microphone into the audio interface’s microphone input and launch the MA 1 software.
- Measure the listening environment: Follow the software instructions to measure the monitor system in the actual listening space.
- Calculate and apply corrections: The software generates correction parameters from the measurements and target curve. Users can adjust the target curve to suit their monitoring preferences.
- Save the alignment: Depending on the system configuration, the resulting parameters are stored and processed in DSP-powered monitors or a compatible Neumann subwoofer.
MA 1 is designed for compatible Neumann KH monitor systems. Certain analog monitors without network connectivity require a compatible network-enabled Neumann subwoofer to be included in the alignment system.

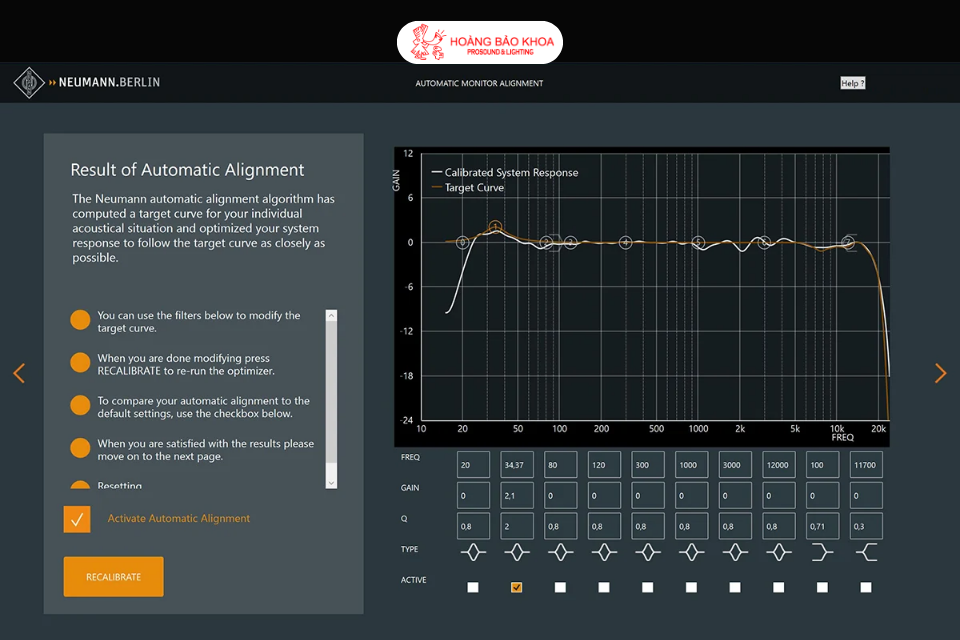

How Does MA 1 Improve Monitoring Accuracy?
MA 1 optimizes the system’s frequency response and time of arrival, with phase correction available in compatible configurations. It also helps compensate for room modes, which can cause uneven bass response at the listening position.
When a subwoofer is used, the alignment algorithm helps coordinate the subwoofer and satellite monitors in terms of timing and phase. This supports more consistent system integration and helps engineers assess tonal balance, transient response and spatial information with greater confidence.
However, MA 1 does not completely replace acoustic treatment. The final result still depends on speaker placement, listening position, room characteristics and the compatibility of the equipment used.
