Adding a subwoofer to a studio monitor system not only extends low-frequency reproduction but also reduces the load on the monitors, increases headroom, and reduces distortion. However, for the system to operate accurately, the subwoofer needs to be properly set up in terms of phase, level, and placement. Neumann explains the key factors that allow monitors and subwoofers to work together as a unified system in the studio.

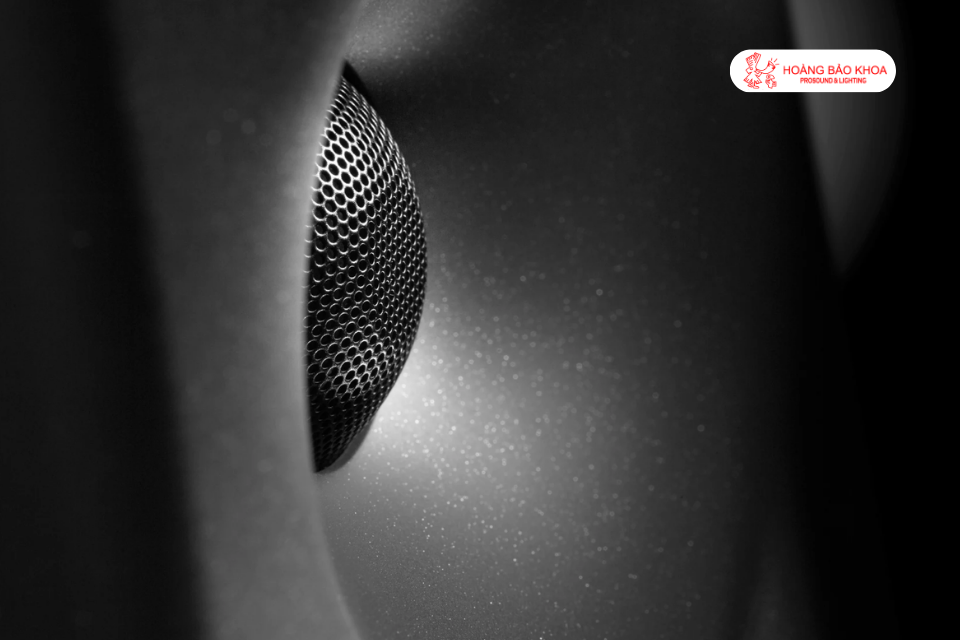

What Role Does a Subwoofer Play in a Monitoring System?
A subwoofer extends the system’s low-frequency reproduction, allowing users to hear and perceive the low end more accurately.
At the same time, the subwoofer reduces the load on Neumann Studio Monitors, giving the monitors more headroom and reducing distortion.
Another benefit is placement flexibility. The subwoofer can be positioned where bass reproduction works best in the room, while the studio monitors can remain in the optimal listening position.
In surround and immersive systems, the subwoofer also handles the LF channel, which is the “.1” in configurations such as 5.1 or 7.1.4.
The LF Channel Is More Than Extended Bass
The LF channel is a dedicated low-frequency effects channel used for elements such as rumbles or explosions in film sound.
With proper bass management, a subwoofer can perform two functions simultaneously: extending the low-frequency range of the studio monitors and reproducing the LF channel.
As a result, the monitors handle the main signal, while the subwoofer takes care of both low-end extension and LFE.
Two Important Factors When Setting Up a Subwoofer
Integrating a subwoofer into a Neumann Professional Studio Monitors system requires precision. Two particularly important factors are phase alignment and level alignment.
If the subwoofer and studio monitors are not accurately time-aligned, the bass response can become uneven and lack clarity.
The subwoofer level also needs to match the monitors. If the subwoofer is too loud or too quiet, the low end will feel disconnected from the rest of the system.
When phase and level are set correctly, the subwoofer and monitors can operate as one unified system.
How Do Neumann DSP Subwoofers Support the System?
Neumann Studio Subwoofers are designed as part of the overall system rather than as standalone devices.
With DSP control, the system supports precise crossover settings, maintains consistent tonal balance, and integrates with different monitoring configurations.
Neumann DSP subwoofers also provide automatic room correction and system alignment, while working with both analog and DSP-controlled monitors from the KH line.

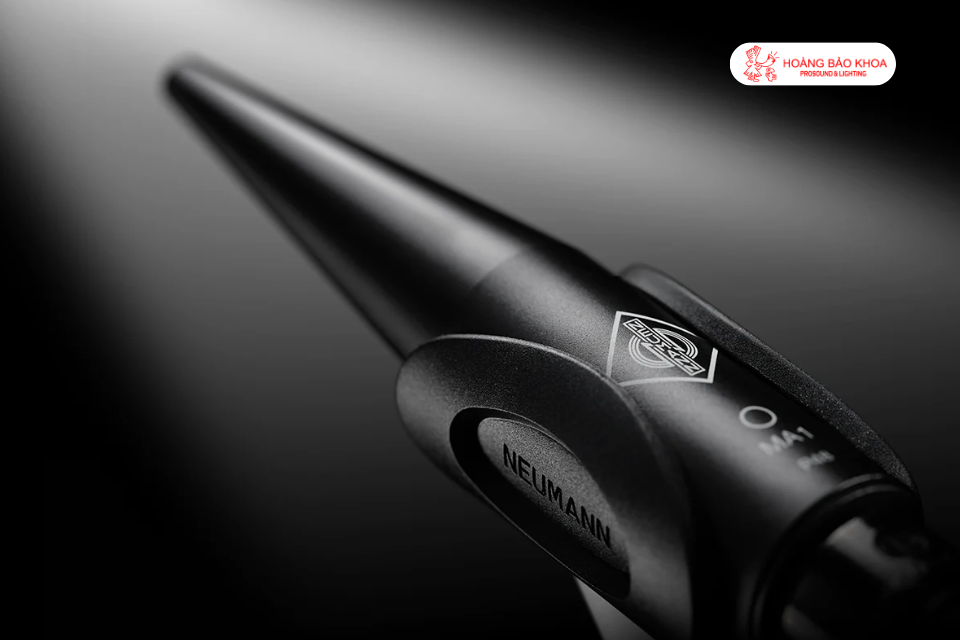

Aligning the Subwoofer and Monitors with Neumann MA 1
According to Neumann, the best way to set up a Neumann subwoofer is to use it with MA 1 Automatic Monitor Alignment.
The system uses a calibrated measurement Microphone together with software and algorithms to guide the setup process and then automatically align the entire system.
MA 1 performs room correction appropriate to the acoustic environment, phase alignment between the subwoofer and monitors, as well as level alignment between the speakers.
Phase linearization and precise phase and level alignment play an important role in stereo imaging and reliable mixing decisions.
With Neumann bass management, Neumann Studio Monitor Speakers and the subwoofer can work together to create a consistent full-range system.

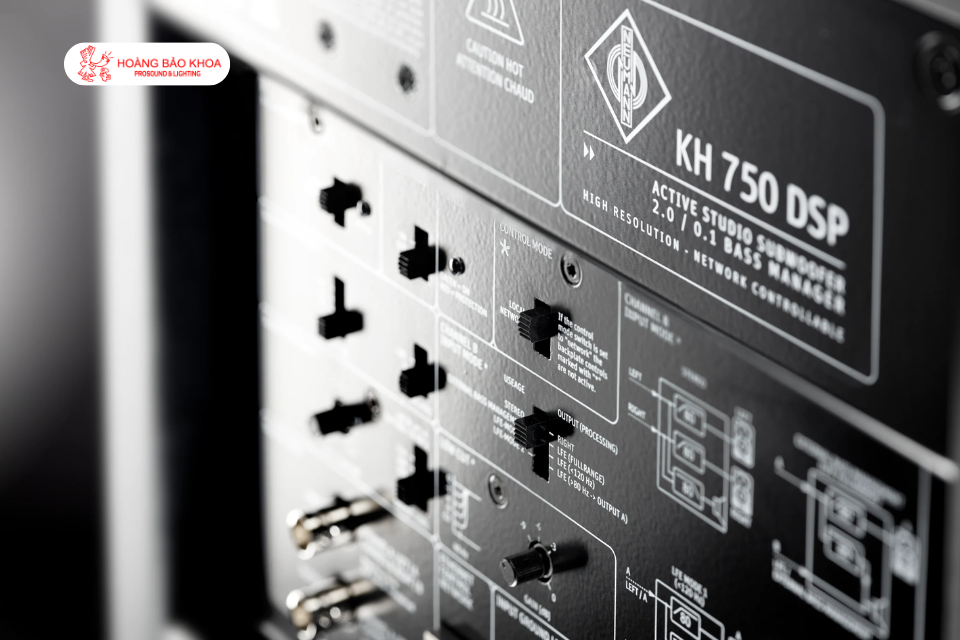

Neumann KH 750 DSP
The KH 750 DSP is suitable for small rooms and home studios. This model is recommended for use with the KH 80 and KH 120 II.
The KH 750 DSP can also upgrade systems using the previous analog KH 120 through DSP, supporting room correction for the entire system.

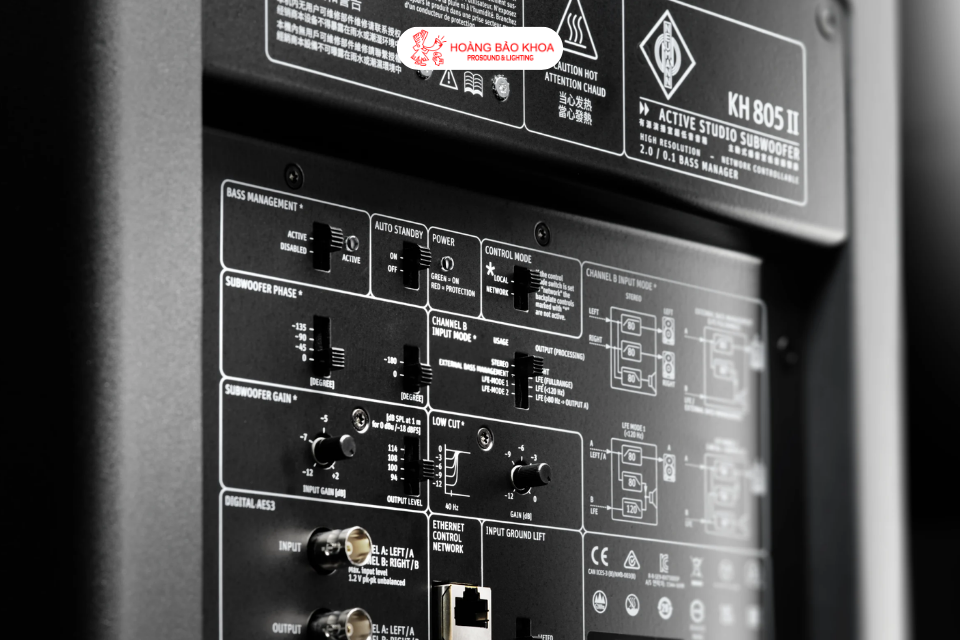

Neumann KH 805 Gen 2
The KH 805 Gen 2 is designed for medium-sized rooms and monitors such as the KH 150 or KH 310.
According to Neumann, this model provides approximately twice the output of the KH 750.

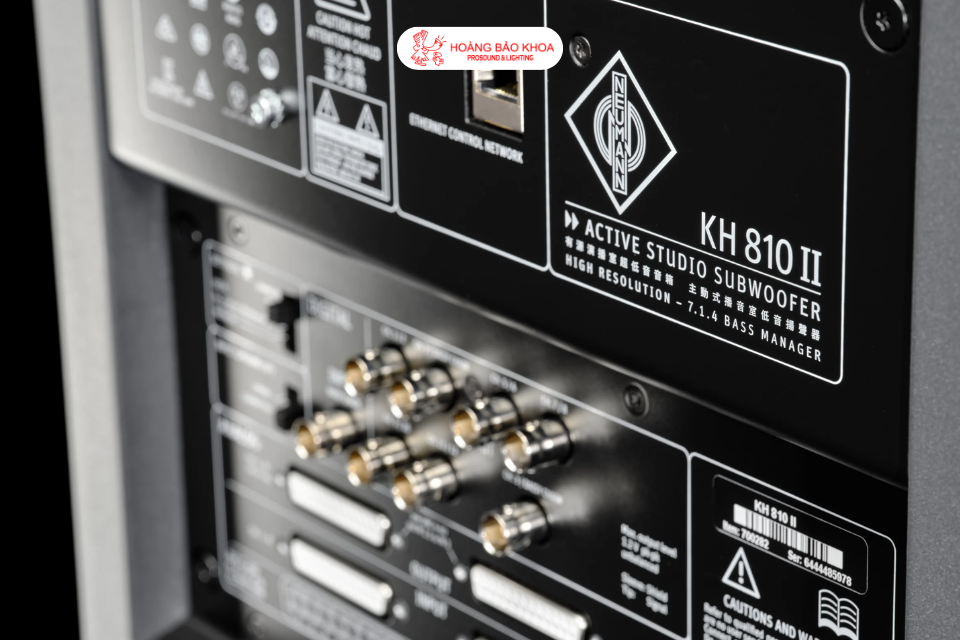

Neumann KH 810 Gen 2
The KH 810 Gen 2 offers performance similar to the KH 805 while adding multichannel support for immersive systems up to 7.1.4.
This model is designed to suit Dolby Atmos workflows.

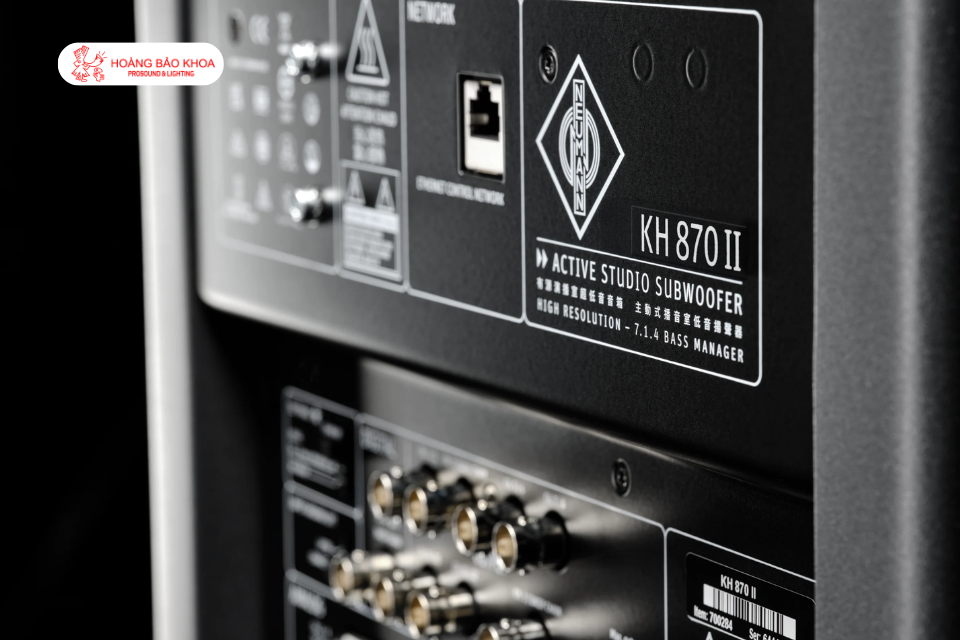

Neumann KH 870 Gen 2
The KH 870 Gen 2 is designed for large rooms and high-output systems such as the KH 420.
The subwoofer uses two 10-inch drivers and can provide up to twice the output of the KH 810. This model also supports advanced bass management and can handle immersive systems with up to 11 additional loudspeakers.
Connectivity of Neumann Subwoofers
Neumann Professional Studio Subwoofers provide both analog and digital connectivity for flexible system integration.
Many models are also available with AES67 support. This allows the entire system to be connected to an audio interface such as the Neumann MT 48 via a network cable.
In many cases, the entire monitor setup can be simplified through a single network connection.
Do You Really Need a Subwoofer for Studio Monitors?
Not every monitoring system necessarily requires a subwoofer.
However, if full-range monitoring is required and reliable decisions need to be made in the low end, a subwoofer completes the studio monitor system. It is particularly important for bass-heavy music genres or immersive formats.
Proper setup requires phase alignment, level matching, and suitable placement. With tools such as MA 1, this process can be automated so that the subwoofer and monitors operate as one unified system.
Experience the Neumann System at Hoang Bao Khoa
In addition to understanding the specifications and principles behind system setup, direct experience allows users to evaluate how monitors and subwoofers perform in a studio environment.
At hoang bao khoa, Neumann Studio is a space where customers can directly experience Neumann products under real studio conditions. This allows users to listen to and explore how Neumann Studio Equipment works together within a monitoring system.
Source: Neumann Homestudio Academy - Monitor Monday EP 1: How to Set Up Neumann Studio Monitors with a Subwoofer
