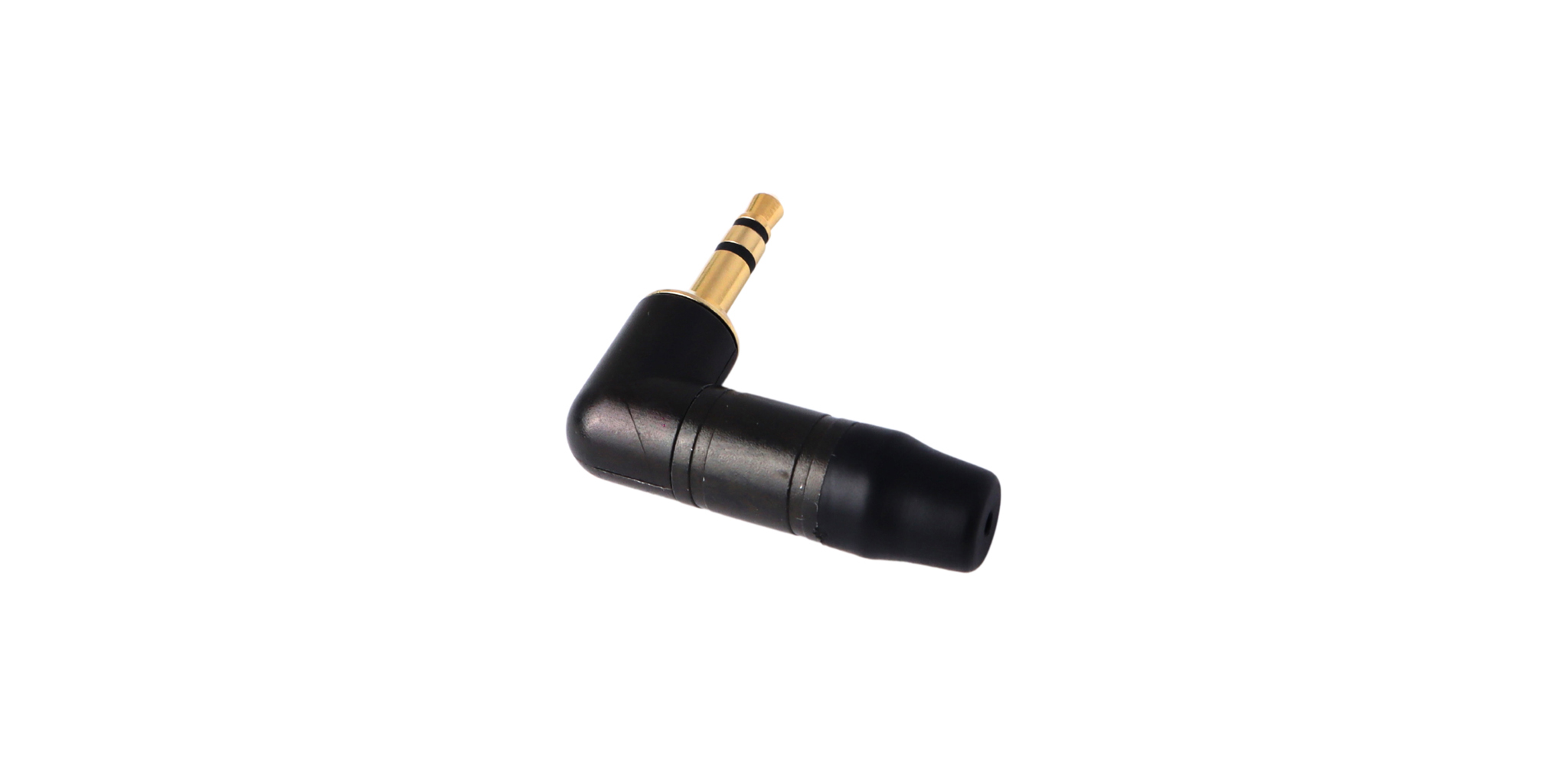

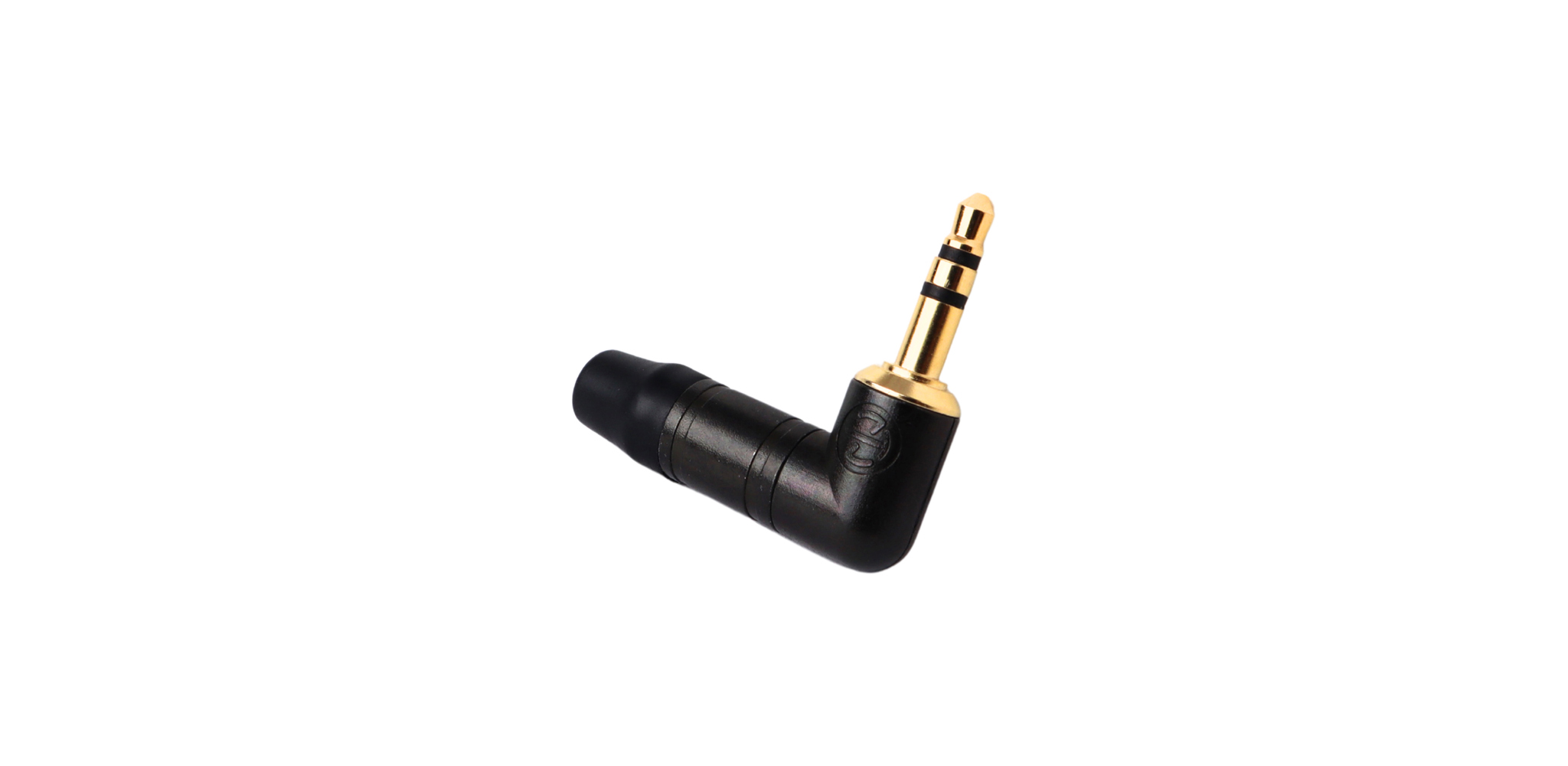

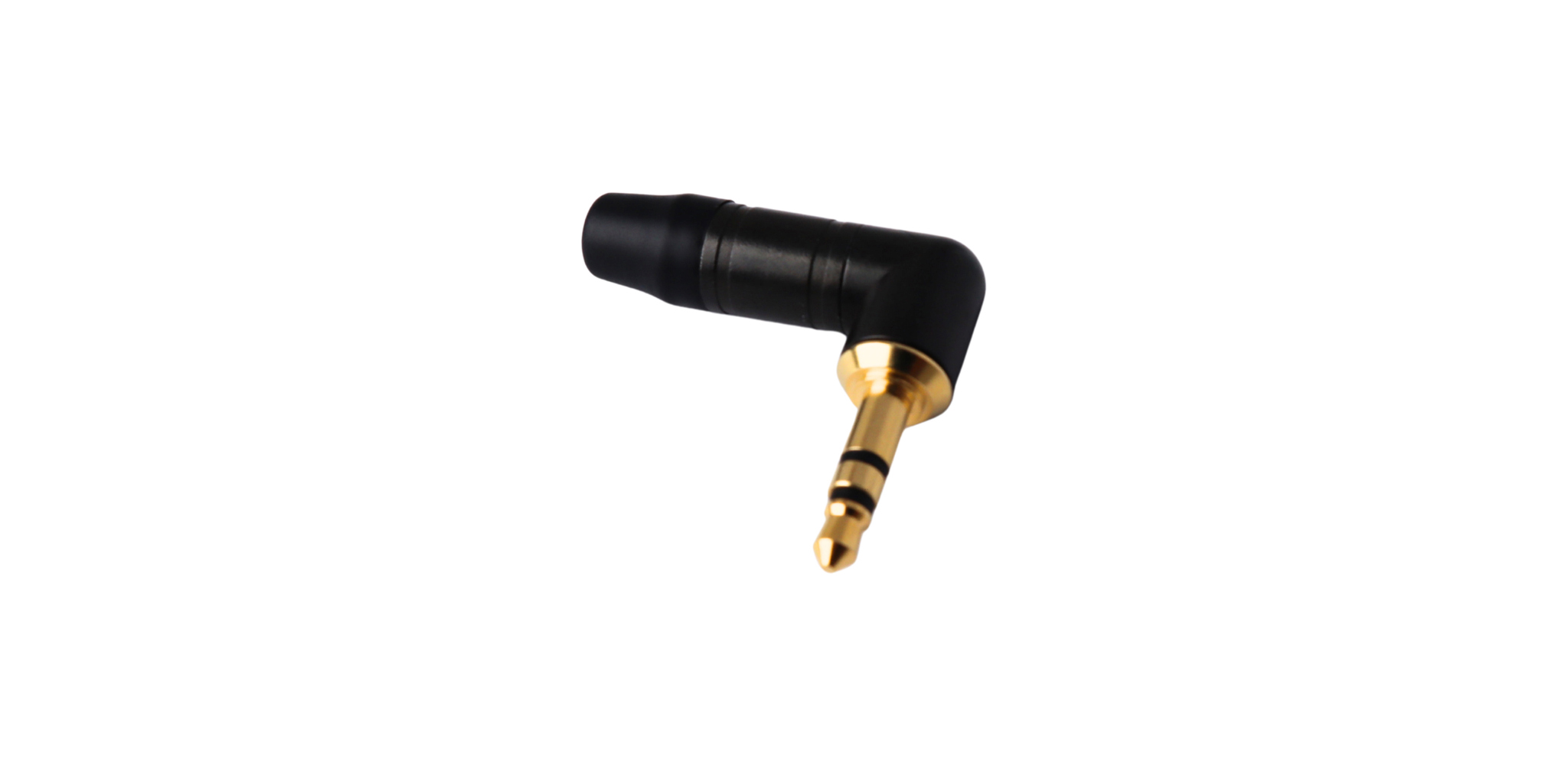

NTP3RC-B 3 pole 3.5 mm Right-Angle Stereo Plug Neutrik

Q: Does the company offer free shipping?

Free shipping for local order over $22. Oversea buyers will pay for shipping cost under Ex-work term.

Q: NTP3RC-B has a discount?

This price is the best to you now.

Q: Which brand does NTP3RC-B belongs to?

NTP3RC-B belongs to Neutrik . Neutrik provides the world's leading connectivity solutions: XLR, PowerCON, SpeakON, BNC, and Data jacks. Genuine Swiss quality, 24-month warranty, distributed by Hoàng Bảo Khoa (HBK).

Q: How long is the warranty of NTP3RC-B?

NTP3RC-B is 0 months of warranty.

Q: Does HoangBaoKhoa support for installment?

Yes, installment payment via credit card.

Product code: NTP3RC-B 542,621,864

4.67/5 in 3 times

$4.41

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

All metal housing - robust and reliable

Slim design - space saving

Chuck type cable clamp and rubber gland - excellent cable protection

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, black housing, gold contacts The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.

CERTIFICATE

Neutrik distributor certificate

Technical Information

Product
Title	NTP3RC-B
Connection Type	Plug
Gender	male

Electrical
Contact resistance	depends on mating connector m& OMEGA;
Dielectric strength	1 kVdc
Insulation resistance	> 2 GΩ (initial)
Rated voltage	<50 V

Mechanical
Cable O.D.	2 - 4.5 mm
Wiresize	0,22 mm²
Wiresize	24 AWG
Wiring	Solder contacts

Material
Bushing	Brass (CuZn39Pb3) + PU, black Cr
Contact plating	0.2 µm Au
Contacts	Brass (CuZn39Pb3)
Insert	Polyamide (PA 6.6 15 % GR)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Black chromium
Strain relief	Polyacetal (POM)

Environmental
Solderability	Complies with IEC 68-2-20
Temperature range	-20 °C to +65 °C

NTP3RC-B Neutrik Mini jack 3.5 mm neutrik Stereo jack 3.5 mm Jack neutrik
