The opticalCON QUAD cable connector accommodates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.
The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.
Features & Benefits
- Rugged 4-channel fiber optic connection system
- OpticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
- For Point-to-Point multichannel routing
- Innovative spherical shutter guarantees low maintenance
- Dust and water resistant according to IP65 in mated condition

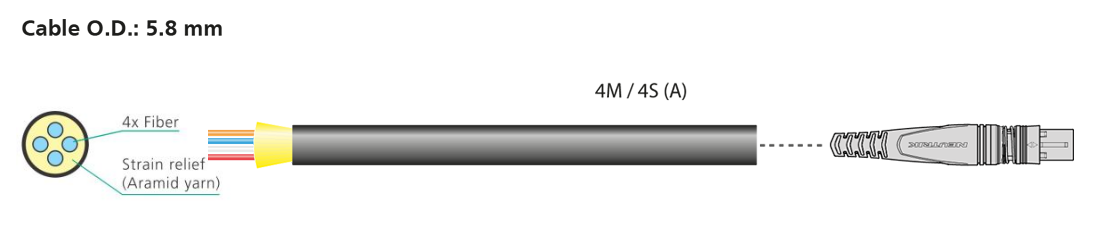

Mặt cắt cáp

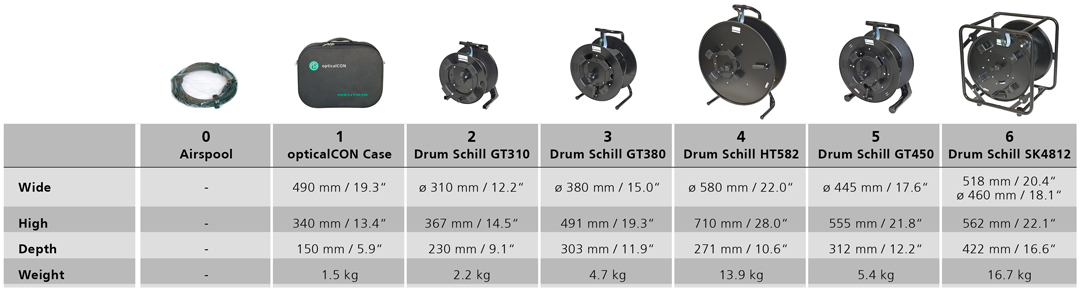

Tùy chọn đóng gói và tối đa. chiều dài cáp
Technical Information
| Title |
opticalCON QUAD |
| Gender |
male |
| Cable retention |
500 N |
| Insertion force |
< 45 N |
| Withdrawal force |
< 45 N |
| Lifetime |
> 5000 mating cycles |
| Wiresize |
|
| Locking device |
Push-Pull |
| Boot |
Rubber (EPDM) |
| Bushing |
Zinc diecast (ZnAl4Cu1) |
| Insert |
Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell |
Zinc diecast (ZnAl4Cu1) |
| Shell plating |
Black chromium |
| Strain relief |
Polyacetal (POM) (brass) |
| Temperature range |
-40 °C to +75 °C |
| Fiber type |
|
| Insertion loss |
< 0.45 dB / connection |
| Optical wiring |
ISO / IEC 11801 |
| Colour |
black, matte |
| Core diameter |
single mode 9 µm, multi mode 50 µm |
| Cladding diameter |
125 µm |
| Comment |
PUR |
| minimal bending radius |
5.8 cm |
| Number of fibers |
4 |
| Cable retention |
Aramid yarn |
| Weigth |
31 kg/km |
| Overal diameter |
5.8 mm |
