Product Description
Advanced Solution for High-Impact Event Lighting

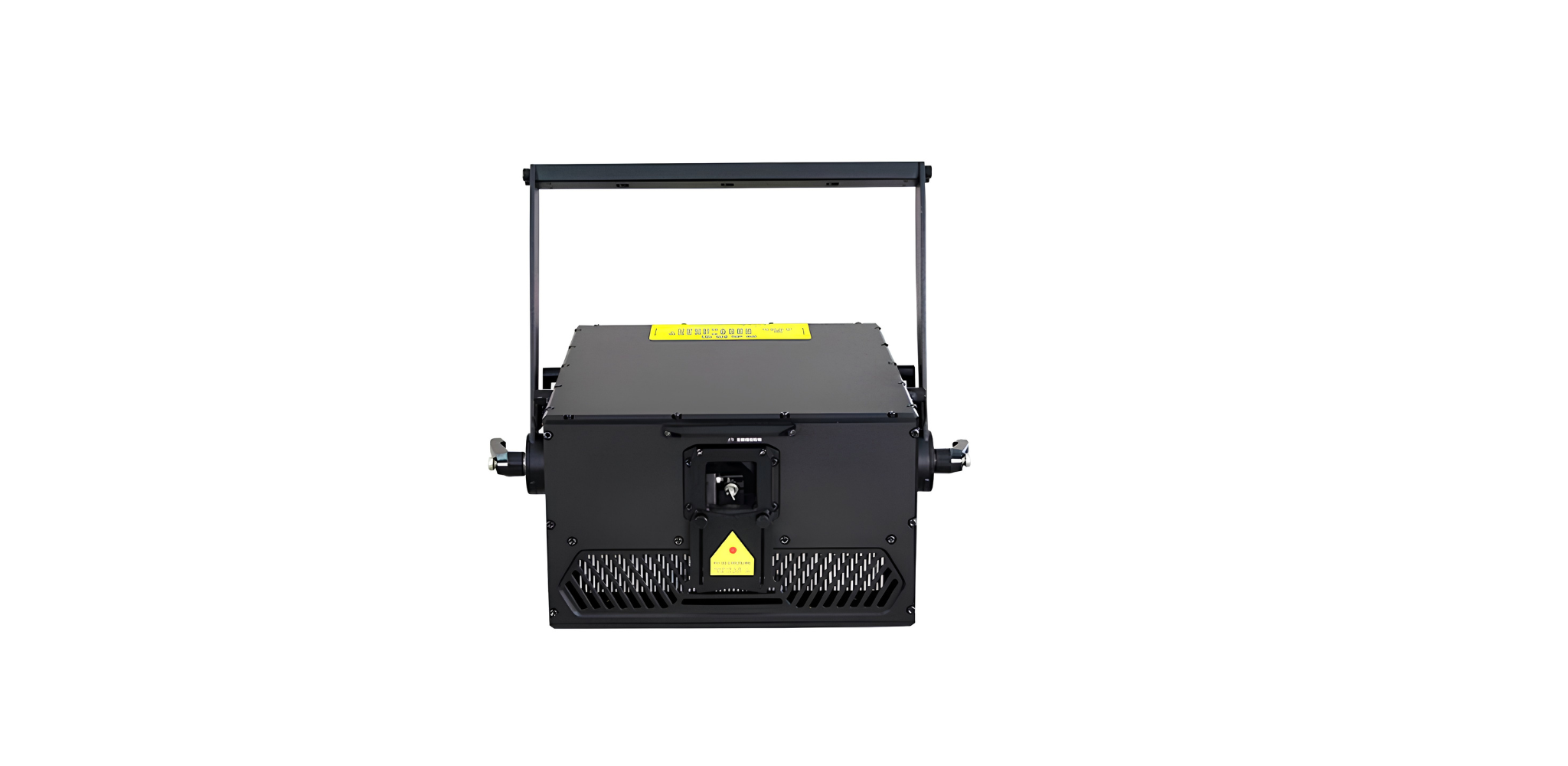

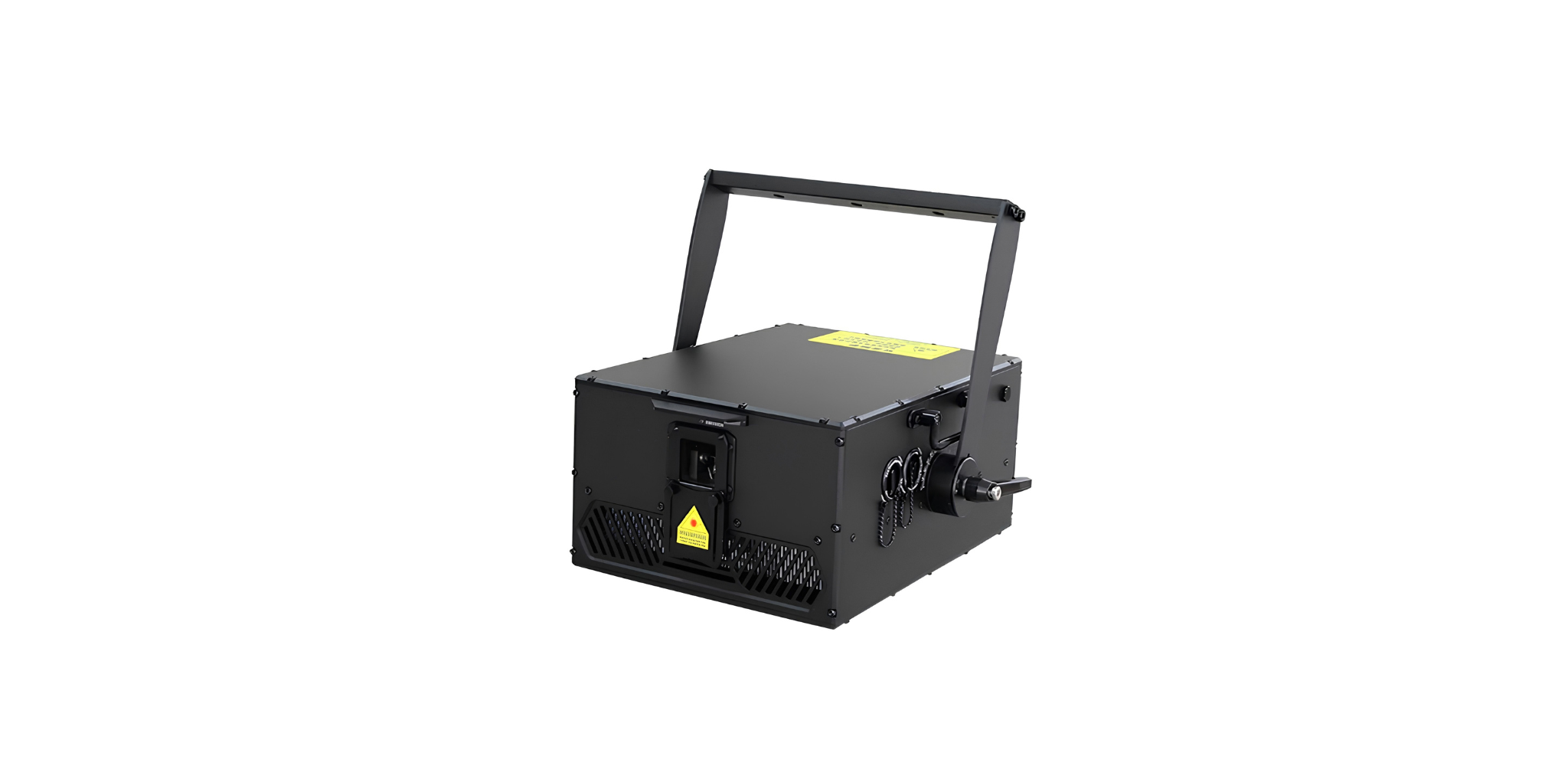

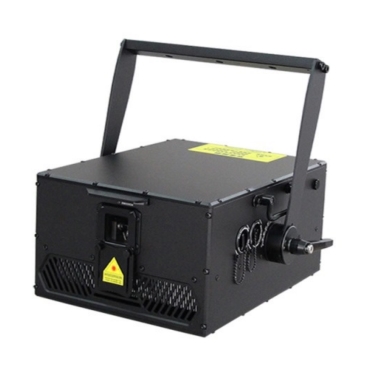

The S1 30–45W RGB Outdoor World Tour Show Laser is designed for professional concert organizers, event production companies and multimedia show integrators requiring high-output outdoor laser performance. It is intended for large venues and complex production environments where weather resistance, control, durability and precision are important.
Technical Excellence with Precise Control and Power Efficiency
The S1 is available with RGB laser output from 30W to 45W, using R635 red, G525 green and B455 blue laser sources with 100% RGB color mixing. Its high-speed scanner supports scan angles up to ±30° at up to 40KHz.
The product integrates original Pangolin FB4 hardware and supports DMX512, ArtNet and Ethernet connectivity for integration with professional show-control systems.
Versatile Applications in Outdoor Entertainment and Multimedia Installations
The S1 is intended for demanding applications including world tours, music festivals, stadium-scale productions, multimedia installations, live performances and advertising events. Its high-output, low-divergence beam is designed for long-distance projection and large viewing areas.
Product Advantages
Structural and System Integration Advantages
The product page describes the S1 enclosure as suitable for outdoor operation and specifies an operating temperature range of -20°C to 40°C. Its integrated FB4 controller and support for DMX512, ArtNet and Ethernet allow connection with existing production systems.
High Performance and Operational Efficiency for End Users
The S1 is designed to produce bright, well-defined RGB laser beams with low divergence. Its high-speed scanning system supports smooth beam movement, graphic projection and a variety of laser effects for professional live productions.
Use Scenarios
Outdoor Concerts and World Tour Event Integration
The S1 is intended for large outdoor concerts and touring productions requiring strong laser output across broad viewing areas. FB4 and DMX512 compatibility support integration with professional lighting and show-control systems.
Festival and Large Audience Multimedia Installations
For outdoor music festivals and large multimedia presentations, the S1 provides RGB laser effects, dynamic scanning and network-based control options for integration into large event infrastructures.
Technical Specifications
| S1-RGB45 |
R635-14W / G525-13W / B455-18W |
| S1-RGB40 |
R635-12W / G525-13W / B455-18W |
| S1-RGB30 |
R635-10W / G525-10W / B455-12W |
| Rated Voltage |
AC100–240V, 50/60Hz |
| Laser Color |
RGB, 100% color mixing |
| Power Consumption |
≤700W |
| Beam Diameter |
9 × 6.5 mm |
| Beam Divergence |
<1.0 mrad |
| Scan System |
40K high-speed scanner |
| Maximum Scan Angle |
±30° |
| Input Signal |
±5V |
| Modulation |
Analog |
| Integrated Hardware |
Original Pangolin FB4 |
| Demonstration Effect |
More than 3000 built-in patterns |
| Control Modes |
FB4, Auto, DMX512, ArtNet, Ethernet |
| IP Rating |
IP66 |

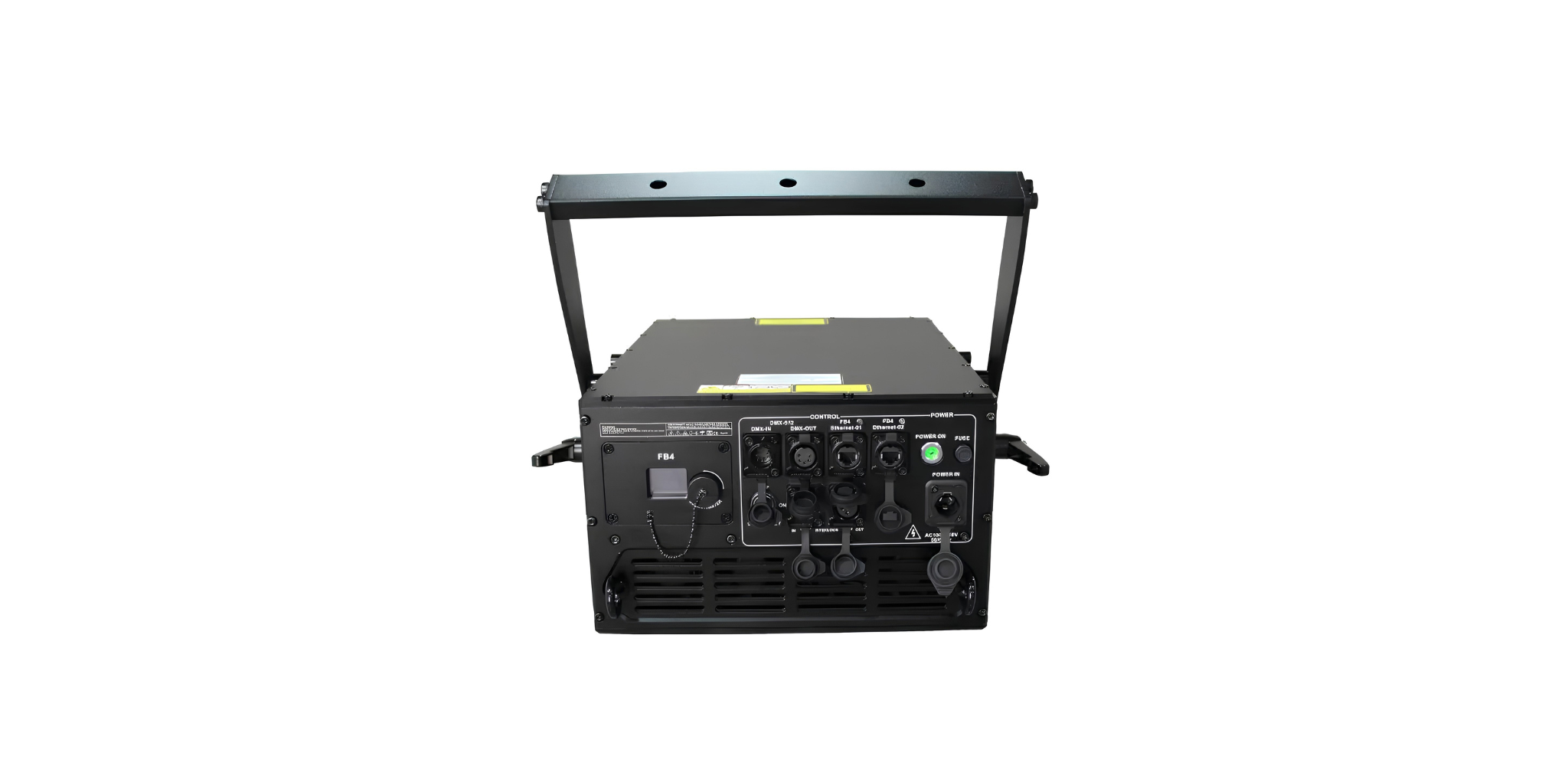

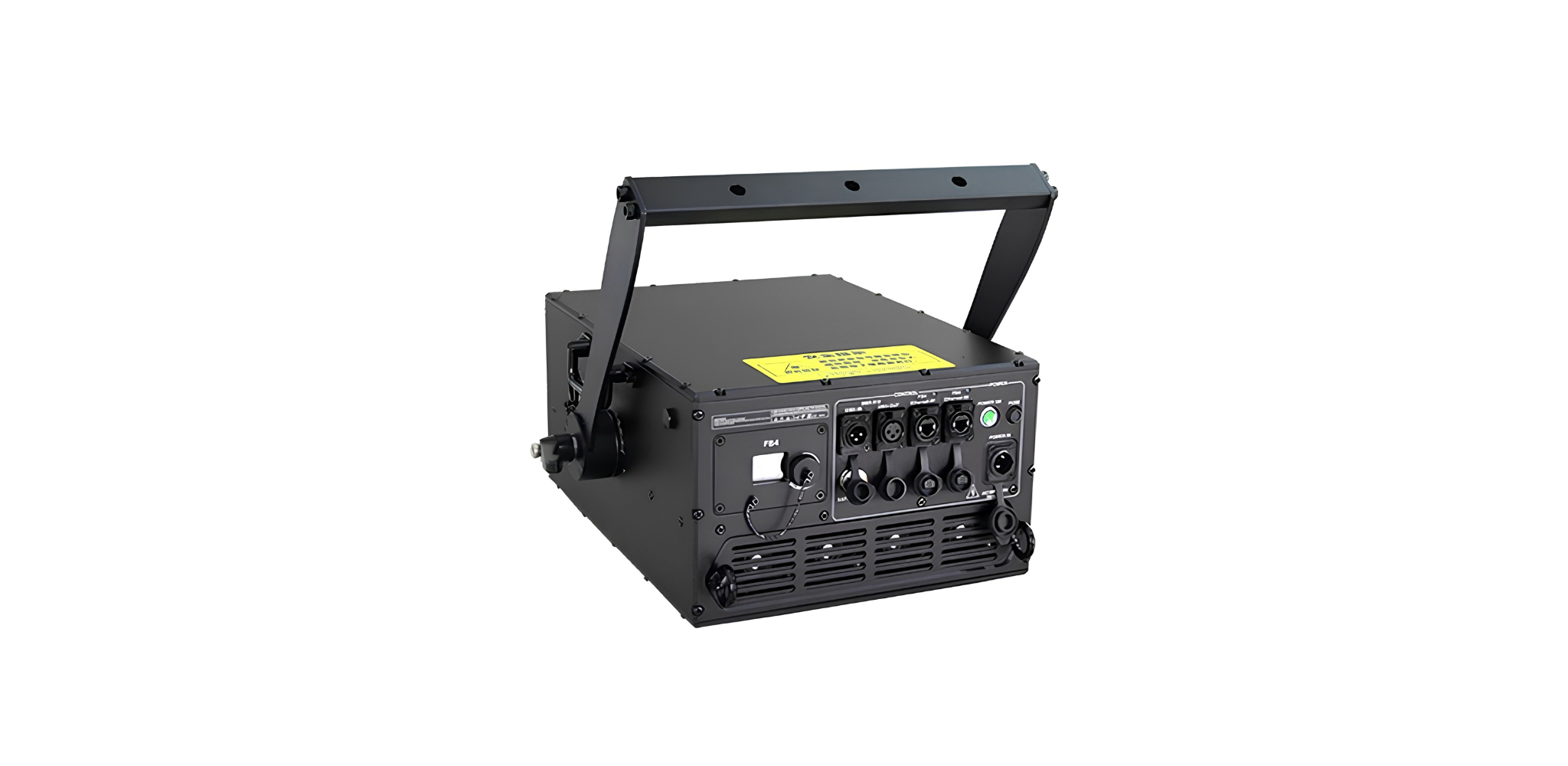

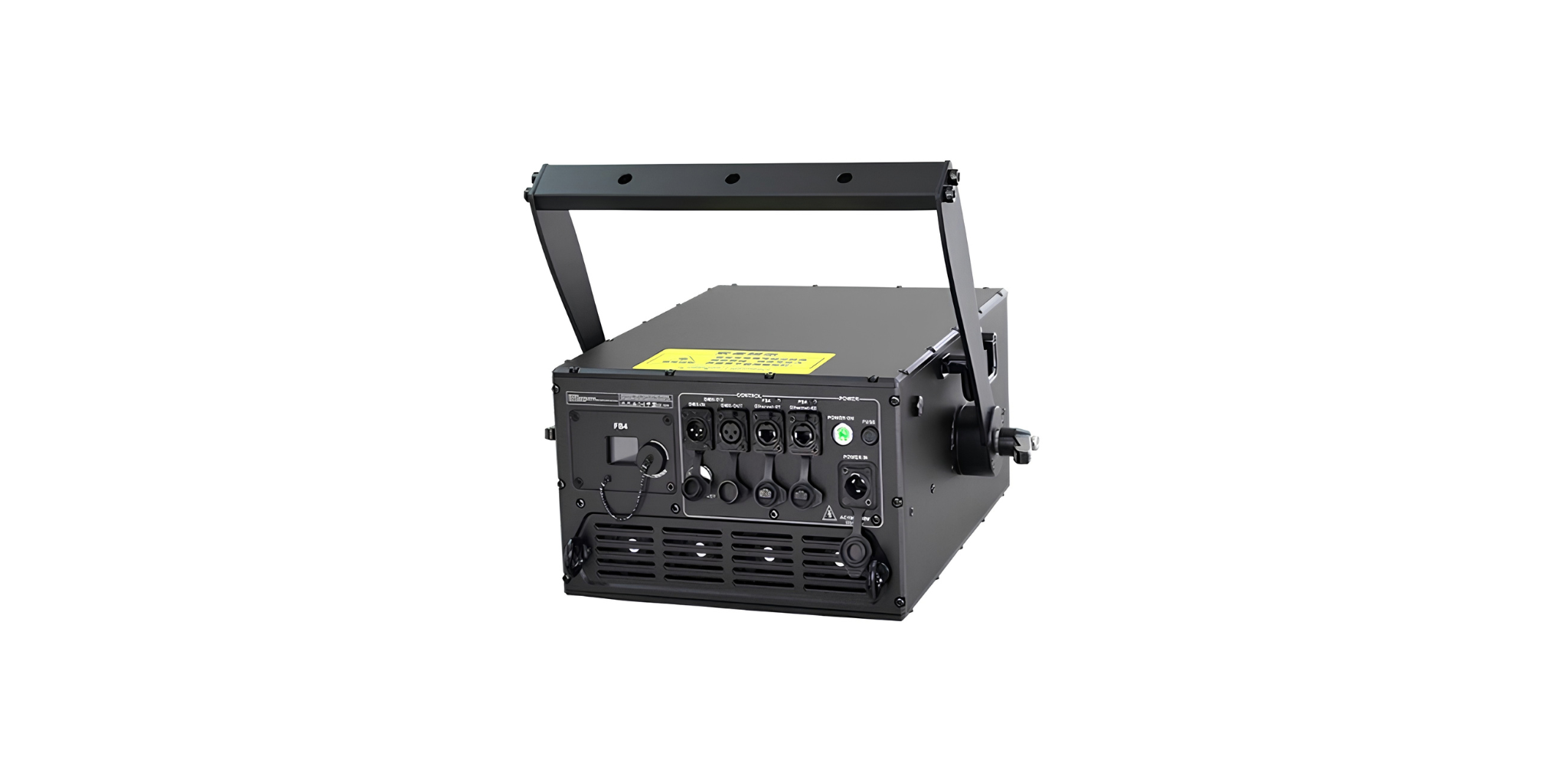

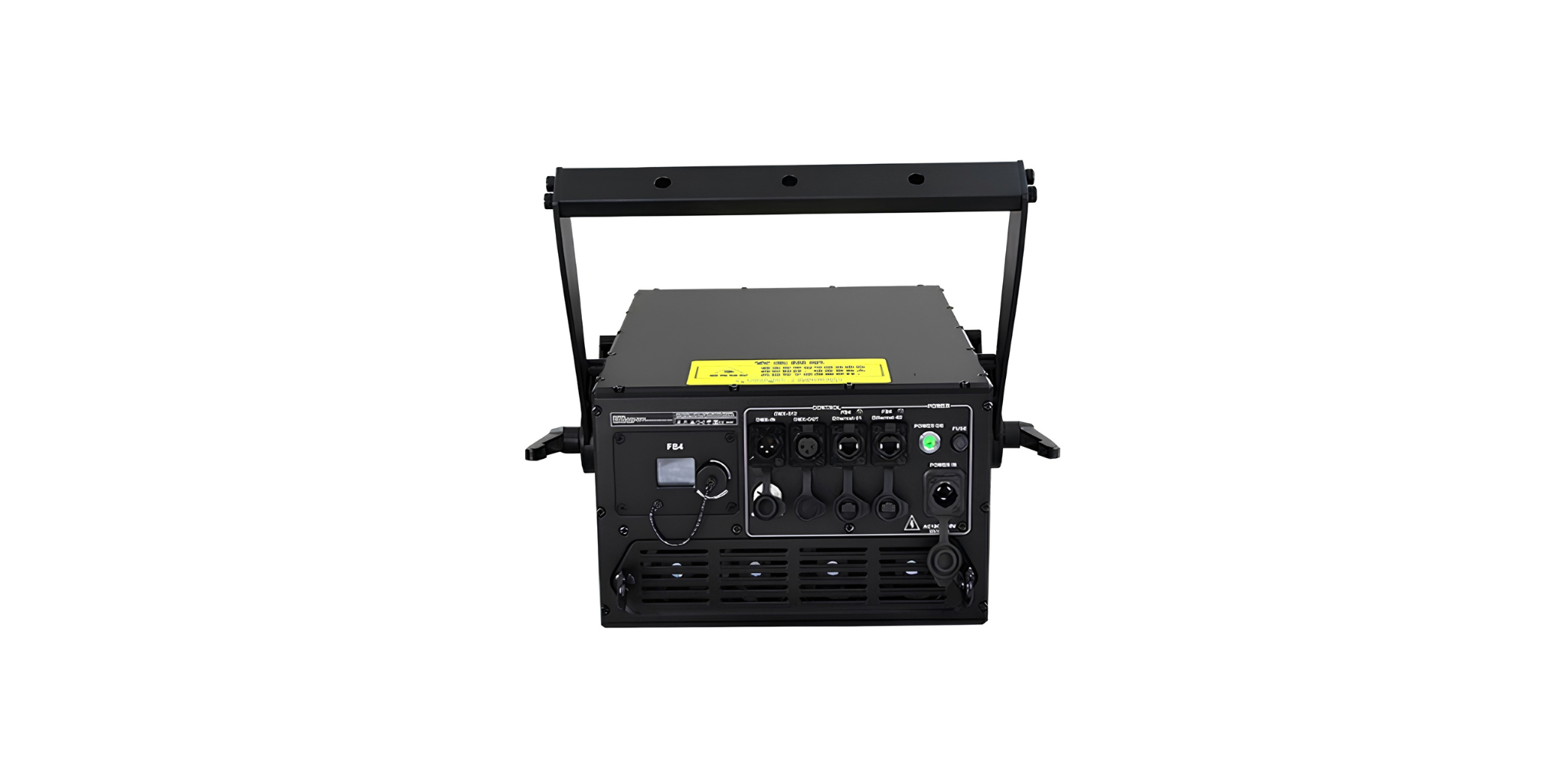

| Interfaces |
Waterproof power input, waterproof DMX input/output, waterproof Ethernet input/output |

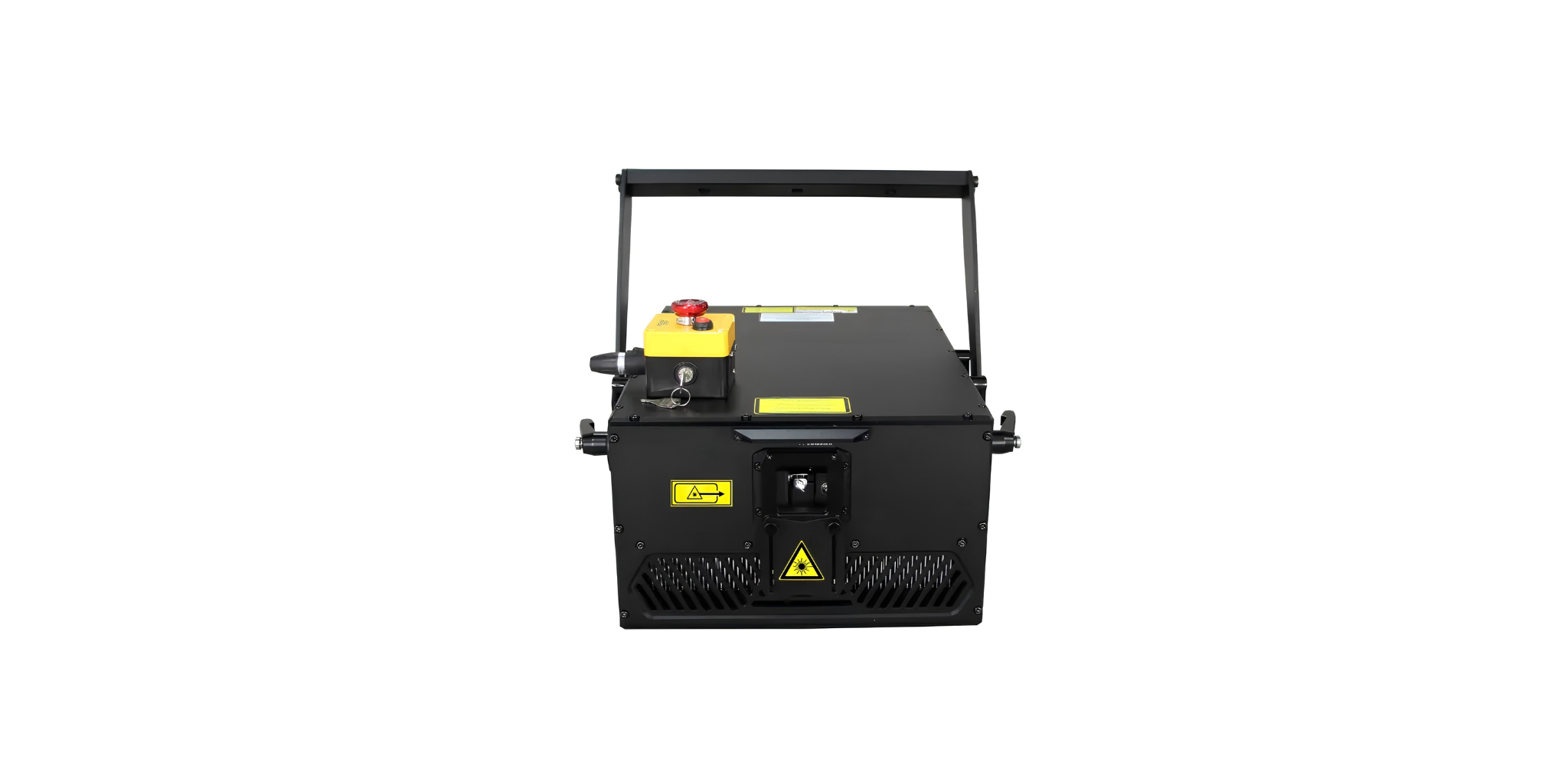

| E-Stop |
Optional |
| Working Environment |
-20°C to 40°C |
| Flight Case Dimensions |
65 × 62 × 45 cm |
| Applications |
Concerts, stadiums, advertising promotions, electronic music festivals, live performances, etc. |
| Net / Gross Weight |
26.5 / 52 kg |
| Laser Module |
FAC laser module with TEC cooling system |
Technical Parameter
| Model |
Item Name |
Laser Power |
| S1-RGB45 |
45W RGB Outdoor World Tour Show Laser |
R635-14W / G525-13W / B455-18W |
| S1-RGB40 |
40W RGB Outdoor World Tour Show Laser |
R635-12W / G525-13W / B455-18W |
| S1-RGB30 |
30W RGB Outdoor World Tour Show Laser |
R635-10W / G525-10W / B455-12W |
Why Choose Us?
- High-Quality Products: Laser lighting equipment designed for indoor and outdoor applications.
- Advanced Technology: RGB laser systems with professional visual-effect features.
- Customization Options: Solutions can be adapted to specific project requirements.
- Competitive Pricing: Products are supplied directly by the manufacturer.
- Professional Support: Technical assistance, product guidance and after-sales support are provided.
FAQ
What types of events is the S1 suitable for?
The S1 is intended for world tours, stadium concerts, large music festivals and other major outdoor events requiring powerful and durable laser displays.
Can the S1 be integrated with specific show-control systems?
Yes. Available control options include integrated Pangolin FB4 hardware, DMX512, ArtNet, Ethernet and Auto mode.
How is the S1 designed for outdoor operation?
The product is built with a weather-resistant enclosure and is specified for operation between -20°C and 40°C. The descriptive sections of the source refer to IP65, while the main product information and technical specification section state IP66.
What support is available for large-scale deployment?
The manufacturer provides technical specifications, flight-case dimensions, system setup guidance and configuration support for transportation, installation and system integration.
