Powered Subwoofer Turbosound TBV118L-AN

Q: Does the company offer free shipping?

Free shipping for local order over $22. Oversea buyers will pay for shipping cost under Ex-work term.

Q: TBV118L-AN has a discount?

This price is the best to you now.

Q: Which brand does TBV118L-AN belongs to?

TBV118L-AN belongs to Turbosound . Turbosound, a 48-year-old famous British speaker company founded by Mr. Tony Andrews

Q: How long is the warranty of TBV118L-AN?

TBV118L-AN is 24 months of warranty.

Q: Does HoangBaoKhoa support for installment?

Yes, installment payment via credit card.

TBV118L-AN Powered Subwoofer Turbosound

Product code: TBV118L-AN 594,389,909

4.67/5 in 3 times

$1,633.62

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

3,000-Watt

18" Powered Subwoofer

Klark Teknik DSP Technology

ULTRANET Networking

18 inch Powered Subwoofer with Klark Teknik DSP Technology and ULTRANET Networking

Shipping informations

Length

91.60 cm

Width

77.30 cm

Height

68.10 cm

Weight

46.52 kg

Official Distributor Certificate

Music Tribe distributor certificate

Product Features

Front loaded powered subwoofer for touring, portable and installation applications
3,000 Watt power featuring Klark Teknik Class-D technology
Klark Teknik Digital Signal Processing for total system control
ULTRANET digital audio networking connects to mixers and other sources
Carbon fibre loaded 18" neodymium low frequency driver
Dual voice coil design for high power capacity and extended low frequency output
Fully featured user interface with LCD display for ease of navigation
PC remote control software downloadable at turbosound.com
Low distortion bass reflex port design
18 mm (3/4") plywood enclosure with hard wearing semi matt black paint finish
Integral suspension hardware for efficient array configuration and aiming
Multiple internal M10 mount points allow eyebolt suspension in any orientation
Rugged powder coated perforated steel mesh grille
20 mm threaded pole mount to support satellite speaker
Durable handles for easy lifting and carrying
Mains input and link output on Neutrik powerCON* connectors
Designed and engineered in the U.K.

BERLIN TBV118L-AN

The TBV118L-AN is a compact powered single 18" 3,000-Watt front-loaded subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable and touring audio systems. Designed to work individually without a controller, the TBV118L-AN provides optimal performance for FOH, offstage fill, stereo in-fill or distributed fill applications in a wide range of venues including nightclubs, concert halls, houses of worship, and more.

Custom-Engineered Drivers

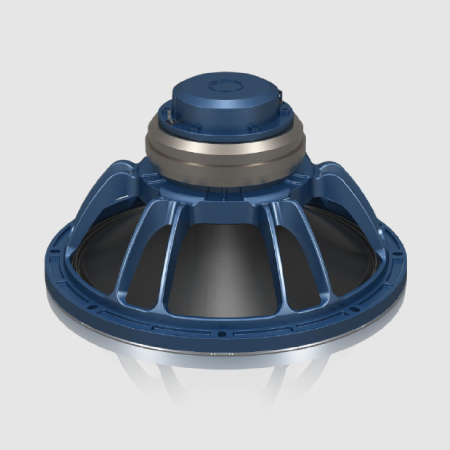

TURBOSOUND is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. The TBV118L-AN features a carbon fibre loaded 18" neodymium low frequency driver that utilises a dual voice coil design for high power capacity and extended low frequency output. For its size and operating bandwidth, the TBV118L-AN delivers extremely high and virtually distortion-free output for world-class low frequency performance that will stand the test of time.

Class-D – Massive Power, Perfect Sound

Equipped with a very efficient and lightweight KLARK TEKNIK Class-D power amplifier, the TBV118L-AN provides an impressive 3,000 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.

Onboard DSP

A high degree of control over the loudspeaker system's performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting for the utmost punch and definition at high output levels – and long-term reliability.

ULTRANET Connectivity

ULTRANET connectivity is provided by two locking etherCON* connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.

Intuitive User Interface

On the rear panel of the amplifier module, the user interface's LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, subwoofer integration and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisychaining more active subwoofers or for use with active loudspeakers. An onboard USB port provides access for remote control of the TBV118L-AN via a free PC computer software download from turbosound.com – as well as convenient DSP firmware updates.

Front Loaded Enclosure Design

Front loaded enclosures provide an optimal combination of low frequency extension, bass articulation and temporal accuracy for high impact sound reinforcement applications. The low distortion bass reflex port design utilised in the TBV118L-AN reinforces the bass musical instrument frequencies and on board DSP processing ensures an effective acoustic transition for use with TBV123-AN active line array elements. For low-frequency bass extension, the recommended cabinet ratio consists of one TBV118L-AN subwoofer per 3 TBV123-AN elements. For reverse cardioid subwoofer configurations, multiples of three TBV118L-AN enclosures are recommended with two front-firing enclosures and one rear-firing enclosure.

Plywood Construction

Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (3/4") plywood with a rugged powder coated perforated steel mesh grille backed with reticulated foam, a 20 mm threaded pole mount to support satellite speakers, and a durable handle for easy transport. The TBV118L-AN includes integral suspension hardware for efficient array configuration and aiming, plus multiple internal M10 mount points that allow eyebolt suspension in any orientation. Mains input and output link power connectors are Neutrik powerCON.

Acoustic Simulation Tools

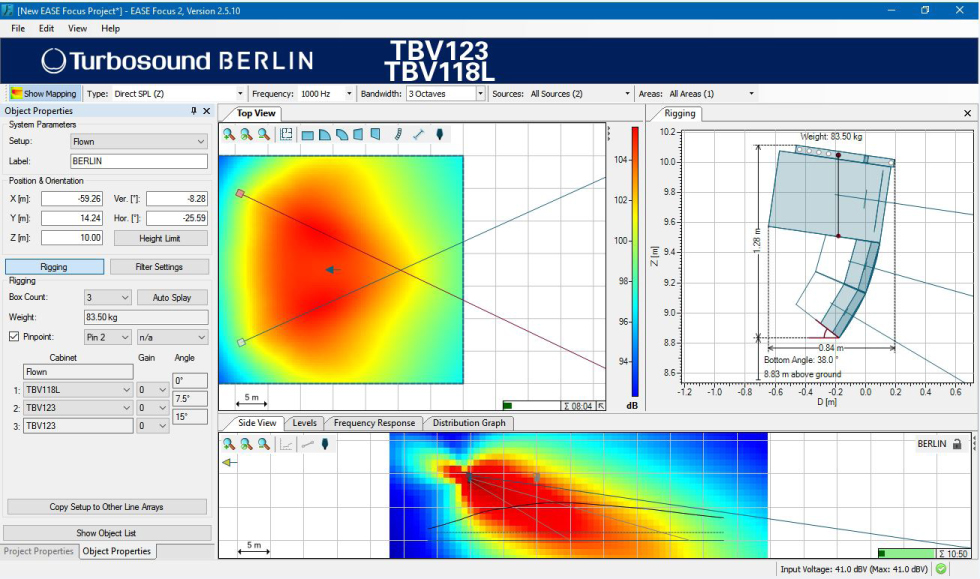

EASE GLL files are provided for EASE Focus Acoustic Simulation Software, which is available for free download. This allows accurate calculation of both acoustic coverage and suspension pick point selection for tilting and aiming the array at the desired angle.

Specification

Amplifier

Maximum output power	3000 W
Type	Class-D
Protection	Short circuit, thermal

Connectors

Input A / B	1 x combo jack/XLR, 1 x XLR Sensitivity: +1 dBu Input impedance: 40 kO balanced Maximum input level: +18 dBu
Ultranet input/link	2 x RJ45/Neutrik etherCON
Mains Supply	Neutrik powerCON† 20A and Link 15A

Controls

DSP	Rotary push-encoder and level control buttons for Process, Setup, Exit, Enter

User DSP Functions

Factory	EQ Presets Positioning, FBQ
Display	LCD 128 x 32, blue, backlit
Delay	0 - 300 ms
Equalisation	High and low shelving EQ 2 x parametric EQ
Limiter	Zero attack input limiter
Presets	20 total presets, 19 user-definable
Crossover	Low pass L-R 24 dB/oct
Protection	Lock-out function for all settings

Ultranet Digital Network

Digital processing	A/D conversion: 24-bit, 44.1 / 48 kHz sample rate
System	16 channels Signal, Latency: < 0.9 ms
Cabling	Cables: Shielded CAT5
Cable length	max. 246 ft / 75 m recommended

Power Supply

Current consumption	Input: 20A Max, Link output: 15A Max
Power consumption	180 W @ 1/8 max power for individual product
Voltage	USA / Canada/ Japan: 100-120 V~, 50/60 Hz UK / Australia / Europe / Korea / China: 220-240 V~, 50/60 Hz

Enclosure

Dimensions (H x W x D)	513 x 598 x 751 mm (20.2 x 23.5 x 29.6")
Net weight	38.5 kg (84.9 lbs)
Construction	18 mm (¾") plywood
Finish	Semi matt black paint
Grille	Powder coated perforated steel
Suspension hardware	Integral Suspension System and M10 x 4 points

Accessories

TBV123-FB	Fly Bar
TBV118L-RC1	Road case for 1x TBV118L-AN
TS-PC18B-3	Protective cover for 1x TBV118L-AN
TPOLE 60-20	60 cm Lightweight Steel Pole with M20 Screw Attachment
TPOLE 90-20	90 cm Lightweight Steel Pole with M20 Screw Attachment
