A high-quality vocal recording doesn’t just depend on an expensive microphone or an acoustically treated studio - it also relies on how well you control the signal, especially gain staging and dynamic range. With the Neumann MT 48, an audio interface designed to maximize dynamic precision and sonic accuracy, these two aspects become more transparent and intuitive than ever.
Understanding Gain Staging and Dynamic Range in Vocal Recording
Gain staging is the process of setting appropriate signal levels at each stage of the recording chain - from the microphone, preamp, and converter to the DAW - so that the signal is neither too weak (which increases noise) nor too hot (which causes clipping). In practice, a good vocal recording usually sits in the “sweet spot,” where the signal is strong and clear but still leaves enough headroom for unexpected peaks.
Dynamic range refers to the difference between the quietest and loudest parts of a signal before distortion occurs. A wide dynamic range adds depth, realism, and emotion to a vocal take. Conversely, poor gain staging or over-compression can make vocals sound flat and lifeless.
A common mistake among beginners is setting gain too high just to “hear more,” which causes clipping, or too low, resulting in a dull and noisy signal. Proper gain staging and dynamic range management are the keys to preserving the original nuance of a vocal performance.

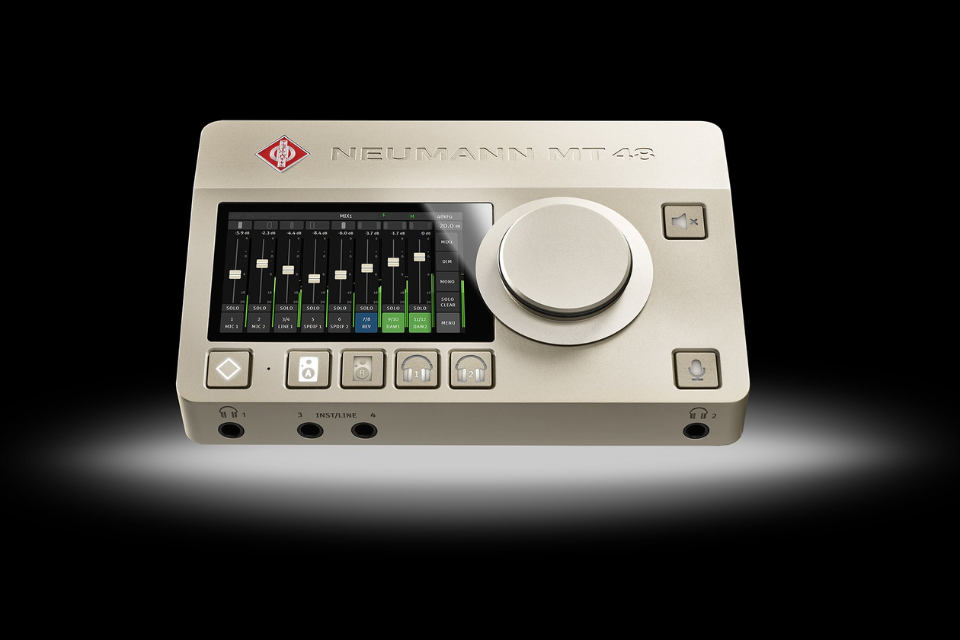

Technical Advantages of Neumann MT 48 in Gain and Dynamic Control
Built upon Merging Technologies’ world-class studio platform, the Neumann MT 48 stands out both in specifications and real-world performance when working with vocals.
Ultra-low noise preamps and wide headroom:
The MT 48 features premium analog preamps with up to +18 dBu of headroom, ensuring clean, distortion-free capture even during powerful vocal peaks. This generous headroom allows users to set gain comfortably without worrying about overload, letting vocals “breathe” more naturally than with many standard interfaces.
High-end 32-bit AD/DA conversion:
The MT 48’s 32-bit converters deliver an impressive 136 dB of dynamic range. This means every nuance - from a whisper to a belted chorus - is preserved without compression, distortion, or data loss. For high-fidelity vocal work such as film scoring, voice-over, or professional studio recording, this is a major advantage.
Touchscreen interface and intuitive workflow:
Its full-color touchscreen gives direct access to gain settings, metering, routing, and onboard DSP in real time. This visual clarity helps users “see” signal levels throughout the chain, making gain staging easier and more precise - no external software required.
Step-by-Step Gain Staging on MT 48 for Vocal Recording
Step 1: Mic placement and loudness check
Place the microphone about 15-20 cm from the singer, aimed directly at the source. Have the singer perform the loudest part of the song to test for peak levels. This ensures your gain setup won’t clip during the actual take.
Step 2: Adjust preamp gain on the MT 48
Increase gain until the average (RMS) level sits around -18 dBFS and peaks stay below -6 dBFS. This gives a strong yet safe signal with ample headroom for dynamic passages.
Step 3: Monitor through the internal mixer
Use the MT 48’s internal DSP mixer to monitor input and output levels. Avoid any red peaks. If needed, apply light compression on the monitor path (not the recording path) to help the performer hear more comfortably while preserving the natural dynamics of the recorded signal.
Step 4: Record and listen back
Do a short test take and listen critically. The MT 48’s near-zero latency monitoring ensures you’re hearing an accurate, real-time representation of the signal.
Tips for Maximizing Dynamic Range on MT 48
Leverage the wide preamp headroom:
Avoid recording vocals “too hot.” The MT 48’s headroom lets you record safely at moderate levels, retaining full detail for post-processing.
Use light compression on monitor mixes only:
Add gentle compression to the headphone mix so the singer can hear clearly, but keep the recorded track uncompressed. You can apply controlled compression later in your DAW.
Utilize onboard DSP tools:
The MT 48 includes high-quality EQ, compressor, limiter, and reverb modules. These let you shape your monitoring sound without affecting the raw signal - ideal for fast and flexible sessions.
Comparison with Other High-End Audio Interfaces
Against competitors like the RME Fireface UFX III, Apogee Symphony Desktop, or Universal Audio Apollo X, the Neumann MT 48 stands out with:
• True 136 dB dynamic range - higher than most in its class.
• Exceptionally clean preamps with wide headroom and ultra-low noise floor.
• A fully touch-based, software-light workflow optimized for professional use.
In real-world sessions, the MT 48 delivers a more “natural” and precise sonic character, staying true to Neumann’s philosophy of reproducing sound exactly as it is.
Recommended Vocal Studio Setup
For personal or semi-professional studios, an ideal setup would be: Neumann MT 48 + Neumann TLM 103 or U87 Ai microphone + Neumann NDH 30 headphones.
This trio provides a coherent signal path from capture to monitoring, giving you precise control over gain staging and dynamic range throughout the entire process.
Conclusion
Mastering gain staging and dynamic range is the foundation of professional vocal recording. The Neumann MT 48 not only provides outstanding precision in signal conversion but also allows users to fully perceive the natural depth and emotion of a performance.
If you’re seeking an audio interface that delivers studio-grade vocal processing with international standards of fidelity and reliability, the Neumann MT 48 is an investment worth making. Officially distributed by Hoàng Bảo Khoa in Vietnam, it comes with expert consultation and trusted warranty service to help you build the perfect recording setup.
