QUAD ARMORED OpticalCON Cable Neutrik

Product code: QUAD ARMORED      452
4.67/5 in 3 times
Neutrik
  • QUAD ARMORED
QUAD ARMORED

  • Price only applicable for overseas
  • Technical Support
  • Term of shipment: Ex-Works
  • Pick up at Hoang Bao Khoa LTD company
  • All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

OpticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
Rugged 4-channel fiber optic connection system
Dust and water resistant according to IP65 in mated condition
The stainless steel armoring of opticalCON ARMORED cable is enormously robust to resist extraordinary abuse. Even with the armoring, the cable remains flexible and easy to handle.

Official Distributor Certificate

The opticalCON QUAD cable connector accommodates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover.

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on a drum, or air spooled.

Features & Benefits

  • opticalCON X-TREME cable for demanding applications like touring / rental or outdoor broadcast
  • opticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
  • Offers a cut-proof and rodent-resistant double-jacket, glass-yarn armored cable construction
  • Rugged 4-channel fiber optic connection system
  • For Point-to-Point multichannel routing
  • Innovative spherical shutter guarantees low maintenance
  • Dust and water resistant according to IP65 in mated condition

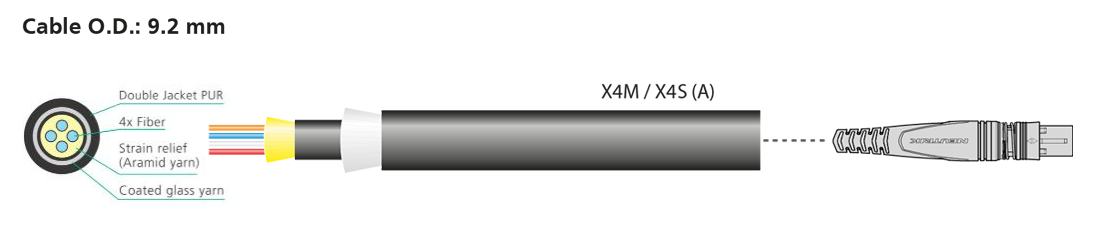

Cable cross section

opticalCON QUAD X-TREME - cable cross section

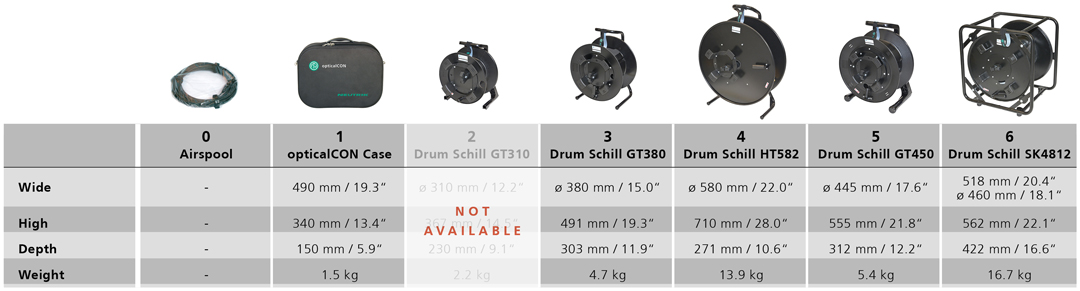

Packaging options and max. cable length

opticalCON-DRUM-Packagin---013456

opticalCON QUAD logo

opticalCON QUAD logo

Technical Information

Product
Title opticalCON QUAD X-TREME
Gender male
Mechanical
Cable retention 500 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime > 5000 mating cycles
Wiresize
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing Zinc diecast (ZnAl4Cu1)
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Polyacetal (POM) (brass)
Environmental
Temperature range -40 °C to +75 °C
Optical
Fiber type
Multimode PC
Singlemode PC
Insertion loss < 0.45 dB / connection
Optical wiring ISO / IEC 11801
Mobile cable
Colour black, matte
Core diameter single mode 9 µm, multi mode 50 µm
Cladding diameter 125 µm
Comment PUR
minimal bending radius 9.2 cm
Number of fibers 4
Cable retention Aramid yarn
Weigth 82 kg/km
Overal diameter 9.2 mm
Outer shield coated glass yarn
