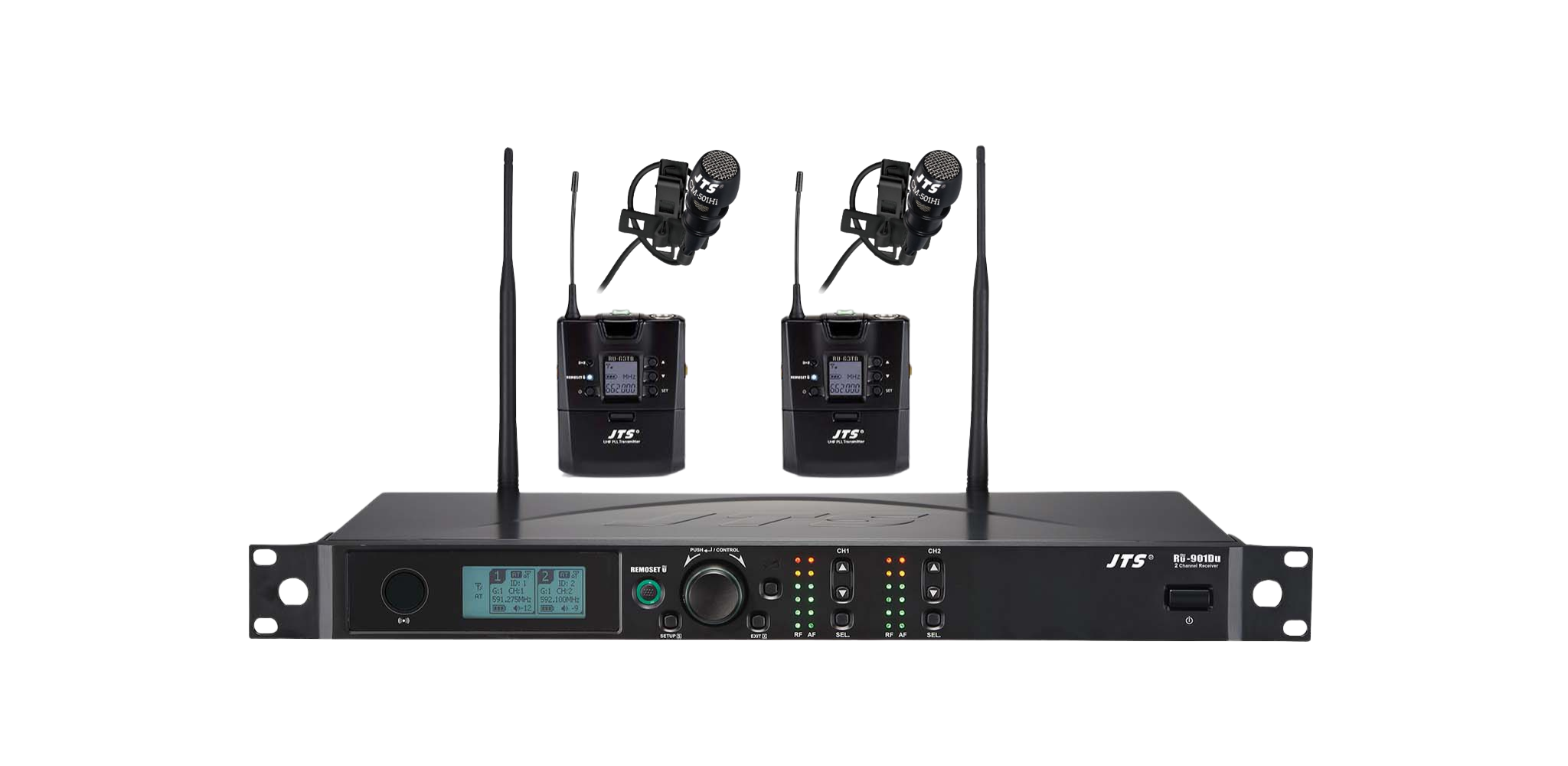

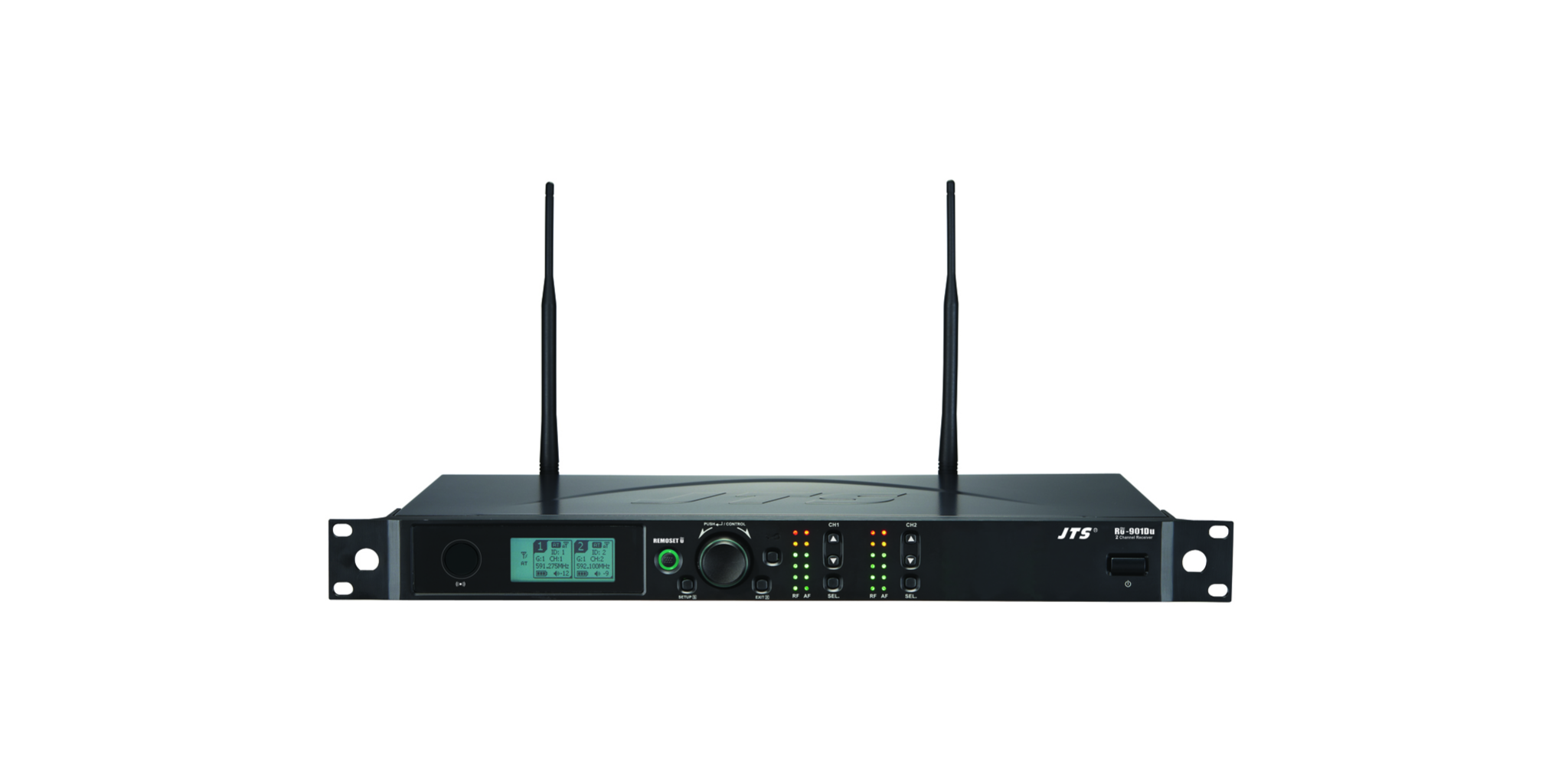

RU-901Du is a full rack dual channel version of RU-901G3. RU-901G3 is the 3rd generation true diversity system. It inherits the reliability in electronic circuit design and mechanical design of the legendary US-901. To cope with the development of the technology it features function. It synchronizes a transmitter with data of frequency, gain control, ID and so on by pushing a button. Scan function is also provided.
Integral Antenna and Power Cascade Feature.
SPECIFICATIONS
|
Frequency Preparation
|
PLL Synthesized Control |
| Carrier Frequency Range |
UHF 470~960 MHz |
| Frequency Setting |
Remoset U Ultrasonic |
| Receiving Mode |
True Diversity |
| Bandwidth |
36MHz |
| S/N Ratio |
> 105dB |
| T.H.D |
<0.6% @ 1KHz |
| Sensitivity |
-95dBm, S/N>80dB |
| CMRR |
>80 dB |
| Audio Frequency Response |
50Hz~18KHz±2dB |
| Antenna |
BNC (F) |
| Antenna Bosster Power |
DC12~15V/100mA |
| Display |
LCD |
| Display Contents |
Group, Channel, Frequency, Battery Status, Antenna A/B, AF Meter(LED BAR), RF Meter (LED BAR) |
| Controls |
Power ON/OFF, Group, Channel, Frequency, Audio Level, Lock-on, Volume, Output Pad, Frequency Scan (ON/OFF) |
| Audio Output Level |
Ref:±22.5KHz Dev@1KHz Toneψ6.3 Phone Jack:-10dBV XLR Jack:-4dBV(Line)、-24dBV(MIC) |
| AF Output Impedance |
600& OMEGA; |
| Squelch |
Pilot Tone & Noise Mute |
| Output Connector |
Balanced XLR Socket X1 / Unbalanced φ6.3mm PHONE JACK x1 |
| Power Supply |
DC12~15V/500mA |
| Dimension (m / m) |
485mm(W)*45mm(H)*260mm(D) |
| Notes |
Actual product specifications may vary depending on region. |

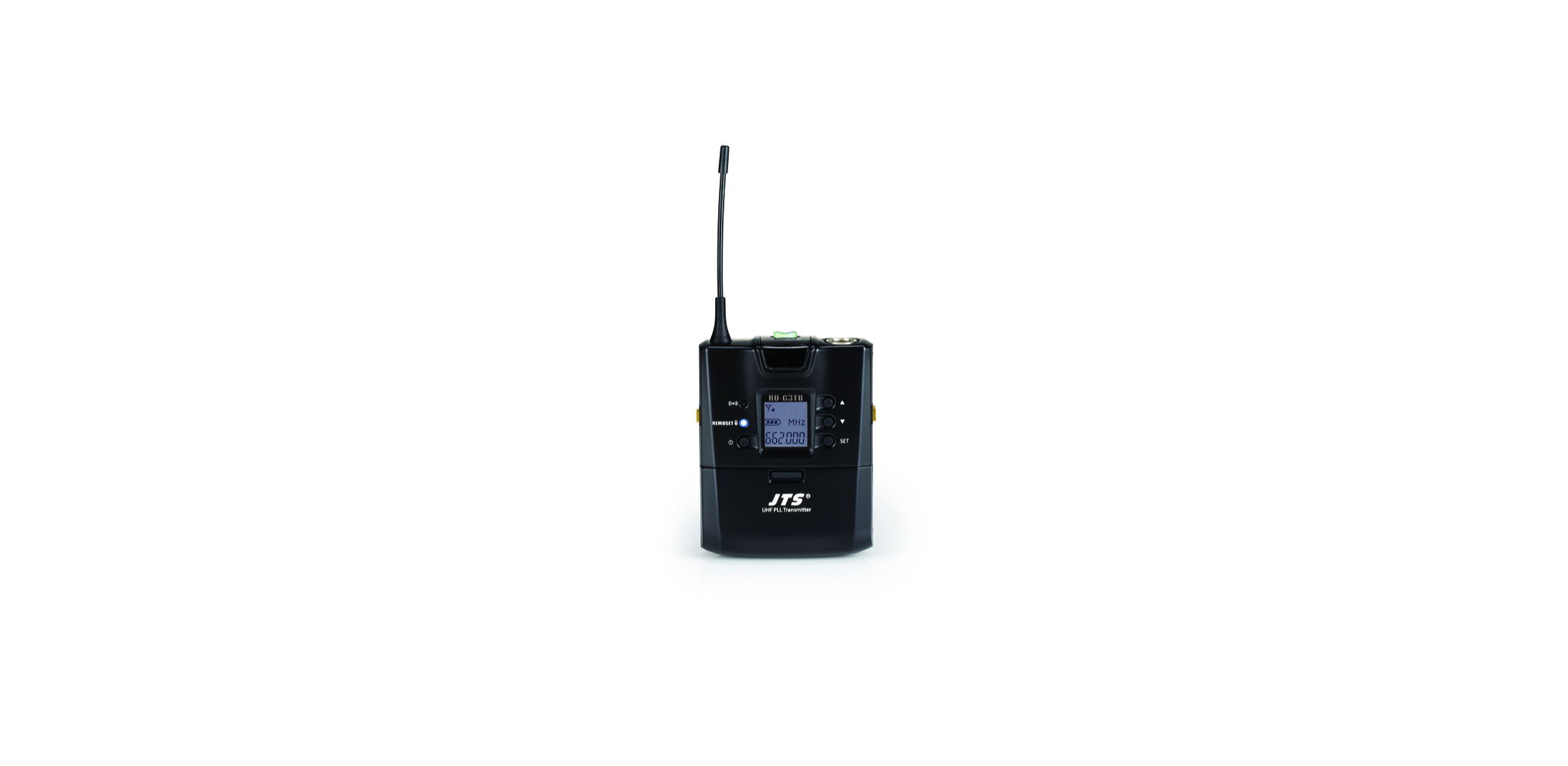

* Phase-locked Loop (PLL) synthesized tuner.
* Powered by 2 x AA batteries with 12 hrs. average battery life.
* Equipped with 4 Pin Mini XLR connector.
* LCD display with channel and battery life indicator, ID number.
* The “lock-on” function prevents tampering and RF interruption.
* Extended dynamic range and smooth frequency response.
* Noise mute and tone-key squelch.
* Compatible with Guitar cable and wireless instrument microphones.
SPECIFICATIONS
| Frequency Preparation |
PLL Synthesized Control |
| Carrier Frequency Range |
UHF 470~960 MHz |
| Frequency Setting |
Remoset U Ultrasonic |
| RF Outputs |
Low/High |
| Stability |
<±10KHz@ Fc |
| Frequency Deviation |
±48KHz |
| Spurious Emissions |
<-50dBc |
| Display |
LCD+LED |
| Input Connector |
MINI XLR |
| Controls |
Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode |
| Battery |
UM3, AA x2 |
| Slot-in Charging |
Yes |
| Dimensions |
62(W) x 80.3(H) x 22.6(D) |
| Notes |
Actual product specifications may vary depending on model and region. |

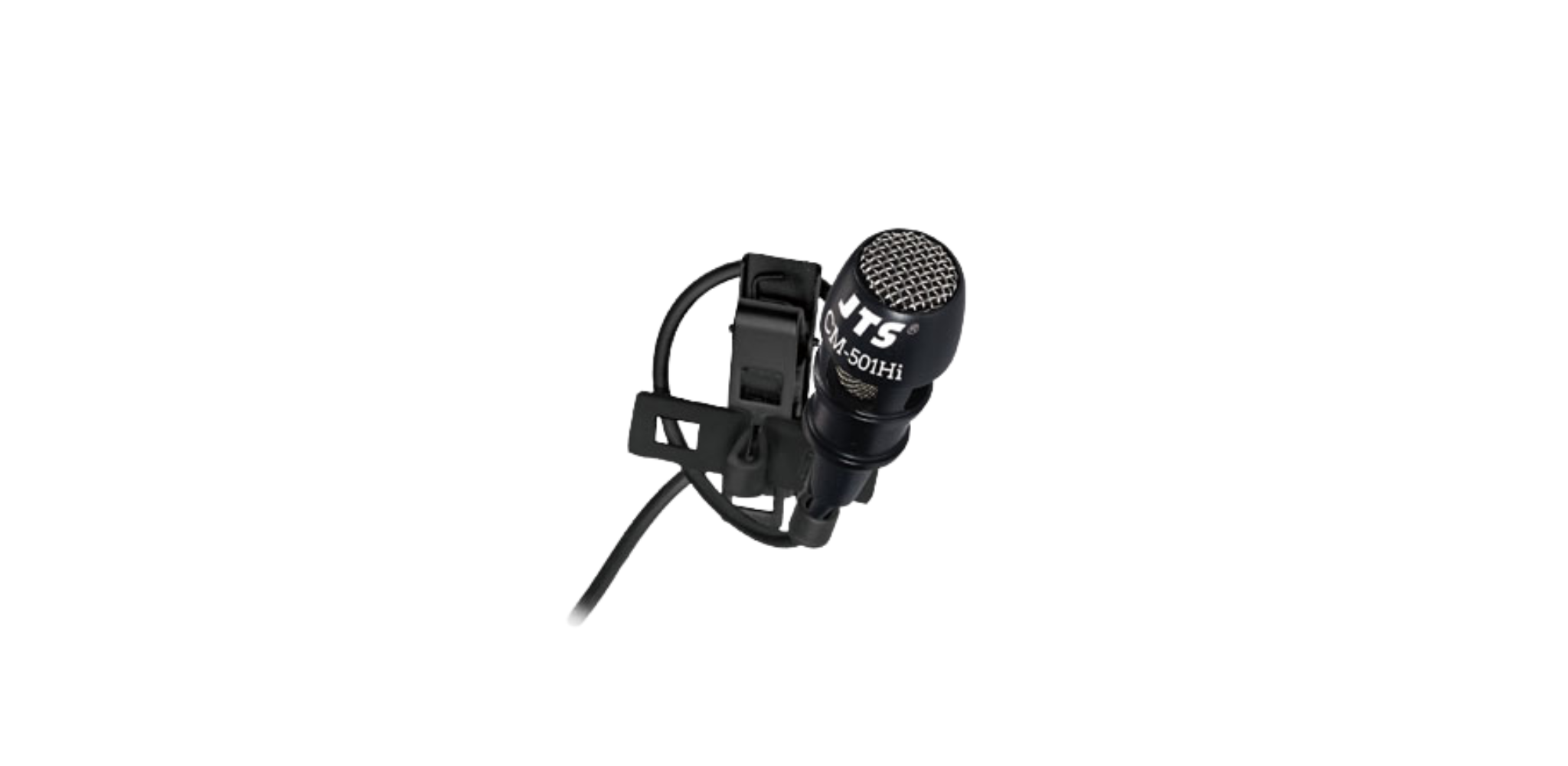

Specifications
| CM-501Hi |
| Type |
Uni-directional Condenser |
| Frequency Response |
100 to 15,000Hz |
| Polar Pattern |
Cardioid |
| Output Level(at 1,000Hz) |
-54±3 dB* (2mV) *0dB=1V /μbar |
| Impedance |
Rated impedance is 3.7k& OMEGA; |
| Max. SPL for 1%THD |
115dB |
| Standard Operating Voltage |
5Vdc |
| Operation Voltage Range |
3~10 Vdc |
| Current consumption |
Max. 0.5mA |
| Output Connector |
TA4F |
| Net Weight |
21.5g |
