Features

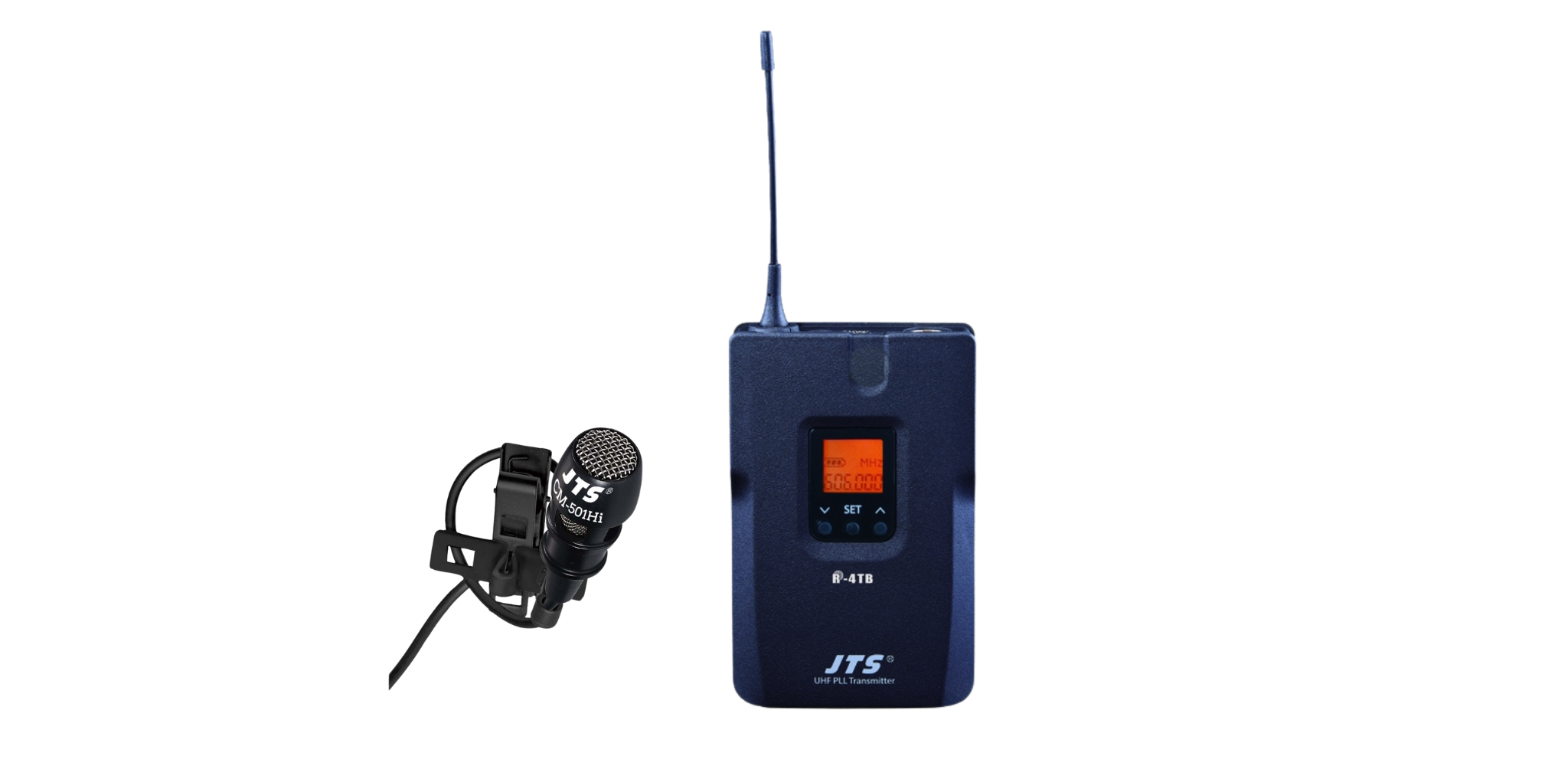

R-4TB
- 2400 to 3000 selectable frequencies
- Preset 15 groups each of up to 63 compatible channels
- Phase-Locked Loop (PLL) synthesized tune
- Extended dynamic range and smooth frequency response.
- Adjustable transmission power between Low and High
- The panel Lock-On function prevents tampering and RF interruption
- Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.
- NEWEST FEATURE: It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.
The

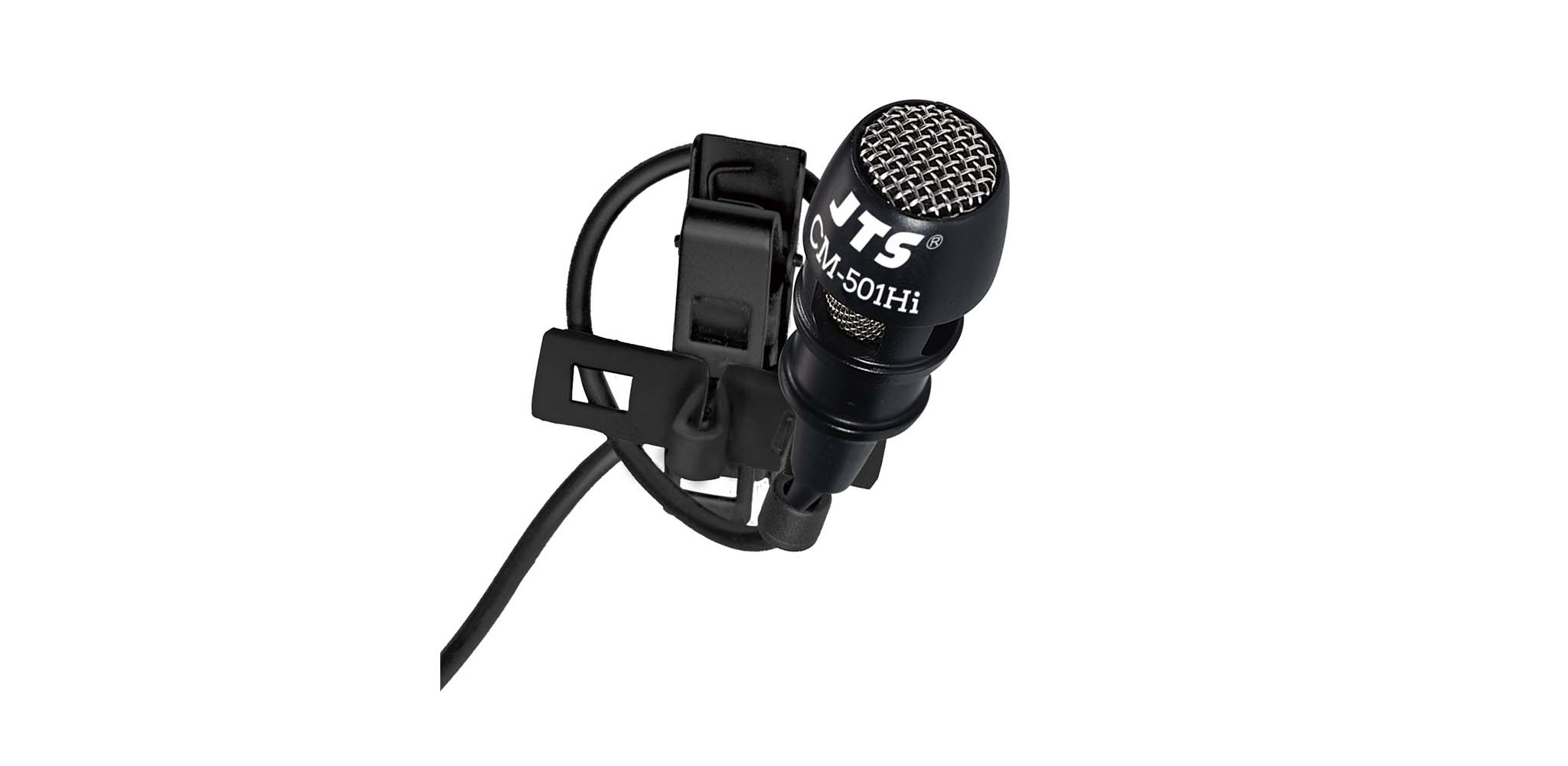

CM-501Hi deploys a high sensitivity capsule with unidirectional pick up pattern. It provides maximum gain before feedback. Wide frequency response and dynamic range assure excellent sound reproduction. The latest clip set, CLP-258, provides versatile application. Single and dual
microphone pick up are at your choice. CLP-258 assures optimal picking up for different dressings.
Specification
R-4TB
|
Frequency Preparation
|
PLL Synthesized Control
|
|
Carrier Frequency Range
|
UHF 470~960 MHz
|
|
Bandwidth
|
108MHz Wideband
|
|
RF Outputs
|
Low / High
|
|
Stability
|
< ±10KHz
|
|
Frequency Deviation
|
± 48KHz (Peak)
|
|
Chassis
|
Plastic
|
|
LCD Display
|
Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
|
|
Controls
|
Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
|
|
Output Connector
|
4P Mini XLR
|
|
Spurious Emissions
|
<-50 dBC
|
|
Audio Frequency Response
|
50Hz ~ 18k Hz
|
|
Battery
|
UM3, AA x2
|
|
Dimensions
|
62.3mm (W) x97.5mm (H) x20mm (D)
|
|
Weight
|
75g
|
|
Notes
|
Actual product specifications may vary depending on model and region.
|
CM-501Hi
| CM-501Hi |
| Type |
Uni-directional Condenser |
| Frequency Response |
100 to 15,000Hz |
| Polar Pattern |
Cardioid |
| Output Level(at 1,000Hz) |
-54±3 dB* (2mV) *0dB=1V /μbar |
| Impedance |
Rated impedance is 3.7kΩ |
| Max. SPL for 1%THD |
115dB |
| Standard Operating Voltage |
5Vdc |
| Operation Voltage Range |
3~10 Vdc |
| Current consumption |
Max. 0.5mA |
| Output Connector |
TA4F |
| Net Weight |
21.5g |
