The Neumann MCM (Miniature Clip Mic System) is a close-miking system specifically designed for acoustic instruments. Featuring a compact capsule, flexible gooseneck and instrument-specific mounting clips, MCM allows precise microphone positioning and stable placement while capturing direct sound in both studio recording and live performance environments.

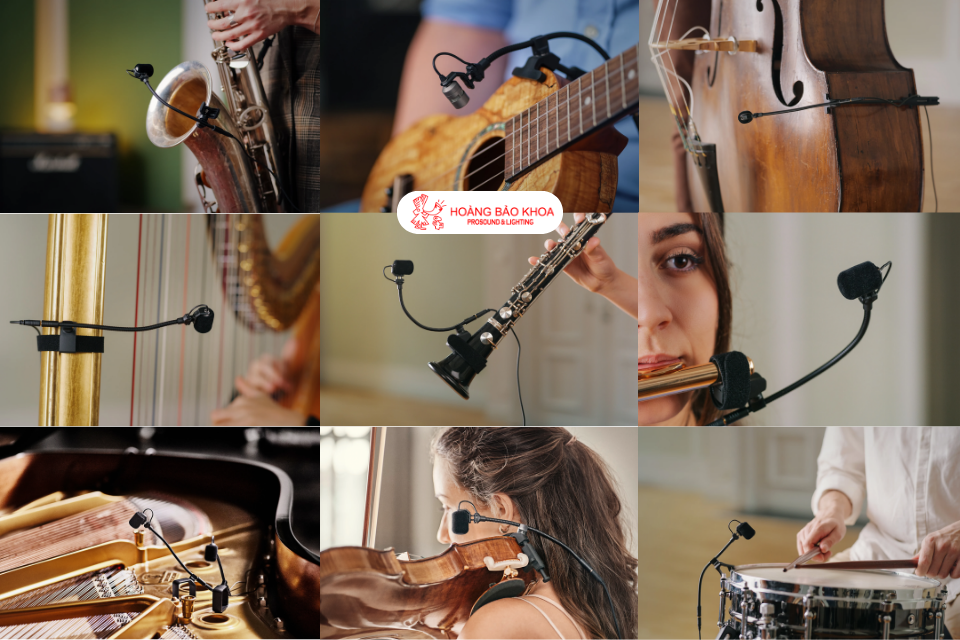

What Is the Neumann MCM Instrument Microphone System?
Unlike conventional Microphones positioned on external stands, the Neumann Instrument microphones in the MCM system attach directly to an instrument using dedicated mounting clips. This design helps maintain a consistent microphone distance and angle, even when performers move or change position during a performance.
The system has a modular construction comprising a capsule, gooseneck, mounting clip, connection cable and output stage. Individual components can be replaced, allowing users to configure the system according to the instrument and application.

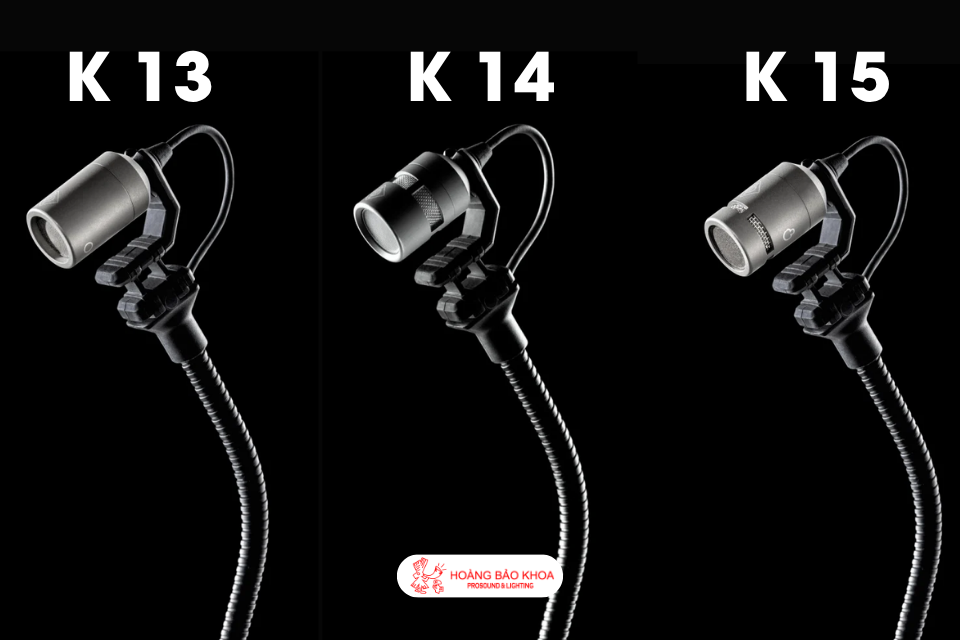

Capsule Design and Sound Reproduction
One of the key features of MCM is its layered electret capsule design, developed to deliver natural, balanced and consistent sound reproduction.
The system offers interchangeable capsules with different polar patterns:
- KK 13: Omnidirectional, capturing sound from all directions.
- KK 14: Cardioid, focusing on sound from the front while reducing sensitivity to sound from the rear.
- KK 15: Supercardioid, providing more focused pickup of the direct sound source and improved off-axis rejection.
KK 13 and KK 14 address different recording requirements, while KK 15 expands the system's options for applications that require greater directionality. The KK 14 capsule can handle sound pressure levels of up to 153 dB SPL, making it suitable for high-output instruments.

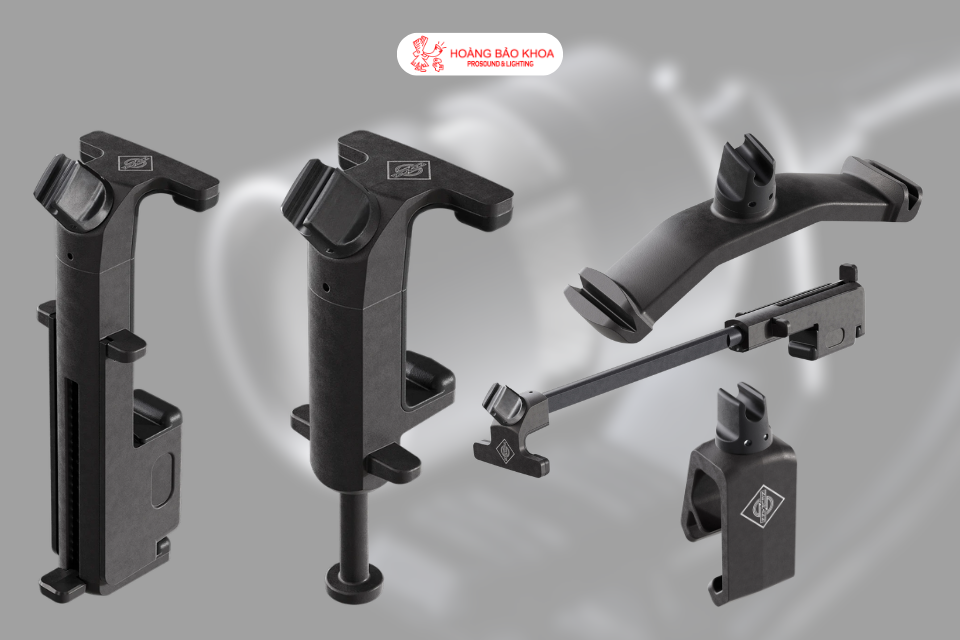

Instrument-Specific Clips for Flexible Microphone Placement
MCM includes a range of mounting clips designed for different instrument types. This is a major part of the system's practicality in both recording and live performance.
Examples include:
- MC 1: For violin, viola and mandolin.
- MC 2: For cello.
- MC 5: For woodwind instruments such as flute, clarinet, oboe and bassoon.
- MC 6: For trumpet, trombone, saxophone and selected percussion applications.
- MC 7: For snare Drums, toms and similar percussion instruments.
- MC 8: A magnetic clip for piano and grand piano.
- MC 9: For guitar, ukulele, dobro and acoustic bass.
Combined with a gooseneck that can be rotated and locked into position, the system allows users to position the capsule close to the sound source without bulky microphone stands. The mounting mechanisms are designed to minimize contact with and impact on the instrument's surface.

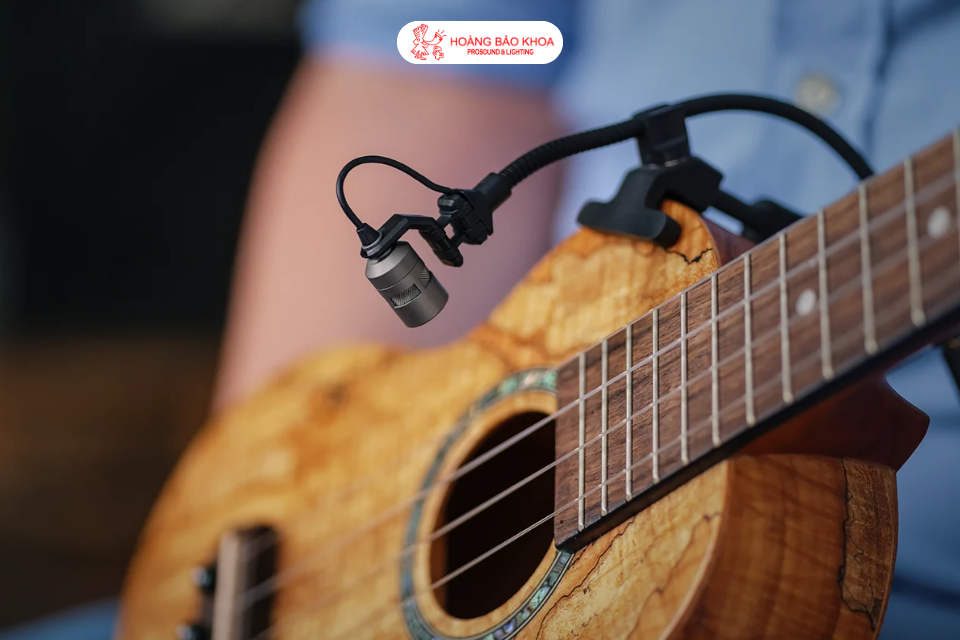

Why Is Neumann MCM Suitable for Instrument Recording?
When a Microphone is positioned farther away from an instrument, the recorded signal often contains a combination of direct sound and room reflections. With MCM, the capsule can be positioned closer to the source, increasing the proportion of direct sound in the recording and reducing dependence on room acoustics.
The stable mounting position also helps maintain consistent signal capture when performers change posture or move. This is particularly useful for live performances, stage recording and situations where a compact, flexible setup is essential.
