NC5MXX 5 pole male XLR cable connector Neutrik

Product code: NC5MXX      1,139,515
4.67/5 in 3 times
Neutrik
  • NC5MXX
NC5MXX

$5.9
In stock
ship note
Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details
  • Price only applicable for overseas
  • Technical Support
  • Term of shipment: Ex-Works
  • Pick up at Hoang Bao Khoa LTD company
  • All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy

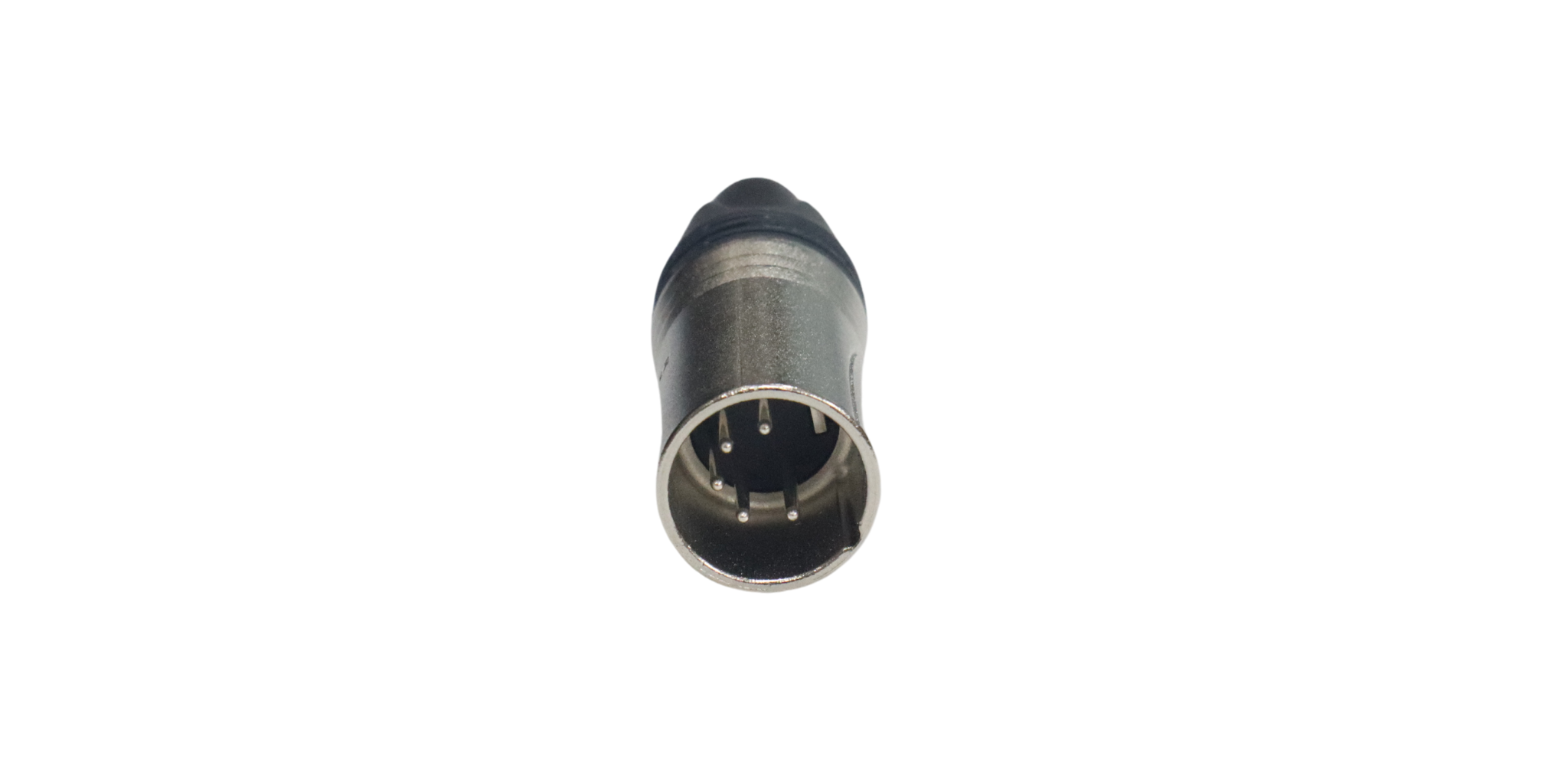

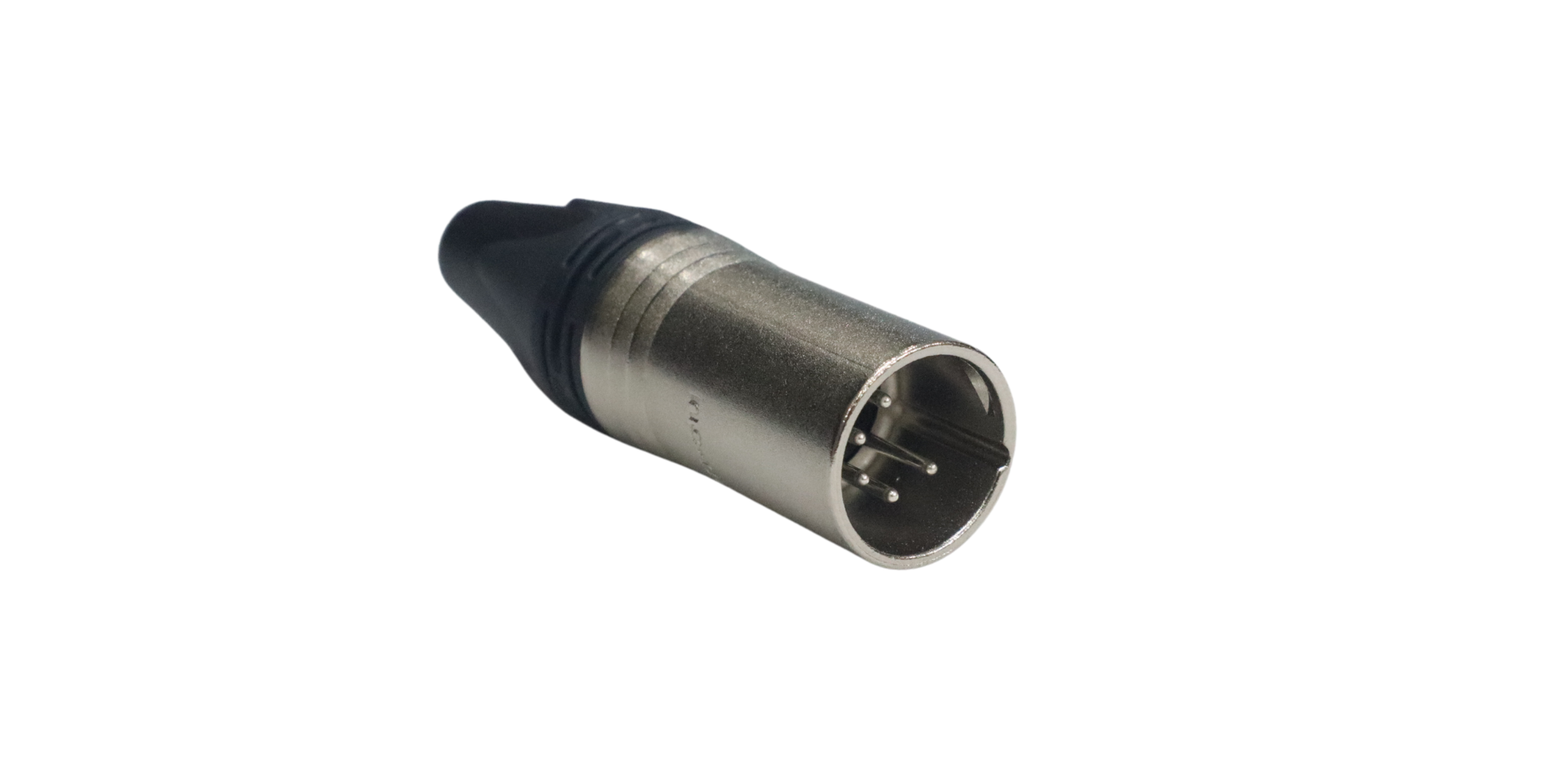

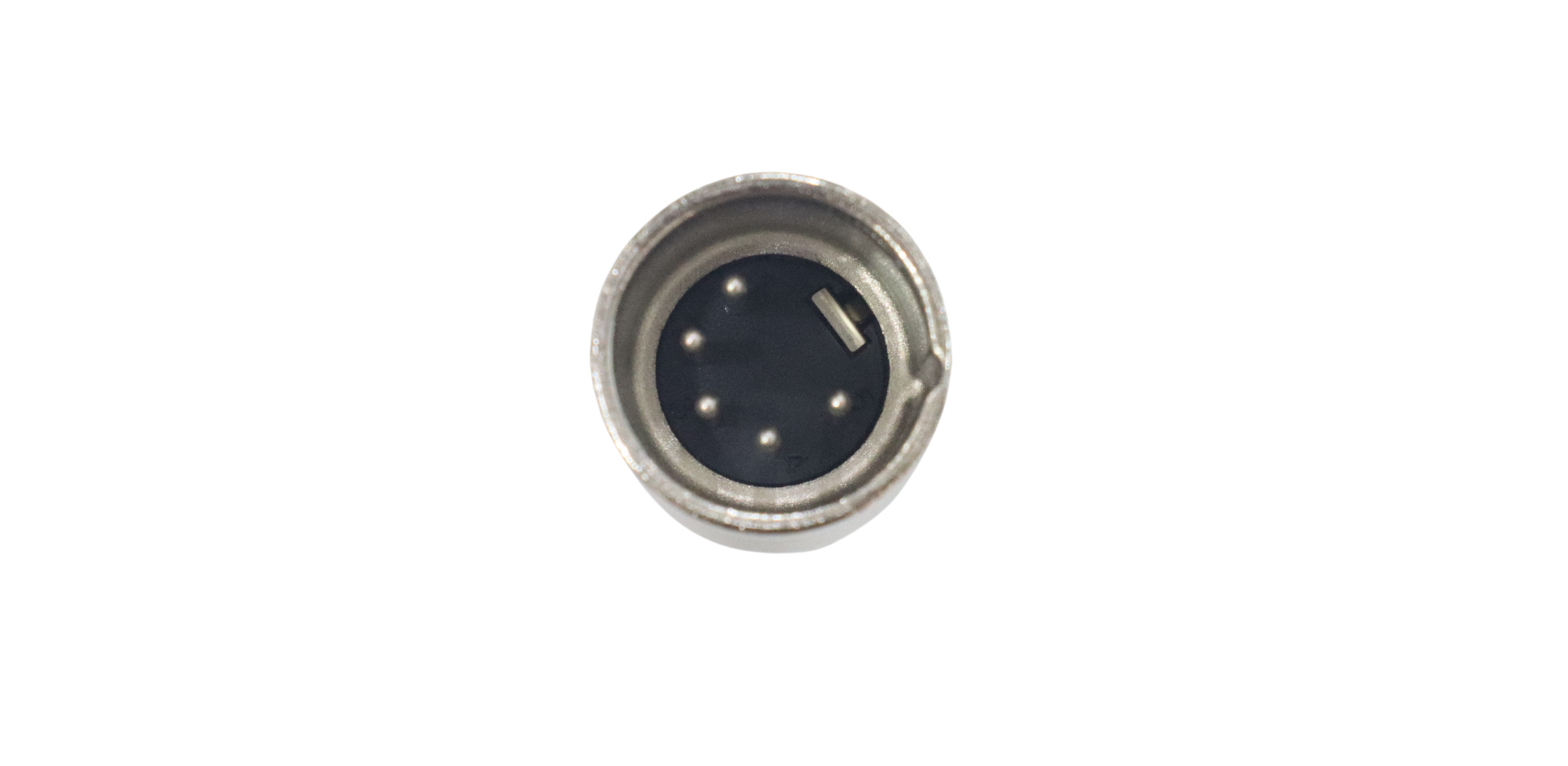

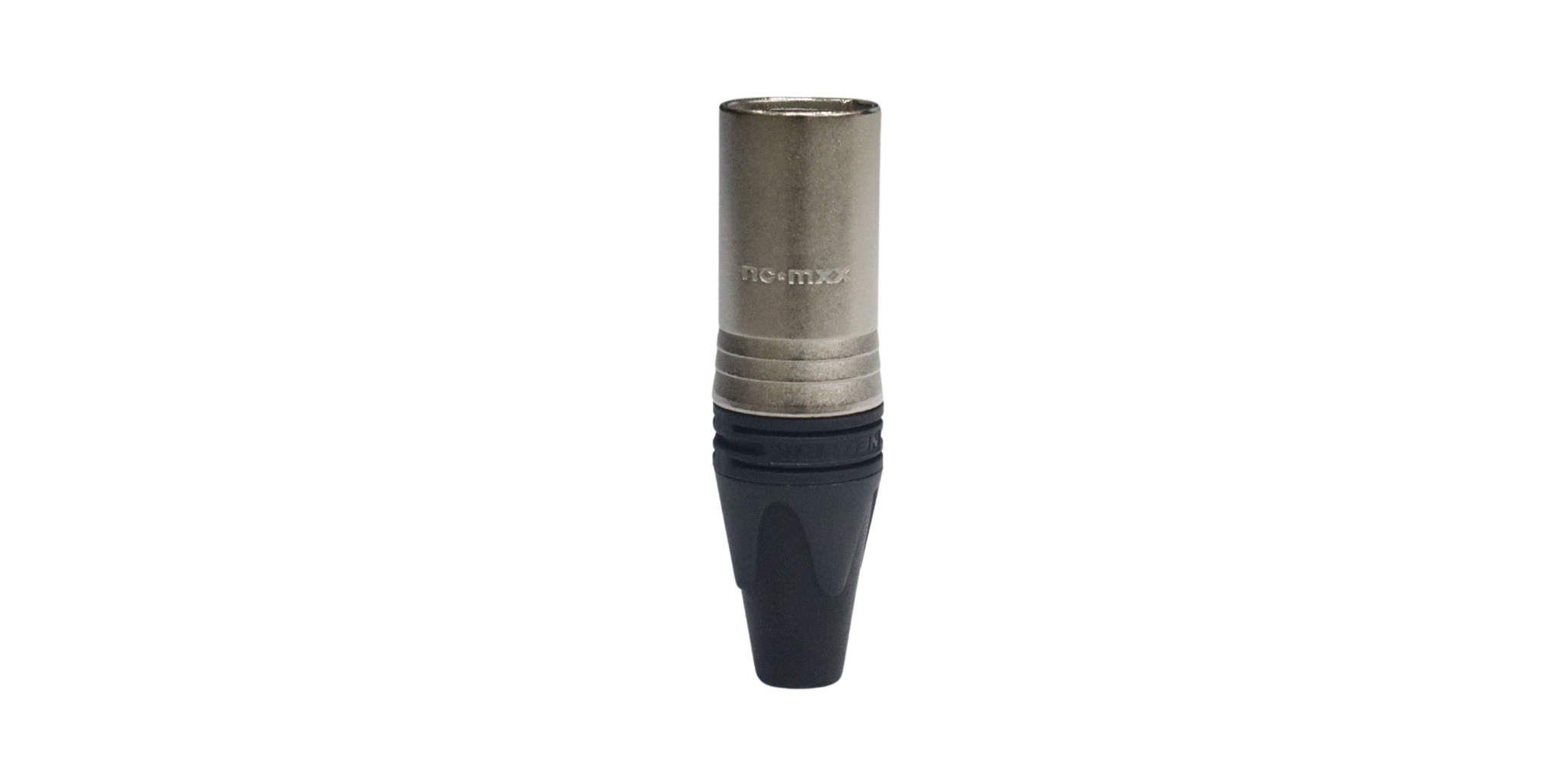

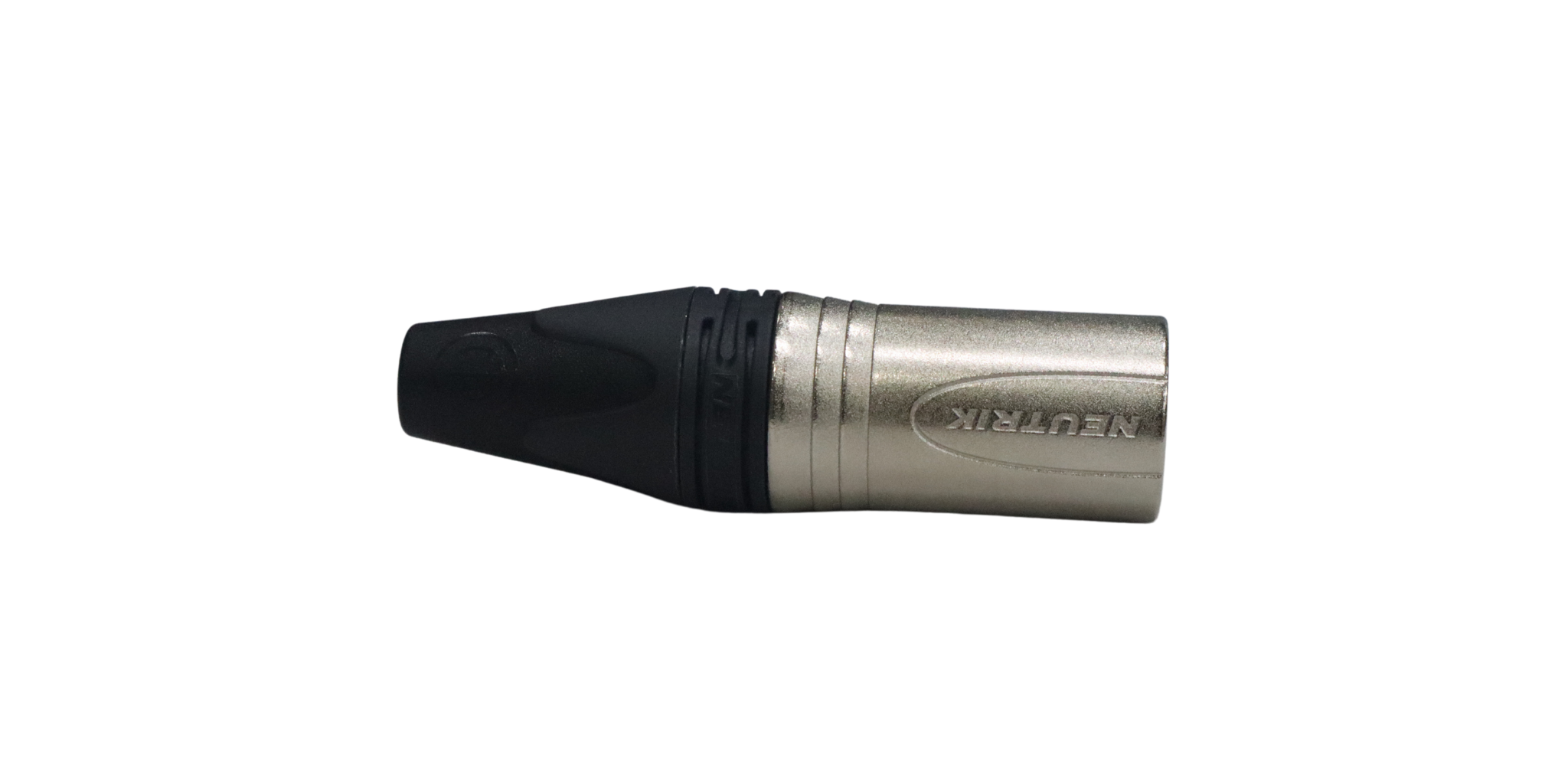

5 pole male cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Shipping informations

Length
12 cm
Width
12 cm
Height
5 cm
Weight
0.4 kg

Official Distributor Certificate

Features & Benefits

  • Male connector with improved locking recess without "window", more stringent housing increases durability

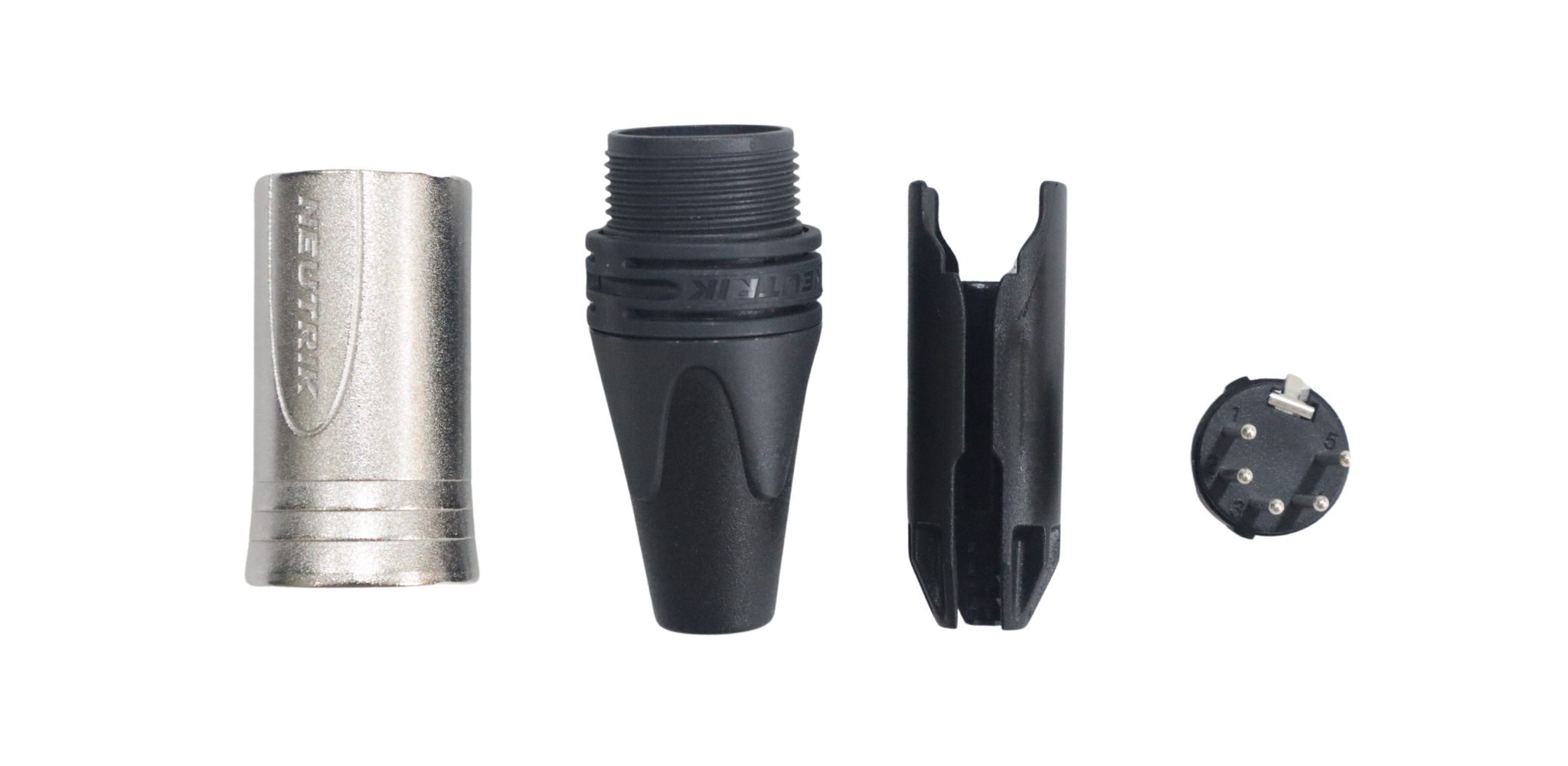

  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage

Technical Information

Product
Title NC5MXX
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 7,5 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.0 mm²
Wiresize max. 18 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Boot Polyurethan
Contact plating 2 µm Ag over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 66)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
