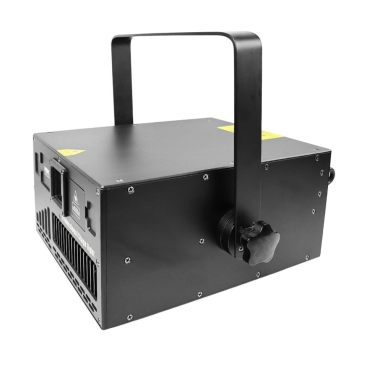

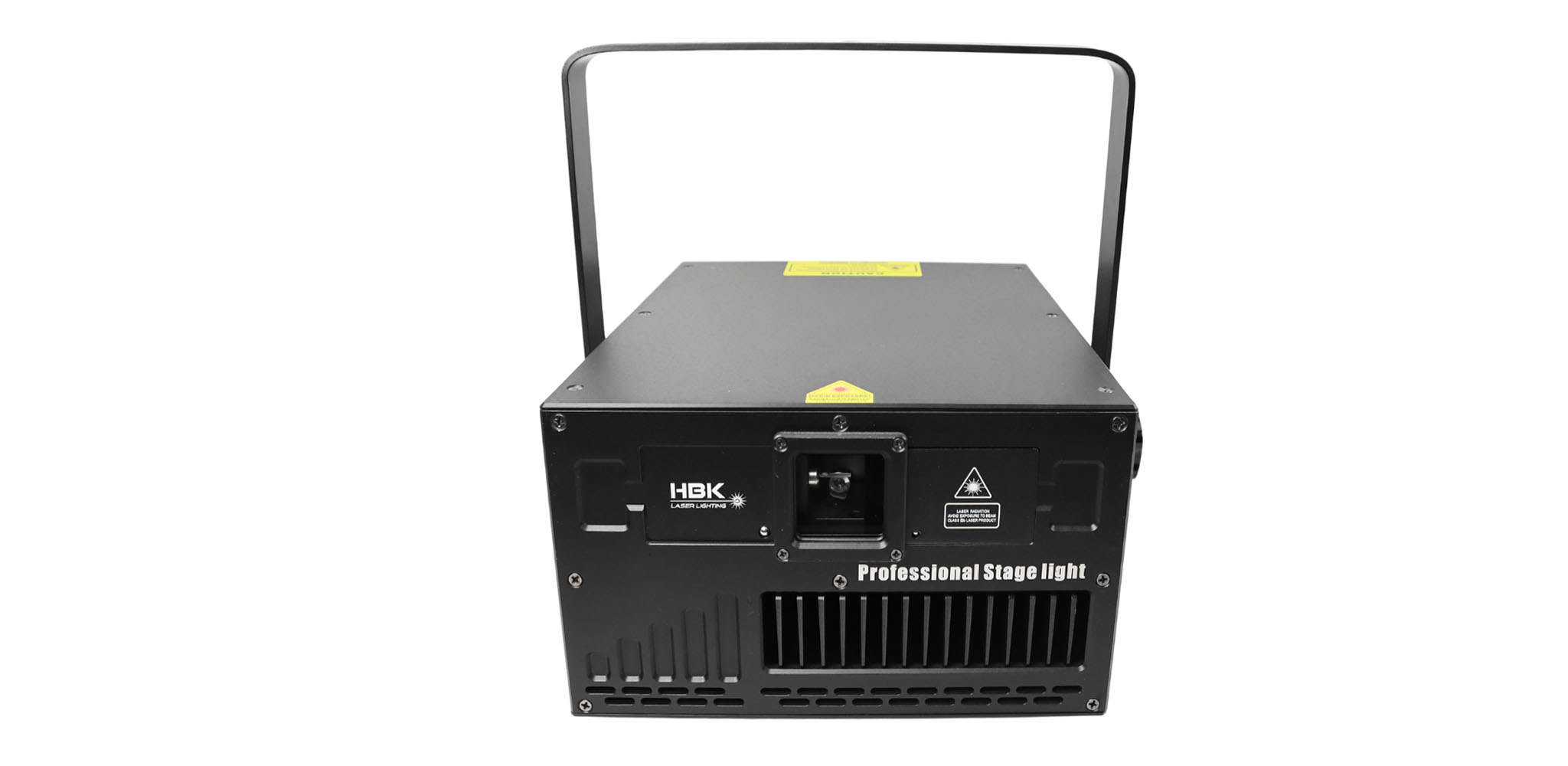

A10-W15000
|
R635-4.5W, G525-5W, B450-6.5W
|
|
Rated Voltage
|
AC100~240V 50/60Hz; 250W
|
|
Scanner
|
40kpps fast scanning system
|
|
Scan angle
|
max±30°
|
|
Input signal
|
±5V;
|
|
Modulation
|
analog
|
|
Beam diameter and divergence
|
6*6.5mm; 1.5mrad
|
|
Control mode
|
sound, auto, master-slave, DMX512(5/17/18/27/52CH), SD card, ILDA
|
|
Demonstration effect
|
built-in 160 pattern, SD card unlimited storage.
|
|
Control Interface
|
3 pin DMX512, 25DB ILDA, EASY ILDA
|
|
DMX effect
|
double pattern mode, and with the function of unique blanking, strobe, rotation, movement, zoom, write in, speed and color etc.
|
|

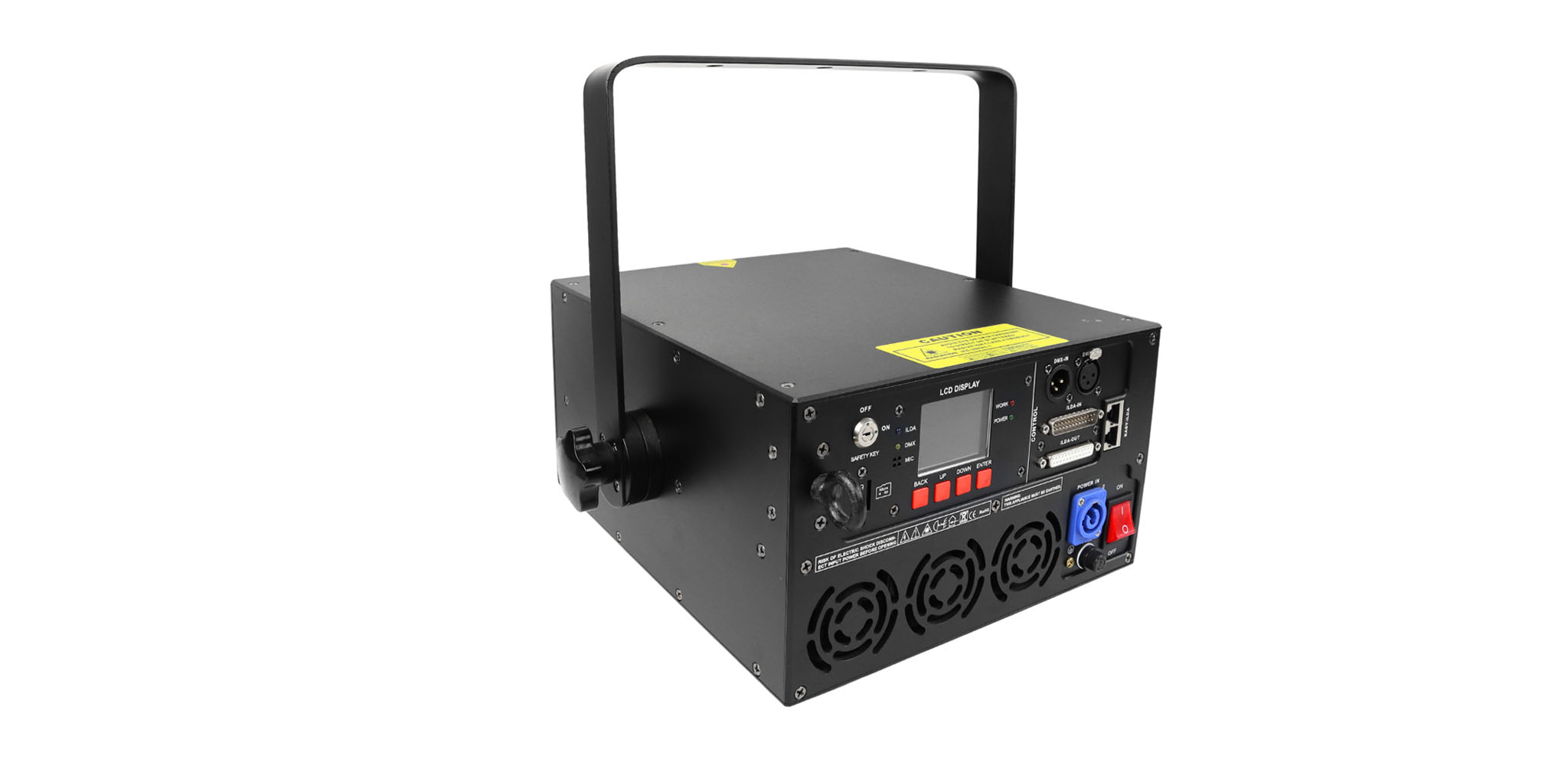

LCD display board
|
|
|
Control technology
|
①RDM data bidirectional transmission ② SD card online upgrade ③temperature control system ④DMX512 upgrade
|
|
Operating requirement
|
dry, less dust, 0~35℃ (environmental temperature), will reduce the attenuation of the diode and extend the life of the light.
|
|
Application
|
disco, club, medium indoor venue, theatre, etc.
|
|

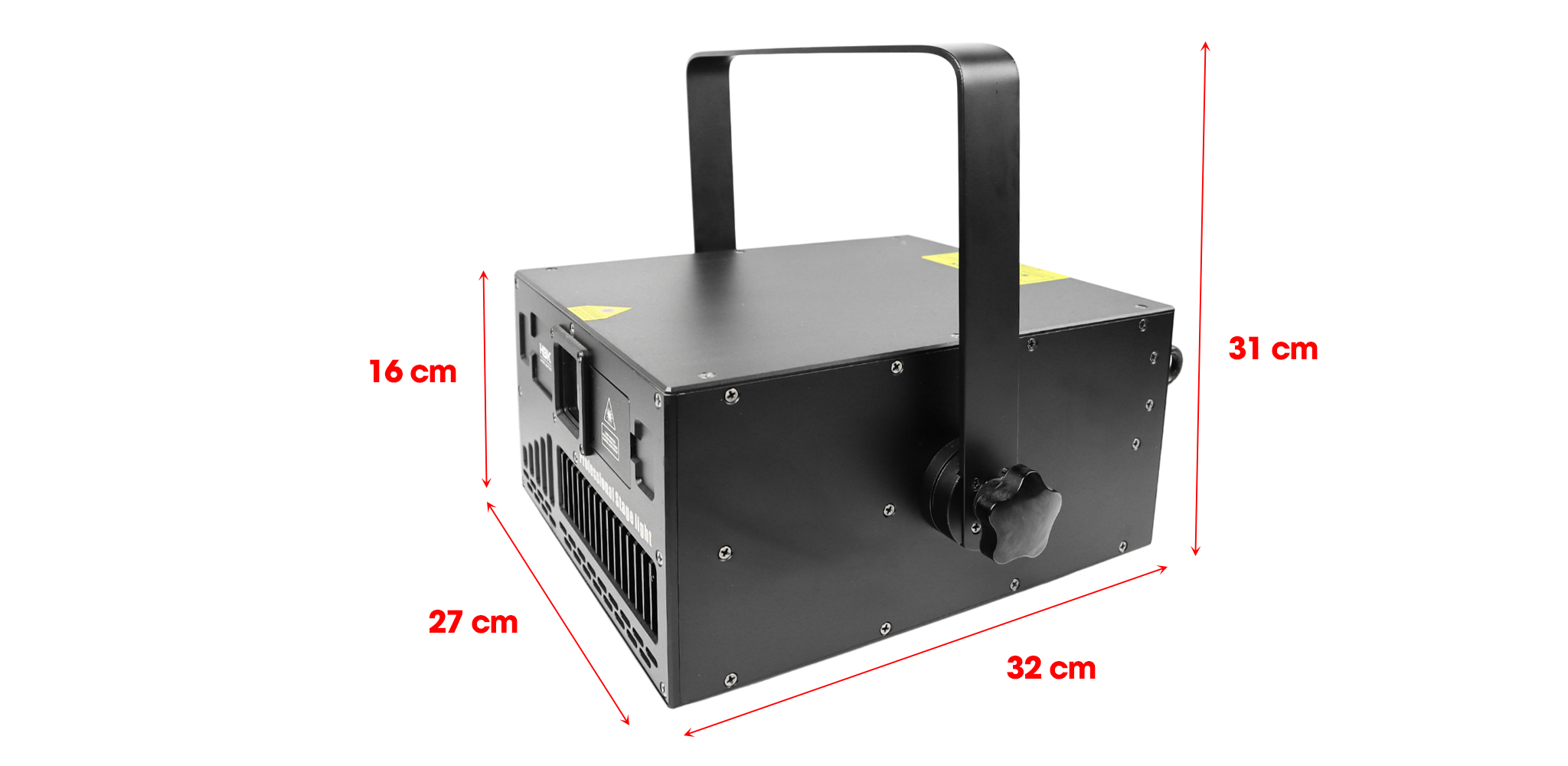

Size(2 in1)
|
60* 43 *37cm
|
|
N.W./G.W.
|
23/28kg
|
