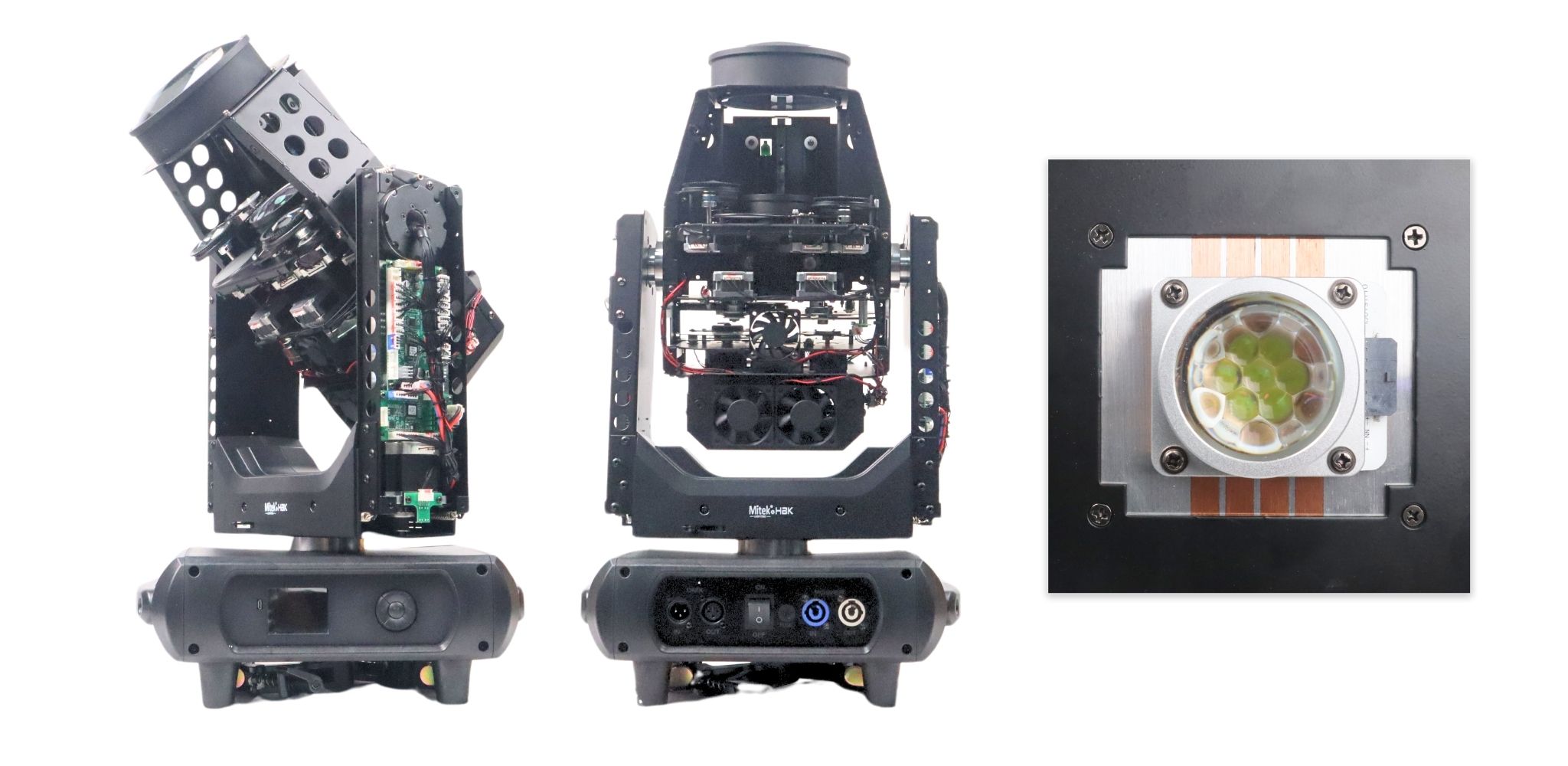

ALED BSW 480 CMY Moving Head Lights Mitek & HBK

Input voltage

AC110V-240V/50-60HZ

Power consumption

600W

Light source specification

Imported new LED Module engine 480W

Light source life

50000 hours

Lumen illuminance

5 meters 100,000 lm

Color temperature

8000K CRI>85

Dimming system

0-100% linear adjustment

Focusing system

Linear adjustment from 4 meters to 50 meters

Frost

1 independent frost filter, soft and natural light spot

Spot zoom angle

4-35 degrees

Wash angle

10-50 degrees

High-speed strobe

0-30 times/sec. Adjustable speed strobe effect. Strobe macro function.

Channel mode

22 channels/26 channels

Display mode

LCD display, key + touch dual operation mode

Control signal

International standard DMX512. With RDM function, online software upgrade is available, dial address code

Color

8 colors + open. Color half-color function

Color mixing system

Linear CMY+CTO color mixing system

Fixed gobos

12 fixed patterns + open

Rotating gobos

7 glass patterns, each glass pattern can be independently forward and reverse

Prism system

Standard single 3-facet prism and 8 prism, each prism can be independently forward and reverse

Macro function

Console reset function, self-propelled mode, master-slave mode

Horizontal scan

540 degrees (16bit precision scan) electronic error correction

Vertical scanning

270 degrees (16bit precision scanning) electronic error correction

Cooling method

Adopt axial fan to enhance cooling

Safety device

With electronic temperature control overheating protection,electronic temperature control automatic power-off protection when the overheating system fails

Appearance material

high temperature resistant plastic

Working environment

-20 degrees - 40 degrees

Protection level

 IP20

Product net weight

 22.5KG

Product size

 36*29*66CM (L*W*H)
