AS 88 Dual HMAC to 8 Port Dual Redundant AES50 Converter Midas

Name: Dual HMAC to 8 Port Dual Redundant AES50 Converter Midas AS 88
Brand: Midas
SKU: HBK59881
Price: 8.22 USD
Availability: InStock
Rating: 4.6 (16 reviews)

Product code: AS 88 2,394

4.6/5 in 16 times

$2,261.66

Out of stock

Email to Pre-Order

FREE SHIP

Warranty 12 months

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Up to 192 bidirectional channels at 96 kHz

2U rackmountable design

Clocked from incoming AES50 or HMAC ports

Dual HyperMAC to 8 Port Dual Redundant AES50 Converter

Shipping informations

Length

61 cm

Width

54 cm

Height

19 cm

Weight

10.34 kg

CERTIFICATE

Music Tribe distributor certificate

Product Features

Dual redundant HyperMAC to 8 redundant AES50 SuperMAC converter
Up to 192 bidirectional channels at 96 kHz
Dual redundant auto-ranging universal switch-mode power supply
Compact and rugged design
2U rackmountable design
Clocked from incoming AES50 or HyperMAC ports
Connection redundancy status available from connected console indicating cable state
Industry standard RJ45 connectors used for AES50 ports and copper snake connection
Industry standard dual-fibre optical connector used for optical fibre snake connection

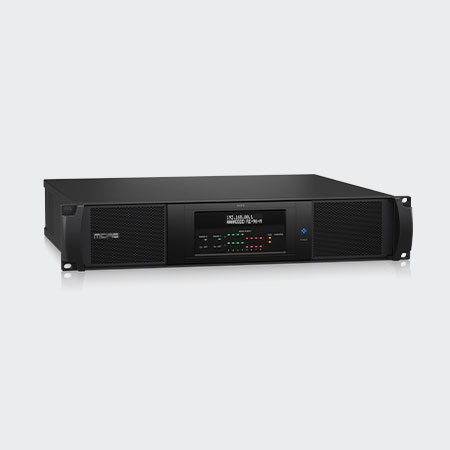

AS88

The Midas AS88 is designed to seamlessly convert a two, high-bitrate HyperMAC connections into eight fully redundant AES50 connections, and vice versa, whilst ensuring ultra-fast audio switching. Built for speed and reliability, AS88 also supports up to 192 bidirectional channels at 96 kHz.

Reliable Redundancy

Using the AS88 with our flagship HD96 console enables full redundancy across both console Snake ports – unlocking greater channel capacity and enhanced system reliability. Furthermore, AS88’s utilisation of advanced FPGA-based switching technology ensures dependable HyperMAC failover to a redundant connection when needed.

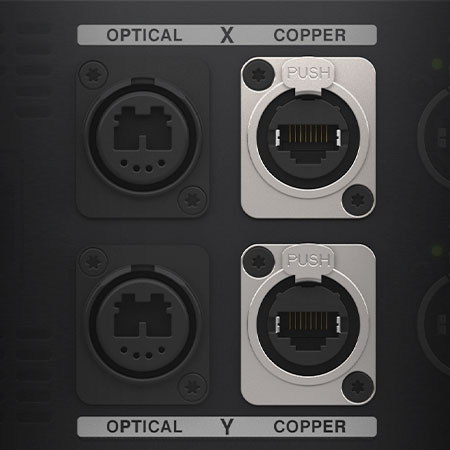

Seamless Integration

Equipped with rugged industry standard RJ45 and optical connectors, the AS88 ensures seamless system integration and reliable, high-performance audio transmission over long distances. Engineered for professionals who demand rock-solid stability and uncompromising audio quality, it’s the trusted solution for touring and live sound environments.

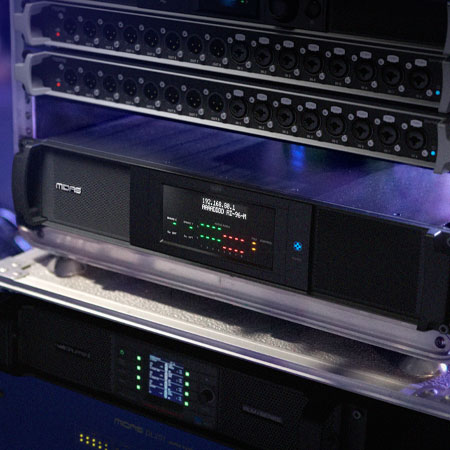

Tough and Dependable

The AS88 features a rugged 2U rackmountable chassis that fits seamlessly into any live or portable sound setup. Its compact size maximises space, while its durablility ensures it can withstand the physical demands and the high-pressure environments of life on the road.

Show less

Specification

Show less

Architecture

HyperMAC / AES50 Converter	2 In / 16 Out (Dual redundancy)
Channels	192 at 96 KHz

Connectivity

Power switches	2 x rocker on rear panel
Power Inlets	2 x IEC C13 on rear panel
Power indicator	Blue LED on front panel

Inputs

HyperMAC Optical	2 x standard connector on rear panel
HyperMAC Copper	2 x standard connector on rear panel
Ethernet	RJ45 connector on rear panel

Outputs

AES50

16 x RJ45 socket on rear panel

Controls

Factory Reset

Pushbutton on rear panel

Display

2 x 20 character

LEDs

Snake X status	2 x green / 2 x red
Snake Y status	2 x green / 2 x red
PSU status	2 x green / 2 x red
AES50 status	16 x green / 16 x red
Ethernet status	1 x green

Power Requirements

Voltage	100 – 240 V 50 / 60 Hz AC
Power consumption	2 x 25 W maximum draw (Dual redundancy)

Physical

Standard Operating Temperature	5° C - 45° C (41° F - 113° F)
Dimensions (H x W x D)	88 x 440 x 483 mm (3.46 x 17.32 x 19.01")
Weight	6.59 kg (14.53 lbs)
