HD96-24-CC-TP Digital Mixer Midas

Q: Which brand does HD96-24-CC-TP belongs to?

HD96-24-CC-TP belongs to Midas . Hoang Bao Khoa is a leading mixer distributor from many brands in the world

Q: How long is the warranty of HD96-24-CC-TP?

HD96-24-CC-TP is 12 months of warranty.

Product code: HD96-24-CC-TP 1,280

4.7/5 in 16 times

$20,307.95

In stock

Buy Now

Add to cart

Warranty 12 months

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Live performance digital control centre with up to 144 simultaneous input channels @ 96 kHz sample rate

120 time-aligned and phase-coherent mix buses

21" full colour TFT display screen with capacitive touch sensing

Live Digital Console Control Centre with 144 Input Channels, 120 Flexible Mix Buses, 96 kHz Sample Rate, 21" Touch Screen and Touring Grade Road Case

Shipping informations

Length

116.80 cm

Width

88.30 cm

Height

49.50 cm

Weight

59.22 kg

Official Distributor Certificate

Music Tribe distributor certificate

Product Features

Live performance digital control centre with up to 144 simultaneous input channels and 96 kHz sample rate
120 time-aligned and phase-coherent mix buses
21" full colour TFT display screen with capacitive touch sensing
Advanced and multi-gesture touchscreen user interface
Award-winning Midas microphone preamplifiers
HyperMAC and AES50 networking allows up to 576 inputs and 576 outputs @ 96 kHz sample rate
Dual network bridge format converter with up to 128 bidirectional channels and asynchronous sample rate conversion
24 VCA (variable control association) groups, and unlimited POPulation groups
Up to 24 multi-channel digital signal processing effects engines
Integrated Wireless transceiver module
Dual ULTRANET Ports providing 32 additional digital outputs
28 Midas PRO motorised 100 mm faders
Fully interpolated touch sensitive controls
Dual redundant auto-ranging universal switch-mode power supplies

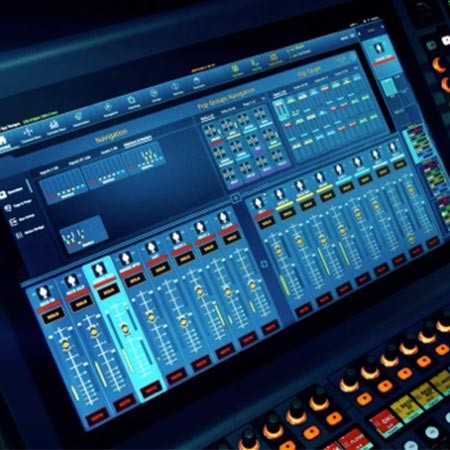

Heritage History

The Heritage 3000 (H3K) was first introduced in 1999. Its famous purple colour and features made it so distinctly Midas. It soon established itself as the world wide industry standard for live sound applications. The H3K proved to be a huge winner from day one.

The striking colour scheme wasn’t the only thing that made waves within the industry. With a new pre-amp design bettering that of the iconic XL4, large channel and aux counts plus the flexible aux switching system, it’s no wonder the H3K appeared on everyone’s spec as the console of choice.

Living up to the reputation of the H3K is undeniably a hard task; the H3K set a new standard in live mixing.

Naming the Heritage D after such an iconic mixing console was indeed a bold move. However, this product is bold and visionary whilst keeping the legendary sound quality and raising the bar on what a digital mixing console can achieve.

Building on the prolific history of the H3K and PRO Series consoles, the new Heritage D now reinvents the workflow of the sound engineer. Finally, a Midas you can touch. Featuring a powerful 21” HD touch screen and formidable ultramodern Graphic User Interface (GUI) control all at your fingertips. Heritage D is a vision of the future with thought provoking new features such as Channel AI (yes, Artificial Intelligence).

This platform is designed for the future and will continue to grow and develop over many years with an impressive Midas team that are eager to improve and constantly add new features. Your investment in the Heritage D is safe.

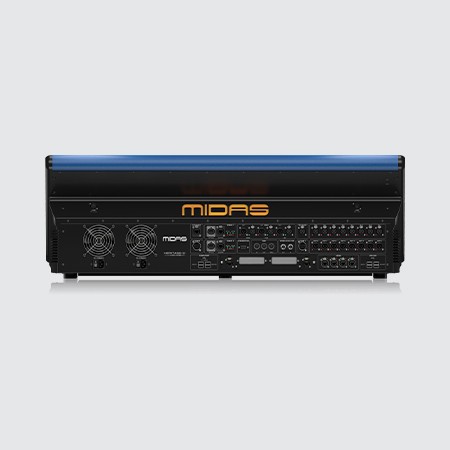

The Graviton Mk 2 Processing Engine

At the heart of every mixing console is the most important part – Audio. Overlooked by other manufacturers, we have always put sound at the top of our priority list.

It was hard, almost impossible, but we improved on the legendary Midas digital sound with our new 64-bit summing mix engine with increased dynamic range. Driving a Midas has never been easier.

The key to the Midas sound is in giving ultimate flexibility while still being delay compensated. Avoiding the dreaded comb filtering effect is so very important. Many other consoles simply ignore this crucial part of the audio signal path.

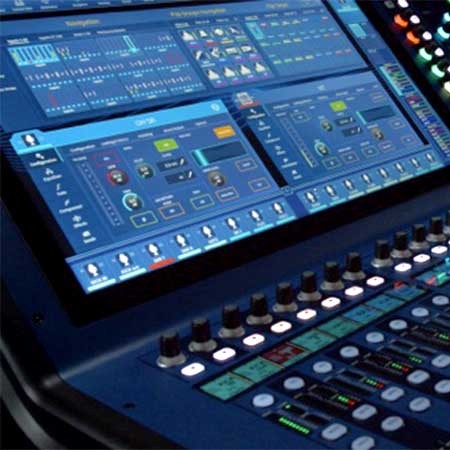

Flexi-Aux

The Flexi Aux system gives the ability to send aux to aux for group or stem style mixing. Now you can smash a whole drum kit with parallel compression and feed it to an artists in ear mix.

Variable Channel Phase

The new, intuitive, easy to use Variable Phase per channel allows sound sources to be blended together seamlessly, with high or low phase changes to mix signals together in ways never achievable before.

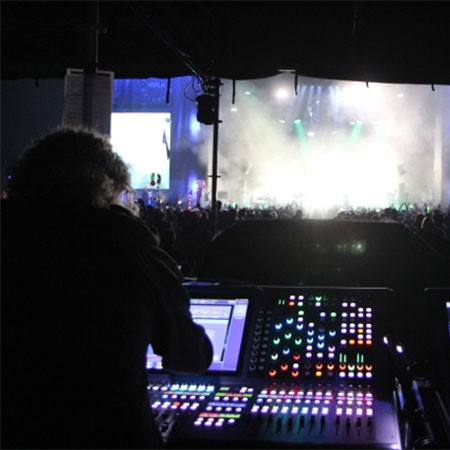

Tap Off Points

New tap off points on channels have been introduced to allow signals to be sent from any point in the signal path. This gives greater flexibility for sending signals to stage before any element of processing has been performed. All this without affecting what Midas magic is needed for the main mix.

For the first time on a Midas, post insert fader points are available plus all processing options orders can be changed by simply dragging and dropping in the order you desire.

With Great Power Comes… More Chips

With 18 Sharc DSPs, 14 layer boards, 5 Eighth Generation FPGAs and 2 GPU co-processors there has never been such a technologically advanced board in the world.

True Innovation

Channel AI™

True Preview™

True Audition™ Console Connected

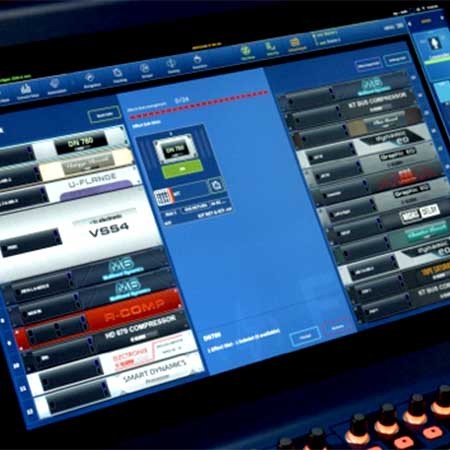

A true plethora of Effects with Music Tribe's unparalleled sister companies including TC Electronic we have the world’s best effects emulations. Up to 96 effects can be used to craft a beautiful sounding mix including:

TC 6000 (VSS4)

TC 3000 (VSS3)

TC Electronic 2290

HD2A

HD670

KT1176

R-Comp

KT Bus compressor

Mteq Program EQ-HD

M6 compressor

HD Stressor compressor

Ultra-Dualistic Voice Doubler

Rack-Amp (guitar amp and cab emulation)

Glow (harmonic mix glue)

Rotor Motor (Leslie cabinet emulation)

Enlightenment Bass

XL4 EQ

M Harmonics

Uncl HD Distortion

Prime Input Expander

Wave Designer

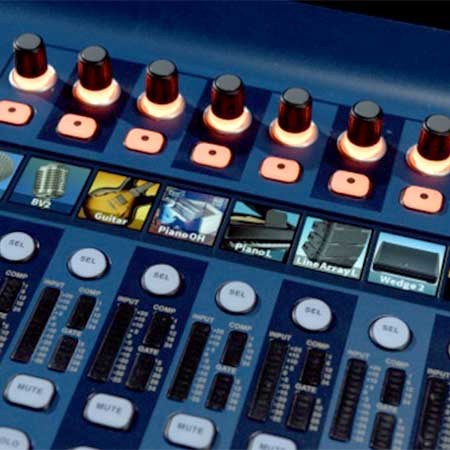

Midas Touch

The first Midas full HD multitouch screen with up to 10 faders being controlled at once, unseen on a mixing console. Mixing never looked so good.

Shout Mixer

The Shout Mixer allows complex communication groups to be easily created and stored. 16 shout inputs (independent of the input and output channel count) can be used to create multifarious talk systems with 12 dedicated outputs. Instant recall allows you to use different settings for soundcheck and the all-important big show.

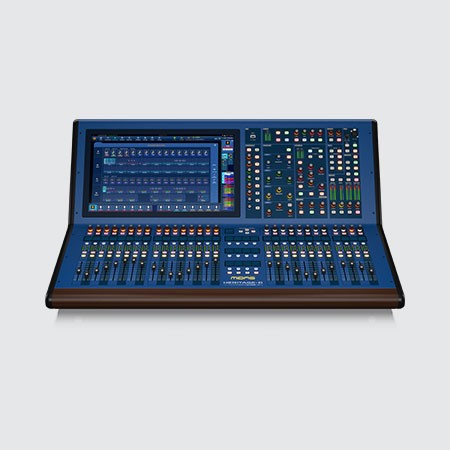

Channel AI ™

Never before has a console been able to listen to your source, tell you what it is, suggest Gain, EQ, Compression and Gate settings if required. All this presented in an easy user interface that lets you decide which parts of suggested settings you wish to use. Adaptive presets let you pick the style of sound you want and the Channel AI ™ does the rest. You’ll wonder how you ever lived without it.

The development of the HD96-24 can be summed up with one phrase “We Listened”.

Specification

Processing

Input processing channels	144 flexi channels
Output processing channels	96 flexi aux outputs, 24 matrices, stereo bus, mono bus
Point-to-point routing matrix	622 x 652
Signal processing	64-bit floating point
D/A converter	24-bit, 96 kHz and 128 times oversampling
A/D converter	24-bit, 96 kHz and 128 times oversampling
Sampling frequency	96 kHz
I/O latency (surface input to output)	1.34 ms
Input audio processing	Dual-slope high and low-pass filters True phase filter control 4-band parametric EQ with 3 shelf modes 4-mode creative input compressors Input gates or ducker Insert point on/off with processing order change Direct output with adjustable level and processing pick of point Delay-compensated aux return mode on inputs 5 x tap-off points per send
Output audio processing	Output 4-band parametric EQ with shelving/HP/LP options 4-mode creative output dynamics Insert point on/off with processing order change Direct input with adjustable level and processing tap-off point
Mixing control assistance	12 x talk groups 12 x mute groups 24 x surface POPulation groups 24 x VCA associated population groups Scene snapshot automation

Connectors

Midas microphone preamplifier	8 x XLR balanced
Balanced outputs	8 x XLR balanced
Talkback connector	1 x XLR balanced
Talk connector	1 x XLR balanced
Headphone connector	2 x 1⁄4" TRS (stereo)
Digital AES3 input / output (XLR)	2 / 2
AES50 ports ( Klark Teknik SuperMAC, 100 Mbit/s)	4
Snake (copper)	2 x HyperMac (192 channels of bi-directional digital audio) on Ethercon XLR
Snake (fibre)	2 x HyperMac (192 channels of bi-directional digital audio) on Opticon XLR
CM1 expansion slots	2 x slots (CM1 module for AES50, DANTE, MADI and USB)
Ultranet	2 x Ultranet ports (up to 16 digital outputs per port)
Word clock IN	BNC, accepts TTL level, 96 kHz square wave, impedance 75 Ohms
Word clock OUT	BNC, provides a TTL level, 96 kHz square wave
AES3 sync IN	1 x 3-pin XLR
AES3 sync OUT	1 x 3-pin XLR
External (Ethernet) connector	Ethercon XLR
Monitor output	2 x HDMI (1920 x 1080p 59.94Hz/60Hz 16:9 & 720 x 480p 59.94Hz/60Hz 16:9 supported)
USB 3.0 type A hub	4 x 5 V ⎓ 900 mA
USB 3.0 type A (fader port expansion)	4 x 5 V ⎓ 900 mA
USB 2.0 type A (front surface data)	1 x 5 V ⎓ 500 mA
Diagnostics Port	Serial port
MIDI	In, Out and Thru 5-pin MIDI DIN sockets
Lamp	2 x 12 V DC 5 W 4-pin
IEC mains socket with power switch	2

Input / Output Characteristics

Surface input impedance	10 kΩ
Non-clip maximum input level	+24 dBu
Input gain	-22.5 dB to +65 dB
Phantom power (switchable per input)	+48 V
Talk mic impedance	5 kΩ
Talk mic gain	+15 dB to +60 dB
Talk mic max level	+6 dB
Talkback impendance	20 kΩ
Talkback gain	∞0 to + 10 dB
Talkback max level	+21 dBu
Surface output impedance	50 Ω
Surface output gain	0 dB
Surface output max level	+21 dBu
Dynamic range	106 dB, 22 Hz to 22 kHz, unweighted
Maximum voltage gain	100 dB inputs to subgroups and masters , 106 dB inputs to aux and matrix
Crosstalk at 1 kHz	-100 dB physically adjacent input channels
Crosstalk at 10 kHz	-90 dB physically adjacent input channels
Fader / pan cut off at 1 kHz	-100 dB
Fader / pan cut off at 10 kHz	-100 dB
Headphones output impedance	10 Ω
Headphones maximum output level	+21 dBu

Displays

Display screen	21" LCD high brightness 1920 x 1080 px, captive touchscreen, up to 10 simultaneous touches
LCD info displays	41 x full colour LCD info displays, 24 mm x 24 mm (size), 240 x 240 px
Input meters (quantity 30)	12 segment -35 dBu to +20 dBu
Output meters (quantity 7)	20 segment -36 dBu to +21 dBu
Channel comp meters (quantity 28)	5 segment -24 dBu to -1 dBu
Channel gate meters (quantity 28)	5 segment -34 dBu to -5 dBu
Comp meter (quantity 1)	12 segment -23 dBu to -1 dBu
Gate meter (quantity 1)	12 segment -34 dBu to -1 dBu

Controls

100 mm motorized faders	8 + 8 + 8 + 4
Touch-sensitive rotary controls	66
Custom controls
Fully assignable rotary controls	28 + 8
Fully assignable backlit buttons	28 + 8 + 12
Headphone controls	A and B, min to max
Talk	Talk gain min to max
