HD96-AIR-CC-IP Digital Mixer 144 Input-Channels, 120 Mix Buses Midas

Product code: HD96-AIR-CC-IP      678
4.67/5 in 3 times
Midas
  • HD96-AIR-CC-IP
  • HD96-AIR-CC-IP
  • HD96-AIR-CC-IP
  • HD96-AIR-CC-IP
  • HD96-AIR-CC-IP
  • HD96-AIR-CC-IP
HD96-AIR-CC-IP
HD96-AIR-CC-IP
HD96-AIR-CC-IP
HD96-AIR-CC-IP
HD96-AIR-CC-IP
HD96-AIR-CC-IP

$13,431.4
Pre-order
ship note
Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details
  • Price only applicable for overseas
  • Technical Support
  • Term of shipment: Ex-Works
  • Pick up at Hoang Bao Khoa LTD company
  • All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Live Digital Console Control Centre with 144 Input-Channels, 120 Mix Buses, 96 kHz Sample Rate and 21" Touch Screen
Live Digital Console Control Centre with 144 Input-Channels, 120 Mix Buses, 96 kHz Sample Rate, 21" Touch Screen and Touring Grade Road Case

Shipping informations

Length
100 cm
Width
62 cm
Height
40 cm
Weight
22.34 kg

Official Distributor Certificate

Product Features

  • Live performance digital console with up to 144 simultaneous input channels and 96 kHz sample rate

  • Lightweight console in a flyable package (<30 KG) including flight case (not included)

  • 123 time-aligned and phase-coherent mix buses

  • 21" full colour TFT, high-brightness screen with capacitive touch sensing

  • Advanced and multi-gesture, touchscreen user interface

  • Award-winning Midas microphone preamplifiers

  • Dual HyperMAC and AES50 allows up to 480 inputs and outputs at 96 kHz sample rate

  • Dual network bridge format converter with up to 128 Bidirectional Channels and asynchronous sample rate conversion

  • 24 Variable Control Association (VCA) and 24 POPulation groups

  • 24 user-assignable buttons with 12 high-definition 240 x 240 LCD displays

  • 8 analogue inputs switchable to AES3, and 8 analogue outputs switchable to AES3

  • Up to 24 multi-channel digital signal processing effects engines

  • Dual redundant auto-ranging universal switch-mode power supplies

HD96-AIR

HD96-AIR

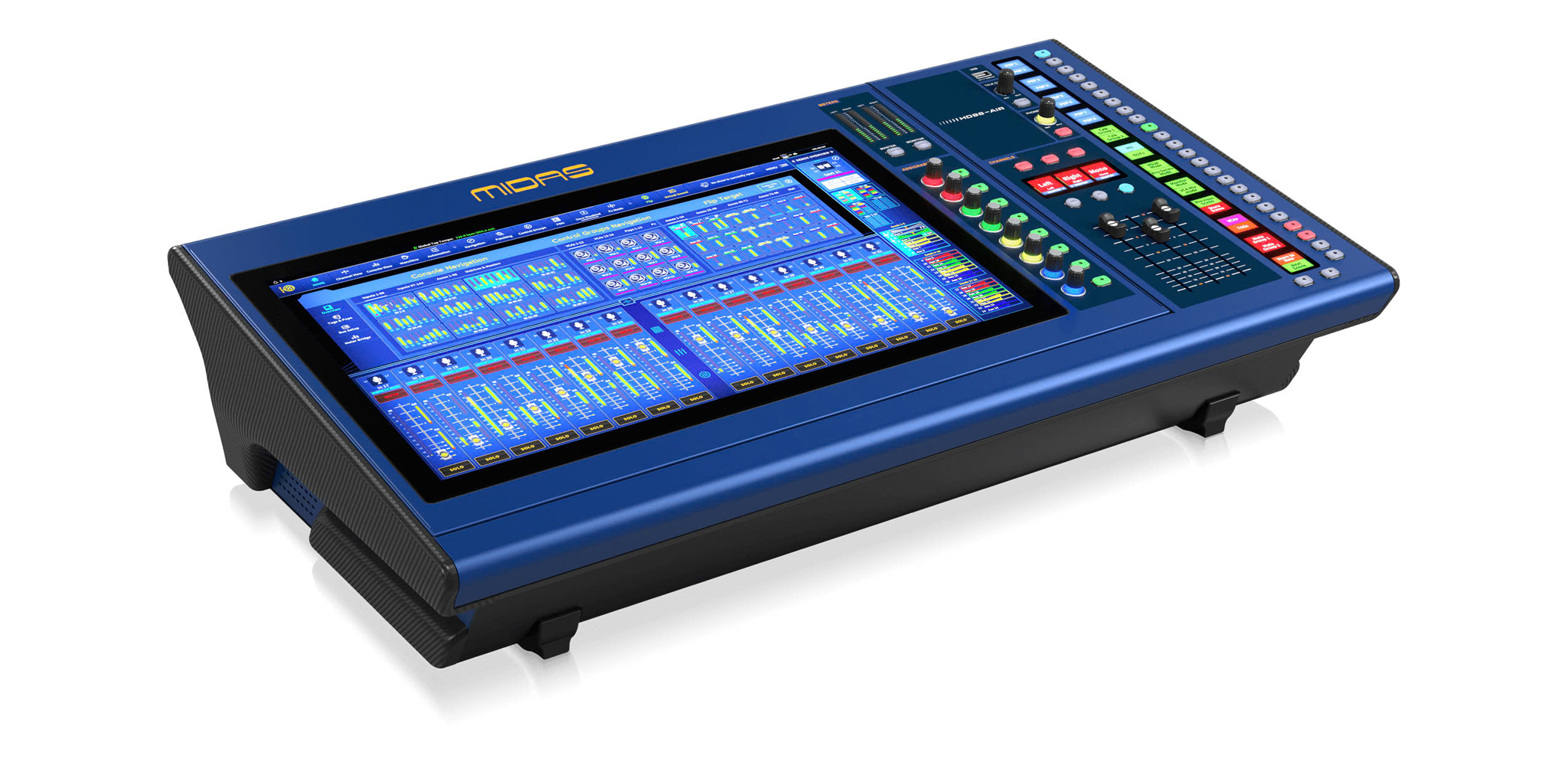

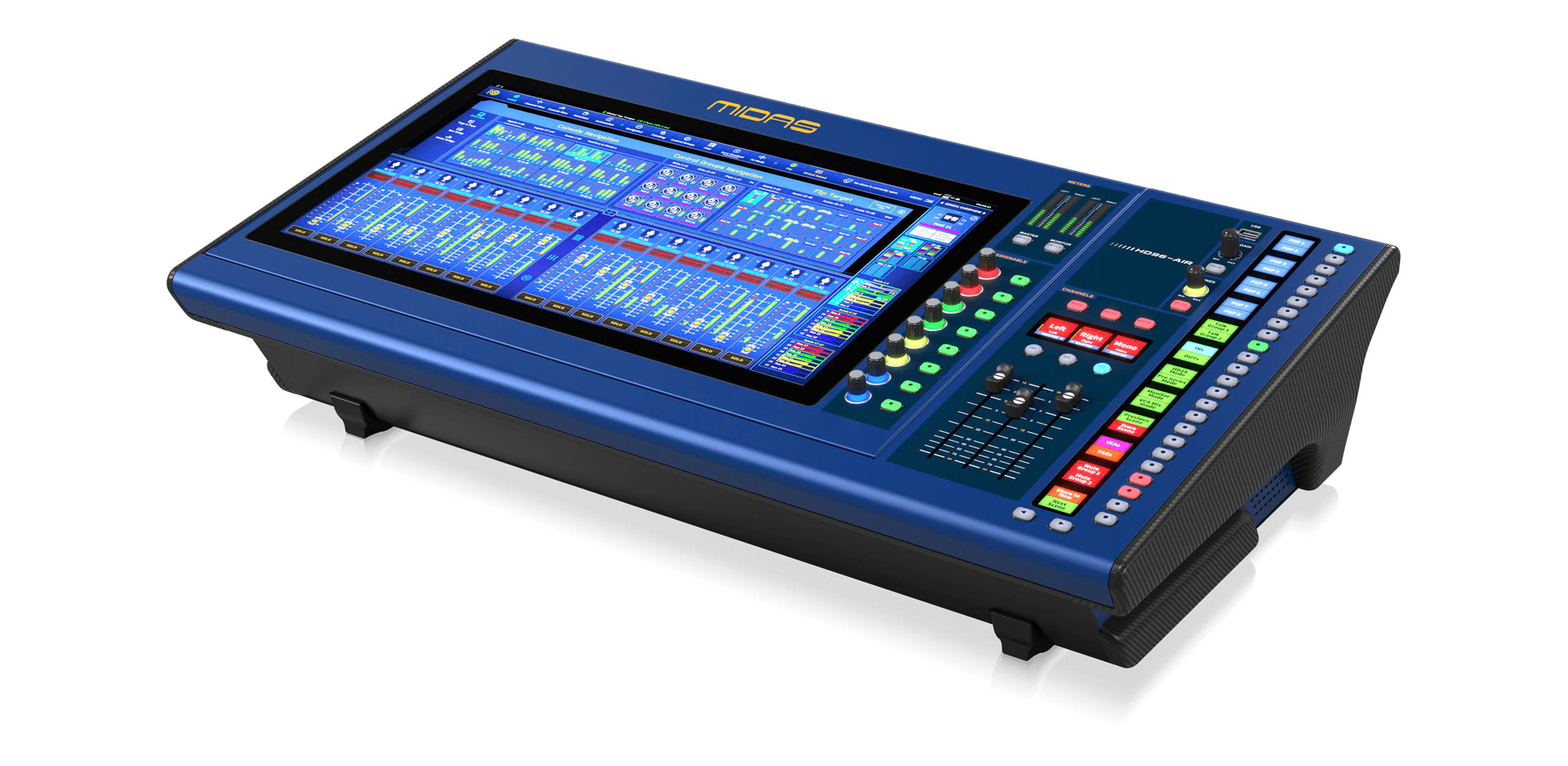

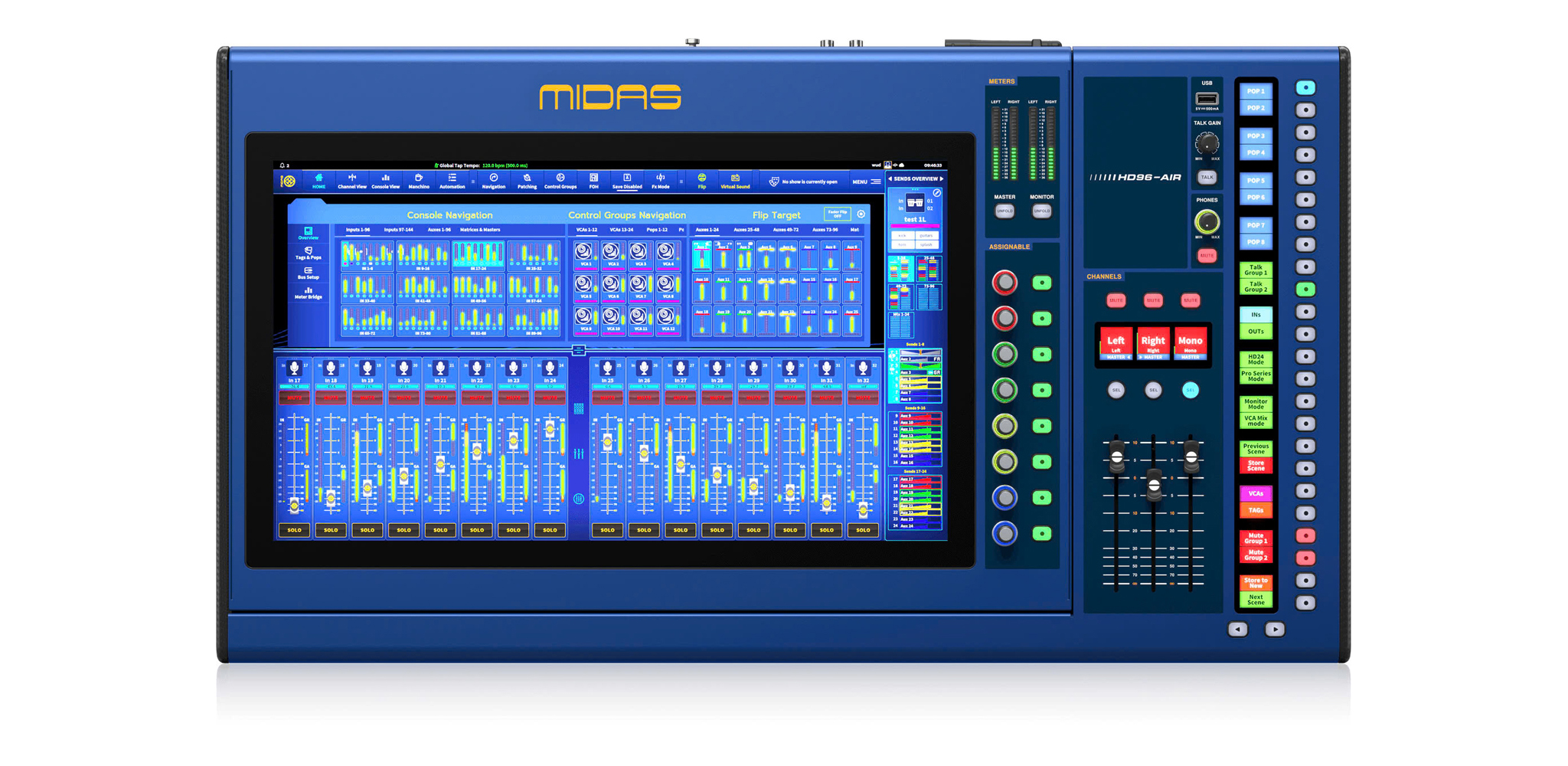

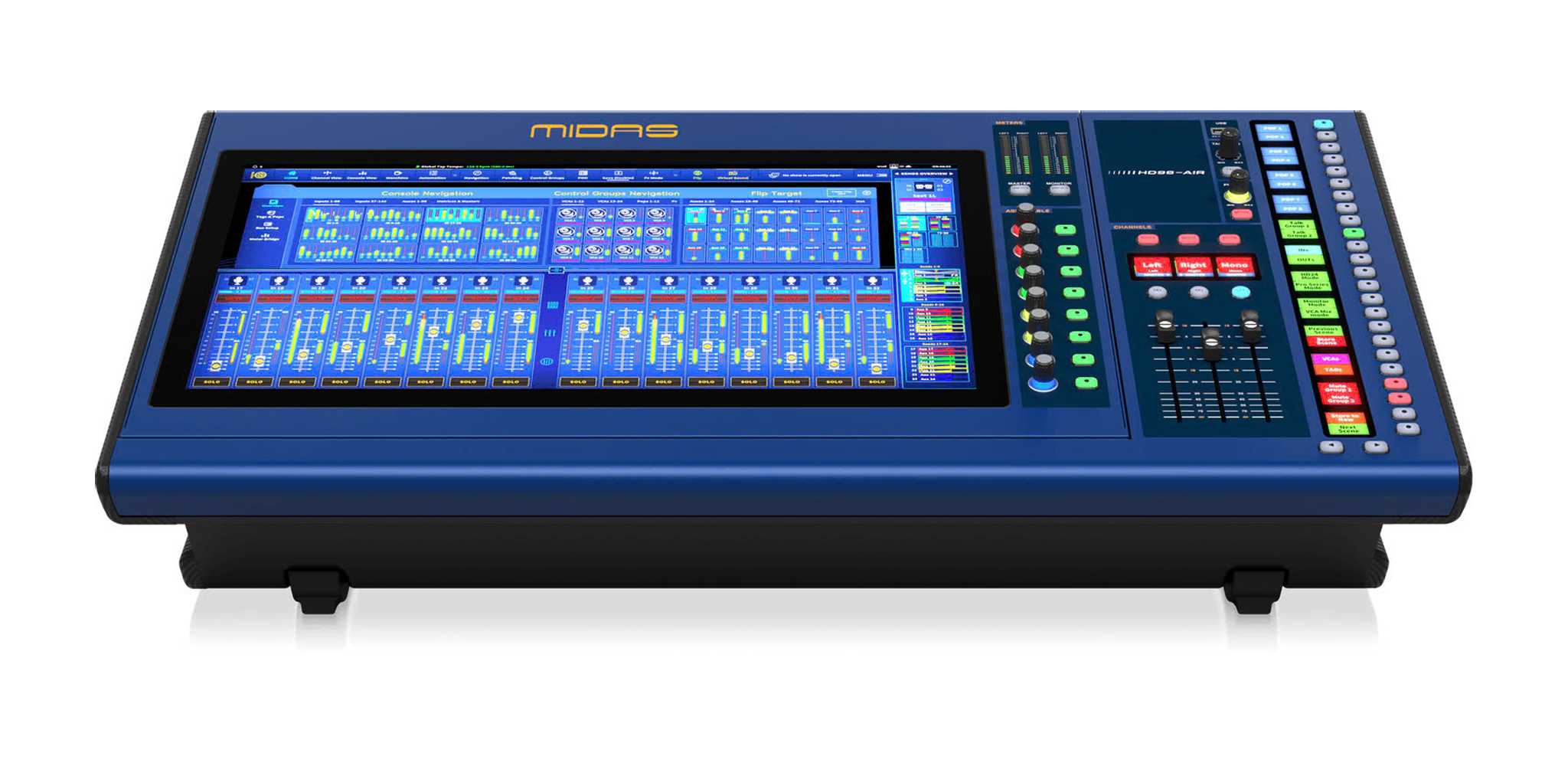

Midas’ HD96-AIR takes the next leap in digital console evolution — fusing the iconic sound of the H3K and engineering precision of the Heritage D Series with breakthrough portability. Finally, a Midas you can take anywhere. Designed for engineers who demand power without compromise, HD96-AIR features a stunning 21” high-brightness touchscreen with multi-gesture control, unlocking an ultra-intuitive workflow in a hyper-lightweight form factor. All the speed. All the detail. Now within arm’s reach.

Lightweight and Built to Perform

Lightweight and Built to Perform

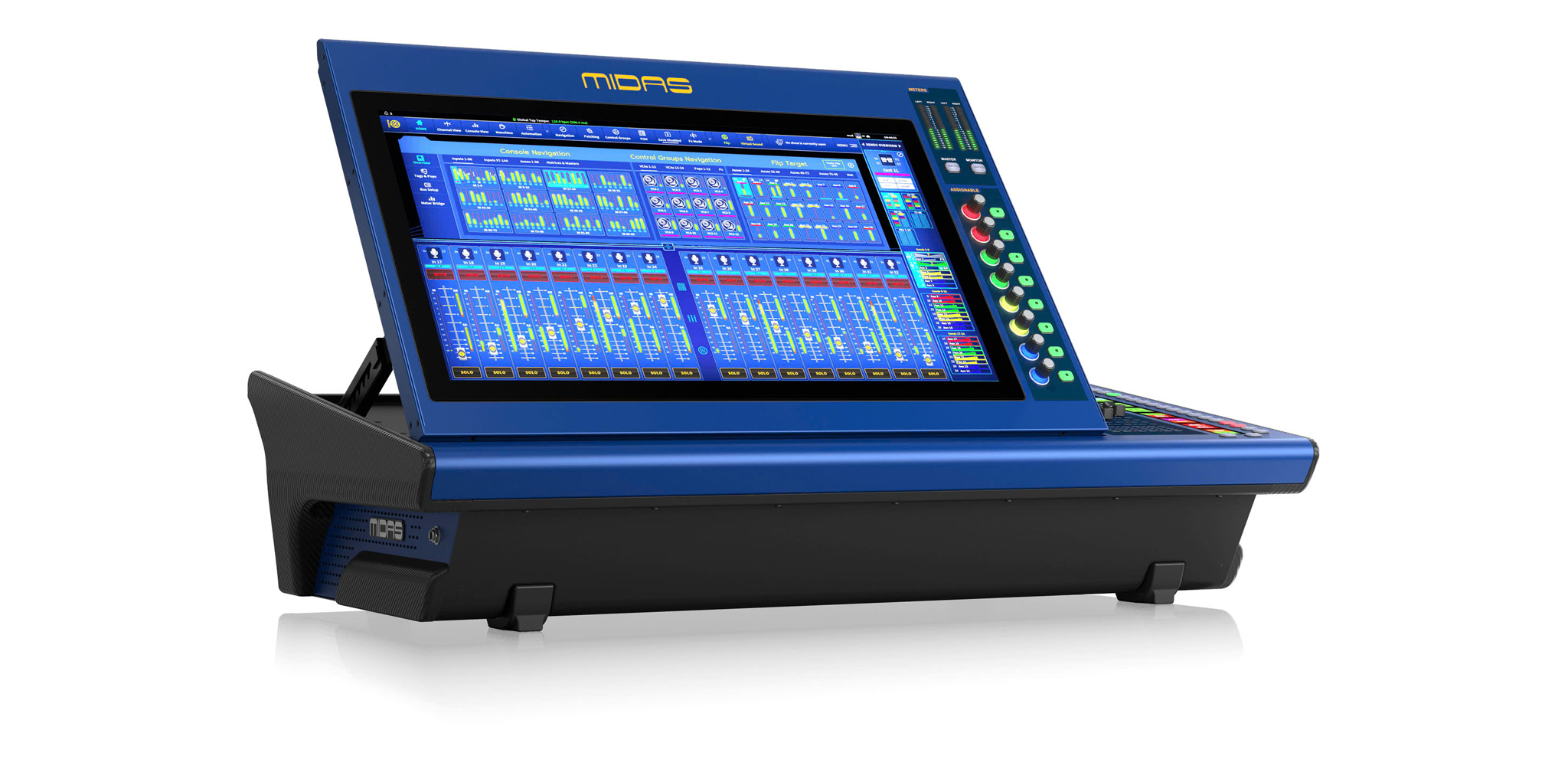

The HD96 platform was built with the future in mind — and HD96-AIR is just the beginning of that vision in action. Engineered for total control and maximum portability, it features a fully adjustable 21” full HD multi-touchscreen that puts every parameter — from faders to control groups to individual channels — right at your fingertips. The layout places user-assignable buttons exactly where you need them, enhancing speed and precision on the fly. And thanks to a smart, space-conscious design, HD96-AIR delivers all the power of the Heritage D Series in an ultra-lightweight chassis. Even with the flight case, the full package weighs in at under 30 KG — ready for anywhere the show takes you.

The Graviton Mk 2 Processing Engine

The Graviton Mk 2 Processing Engine

At the heart of every Midas console is what matters most — sound. While others compromise, we’ve never wavered in our commitment to audio excellence. With the Heritage D series, we’ve taken the legendary Midas sound even further, with a next-generation 64-bit summing engine that delivers greater dynamic range, depth, and clarity than ever before.

The key to the Midas sound is in giving ultimate flexibility while still being delay compensated. Delivering a mix that breathes with natural warmth and stunning precision. No comb filtering. No inconsistencies. Just pristine audio, everywhere, all the time — whether you're pushing the mix to its limits or riding the smallest detail. Driving a Midas has never been easier.

Flexi-Aux

Flexi-Aux

The Flexi-Aux system opens up powerful routing possibilities — including aux-to-aux sends for advanced group and stem-style mixing. Need to smash a drum kit with parallel compression and feed that exact sound to an artist’s in-ears? Now you can. Flexi-Aux gives you the tools to mix the way you hear it — fast, flexible, and fully under your control.

Variable Channel Phase

Variable Channel Phase

The new intuitive, easy to use Variable Phase per channel is a powerful tool that allows sound sources to be blended seamlessly with high or low phase changes to mix signals together in ways never achievable before. From subtle alignment tweaks to bold creative shifts, you can now seamlessly blend sound sources with precision, clarity, and control.

Tap Off Points

Tap Off Points

New tap off points on channels have been introduced – giving you the freedom to route audio from any stage in the signal chain. Perfect for sending raw signals to stage without affecting your main mix. It's all about precision control without compromise.

As per the HD96-24, AIR features post-insert Fader tap points alongside fully customisable processing chains. Just drag, drop, and reorder your signal flow exactly how you want it. It's all about precision control without compromise.

Shout Mixer

Shout Mixer

The Shout Mixer allows complex communication groups to be effortlessly created and stored. With 16 independent shout inputs and 12 dedicated outputs, you can build flexible, powerful talkback systems that operate entirely outside your main I/O count.

Whether you’re in soundcheck or mid-show, instant recall lets you switch between shout configurations in a heartbeat — so your comms are always as sharp as your mix.

Specification

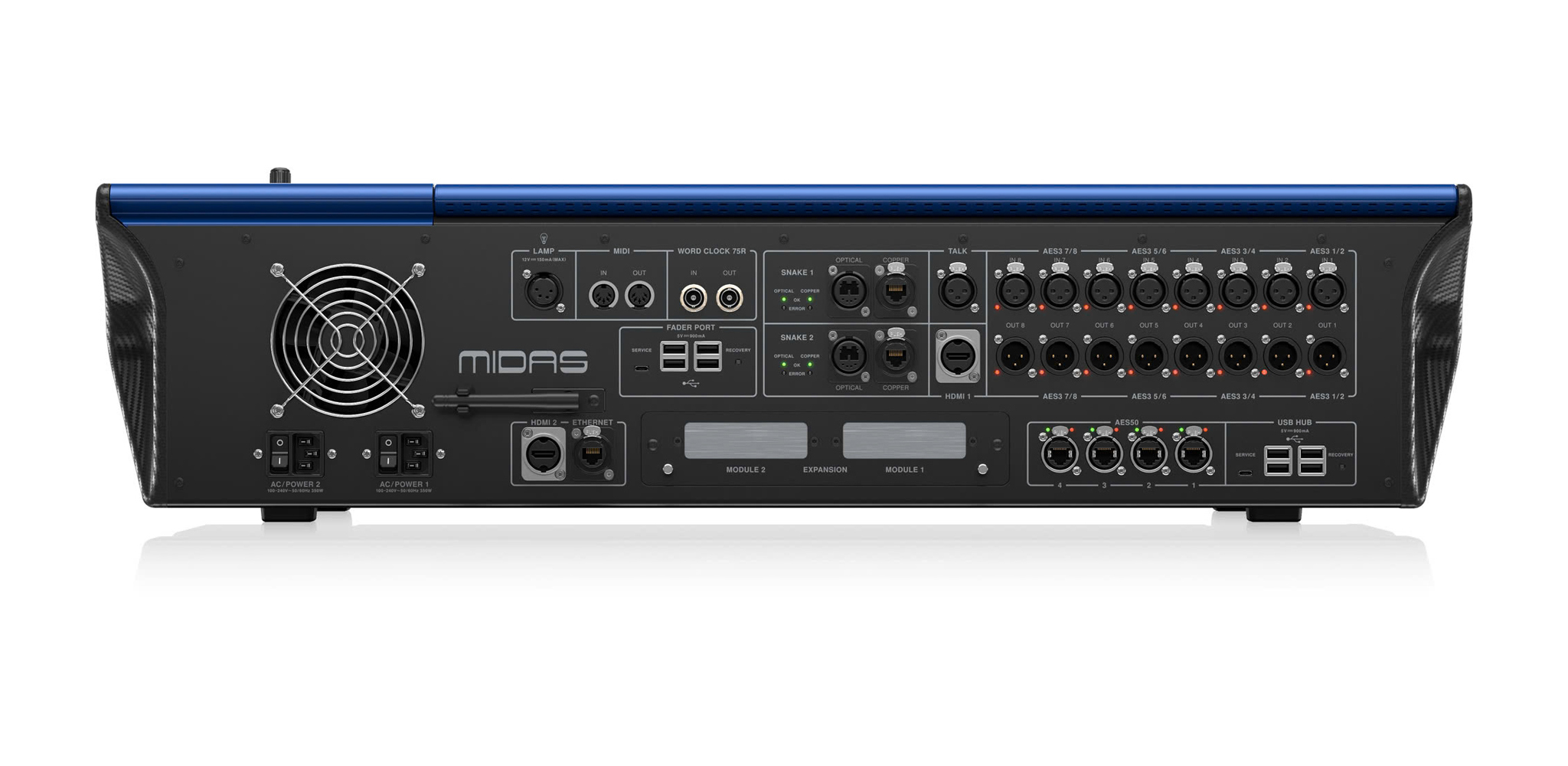

Connections

Analogue / AES3 in, switchable

8 x 3-pin XLR

Analogue / AES3 out, switchable

8 x 3-pin XLR

AES50

4 x RJ45

Word clock 75R

2 x BNC

Talk

1 x XLR, balanced

HDMI 1 / 2 (monitor output)

2 x HDMI

Supported monitor formats

1920 x 1080 p, 59.94 Hz / 60 Hz
16:9 & 720 x 480 p, 59.94 Hz / 60 Hz

External (Ethernet) connector

RJ45 XLR

Snake 1 / 2

2 x optical
2 x copper

USB port

8 x USB 3.0, type A, 5 V = 900 mA power

USB port (service)

2 x USB, micro-USB

USB (top panel)

1 x USB 2.0, type A, 5 V = 500 mA power

Expansion

2 x expansion module slots

MIDI in / out

2 x 5-pin MIDI DIN sockets

Lamp

4-pin, 12 VDC / 150 mA max

IEC mains socket with power switch

2

Headphone output (side panel)

1 x 1/4" TRS, stereo

Input / Output Characteristics

Analogue input impedance

10 k& OMEGA;

Non-clip maximum input level

+24 dBu

Input gain

Analogue stepped gain -2.5 dB to +45 dB plus -40 dB to +20 dB continuous digital trim

Phantom power (switchable per input)

+48 V

Talk mic impedance

5 kΩ

Talk mic gain

+15 dB to +60 dB

Talk mic max level

+6 dBu

Analogue output impedance

50 Ω

Analogue output max level

+21 dBu

Dynamic range

106 dB, 22 Hz to 22 kHz, unweighted

Crosstalk @ 1 kH

-100 dB physically adjacent input channels

Crosstalk @ 10 kHz

-90 dB physically adjacent input channels

Headphones output impedance

10 Ω

Headphones maximum output level

+21 dBu

Displays

Display screen,

21" LCD high brightness 1920 x 1080 px, captive touchscreen up to 10 simultaneous touches

LCD info displays

15 x full colour LCD info displays,
24 mm x 24 mm (size), 240 x 240 px

Meters

4 x 20 segment -36 dBu to +21 dBu

Controls

100 mm motorized faders

3

Fully assignable rotary controls

8

Fully assignable backlit buttons

8

Phones controls

Min to max, mutable

Talk

Talk gain min to max

Global assignal shortcut buttons

24

Global assignal shortcut buttons (left / right)

2

Power

Switch-mode power supply

2 x auto-ranging 100-240 V (50/60 Hz)

Power consumption

220 W typical 2 x 350W Max

Physical

Operating temperature range

5° C to 45° C (41° F – 113° F)

Storage temperature range

-20°C to 60°C (-4°F – 140°F)

Dimensions (H x W x D)

210.5 x 464.5 x 805.8 mm
(8.3 x 18.3 x 31.7")

Weight without flight case

16.74 kg (36.83 lbs)

Weight with flight case

29.90 kg (65.78 lbs)

Wi-Fi

Antenna

Internal & External dual-band

I‌EEE 802.11a/b/g/n/ac

Supports a/b/g/n/ac device

Frequency range

2.4 GHz (2.4 GHz - 2.4835 GHZ) and
5 GHz (5.15 GHz - 5.825 GHz) operation dependent on region

Max output power

18 dBm (using 5 GHz range)

Bluetooth

Version

5.0 Dual Mode

Power

8 dBm

Compatibility

Supports GAP, SDN, PAN, SPP, IAP, HFP 1.5, GATT, ATTR, IAP, A2DP, ACRP.

Maximum communcation range

30 m typical
