DUO SMPTE OpticalCON Cable Neutrik

Product code: DUO SMPTE      358
4.67/5 in 3 times
Neutrik
  • DUO SMPTE
DUO SMPTE

  • Price only applicable for overseas
  • Technical Support
  • Term of shipment: Ex-Works
  • Pick up at Hoang Bao Khoa LTD company
  • All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Ruggedized and dirt protected fiber optic connection system
Waterproof acc. to IP65 safety standard in mated condition
Accommodates standard optical LC-Duplex connectors
Pre-assembled SMPTE cable with 2 single-mode fibers (PC or APC), 4 copper pins, overall copperbraided shield and stainless steel strength member, strong black PUR outer jacket for abrasion resistance. Suitable chassis connector NO2-4FD-1(-A) offers a ground contact. Not compatible to SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage. For detailed information ask for the White Paper "opticalCON @ SMPTE Indoor Applications". The opticalCON DUO SMPTE cable is suitable for outdoor applications up to 65V.

Official Distributor Certificate

The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.
The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Features & Benefits

  • Ruggedized and dirt protected fiber optic connection system
  • Waterproof acc. to IP65 safety standard in mated condition
  • Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage.
  • Suitable for outdoor applications 65V
  • Accommodates standard optical LC-Duplex connectors
  • Cable connector features rugged all metal housing and heavy duty cable retention
  • Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
  • Reliable Push-Pull locking mechanism
  • Easy to clean, no special tools required
  • Available in different packaging versions
  • Lockable with opticalCON DUO Chassis NO2-4FDW-A / NO2-4FDW-1-A
  • This product is intended and designed for use in combination with NEUTRIK brand connectors only.

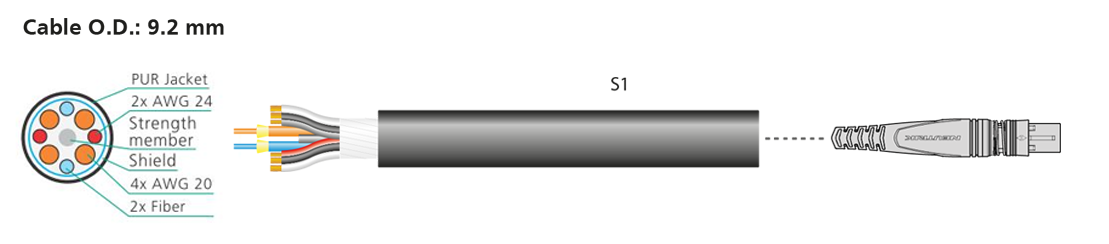

Cable cross section

opticalCON DUO SMPTE - tiết diện cáp

Packaging options and max. cable length

opticalCON-DRUM-Packagin---013456
