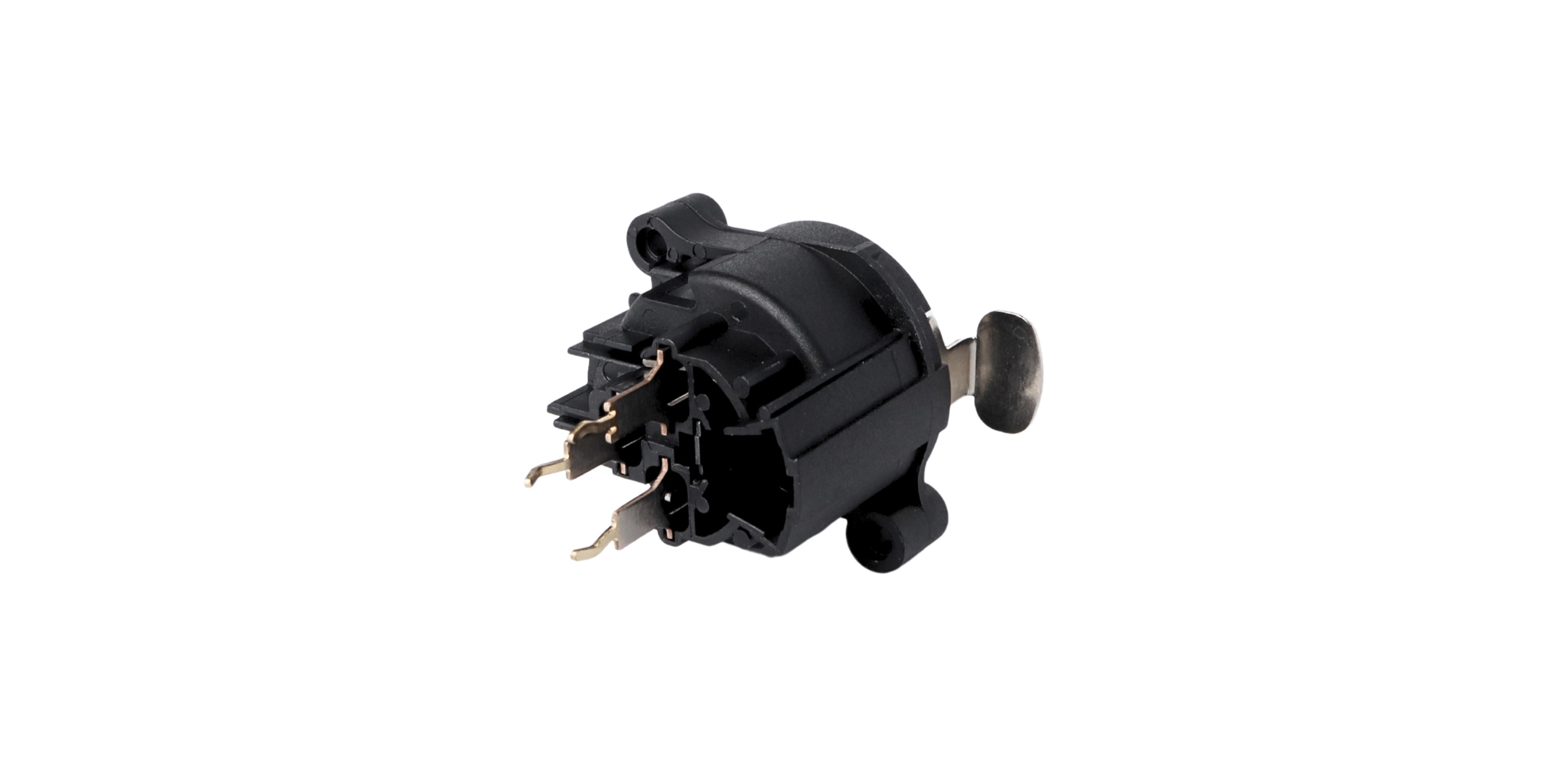

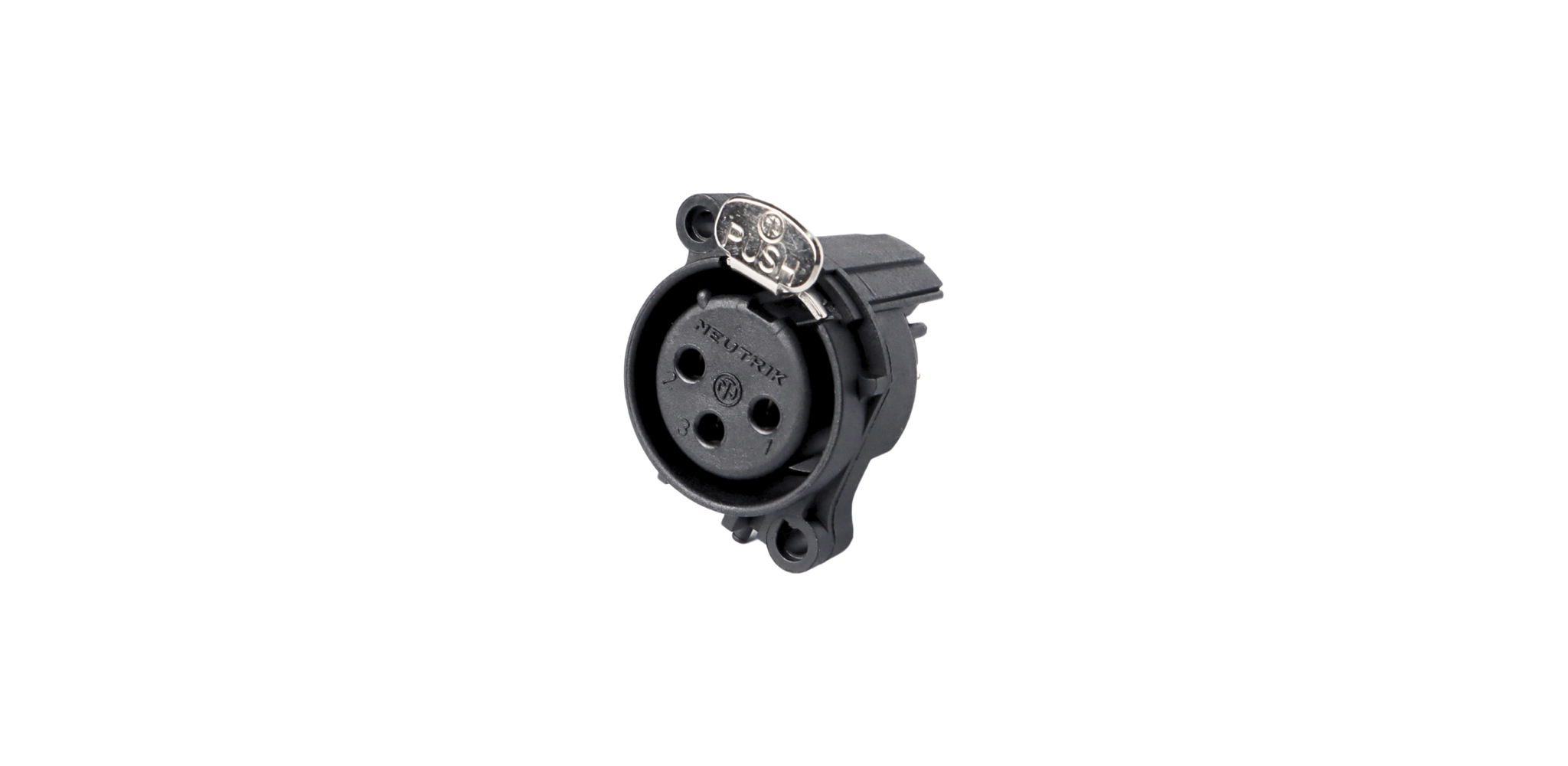

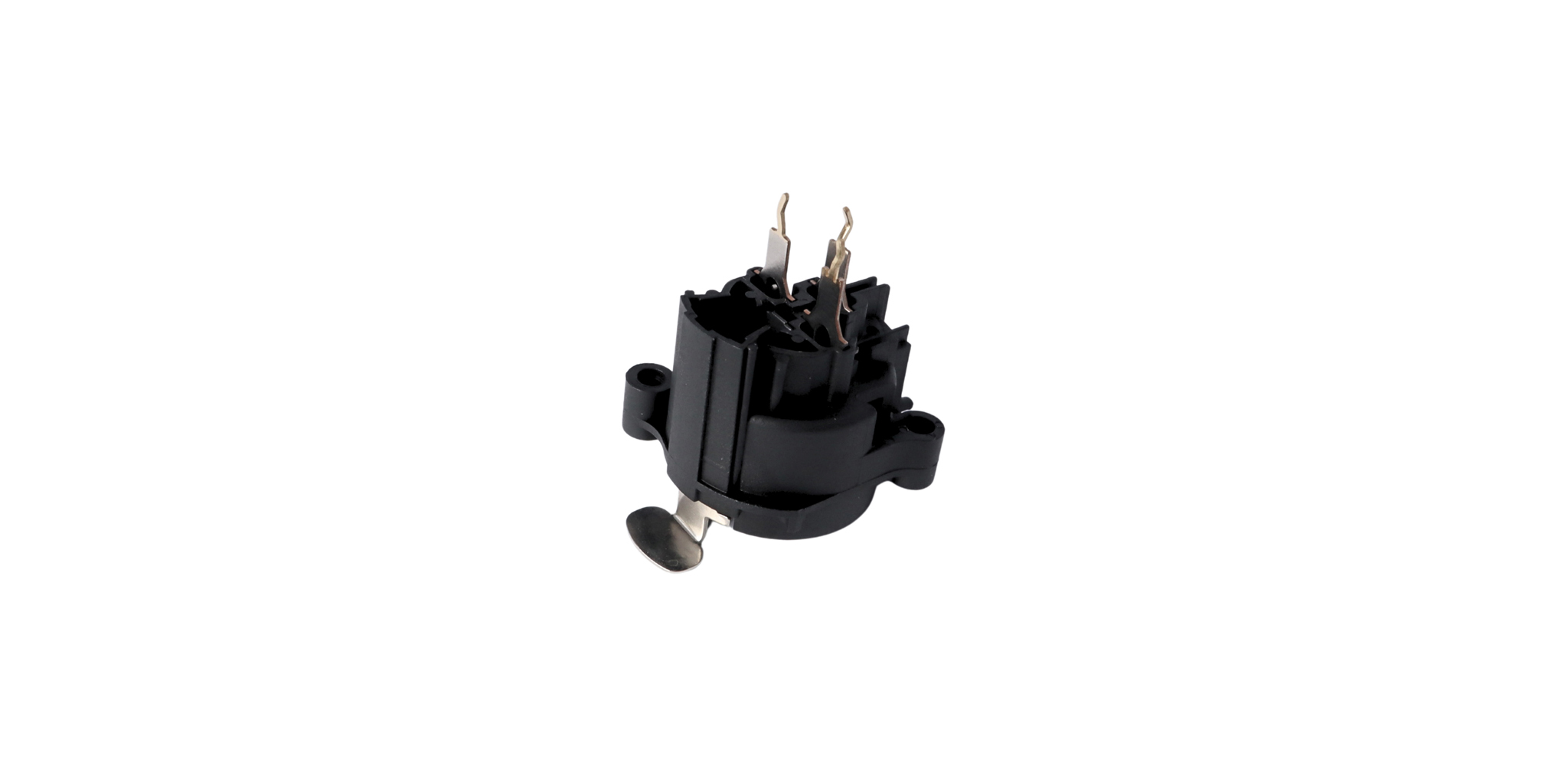

NC3FAAV 3 pole female XLR chassis connector Neutrik

Q: Which brand does NC3FAAV belongs to?

NC3FAAV belongs to Neutrik . NEUTRIK offers premium copper connectors and cables, innovative fiber optic systems and unique digital network devices

Q: How long is the warranty of NC3FAAV?

NC3FAAV is 0 months of warranty.

Product code: NC3FAAV 4,050,956

4.67/5 in 3 times

$0.56

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Most cost-effective series

"Tulip" type contact design with high contact pressure for highest durability

Selective gold plated contact and PCB termination area for best conductivity and solderability

3 pole female receptacle, grounding: without ground/shell contact, vertical PCB mount Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible to A series. "Tulip" type contact design with high contact pressure for highest durability. Push latch assembled. Flammability rating UL94HB. UL recognized component.

Shipping informations

Length

12 cm

Width

12 cm

Height

5 cm

Weight

0.4 kg

Official Distributor Certificate

Neutrik distributor certificate

Features & Benefits

Most cost-effective series
"Tulip" type contact design with high contact pressure for highest durability
Selective gold plated contact and PCB termination area for best conductivity and solderability

Technical Information

Product
Title	NC3FAAV
Connection Type	XLR
Gender	female

Electrical
Capacitance between contacts	≤ 4 pF
Contact resistance	≤ 6 mΩ
Dielectric strength	1,5 kVdc
Insulation resistance	> 10 GΩ (initial)
Rated current per contact	6 A
Rated voltage	< 50 V
Grounding Options	no grounding

Mechanical
Insertion force	≤ 20 N
Withdrawal force	≤ 20 N
Lifetime	> 1000 mating cycles
Wiresize
Wiring	vertical PCB mount
Locking device	Latch lock
Mounting direction	Rear mounting
Chassis shape	A
Mounting	A-Screw

Material
Contacts	Bronze (CuSn6)
Locking element	Steel Ck67
Shell	Polyamide (PA 6.6 30 % GR)

Environmental
Approvals	UL
Flammability	UL 94 HB
Standard compliance	IEC 61076-2-103
Protection class	IP 40
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
