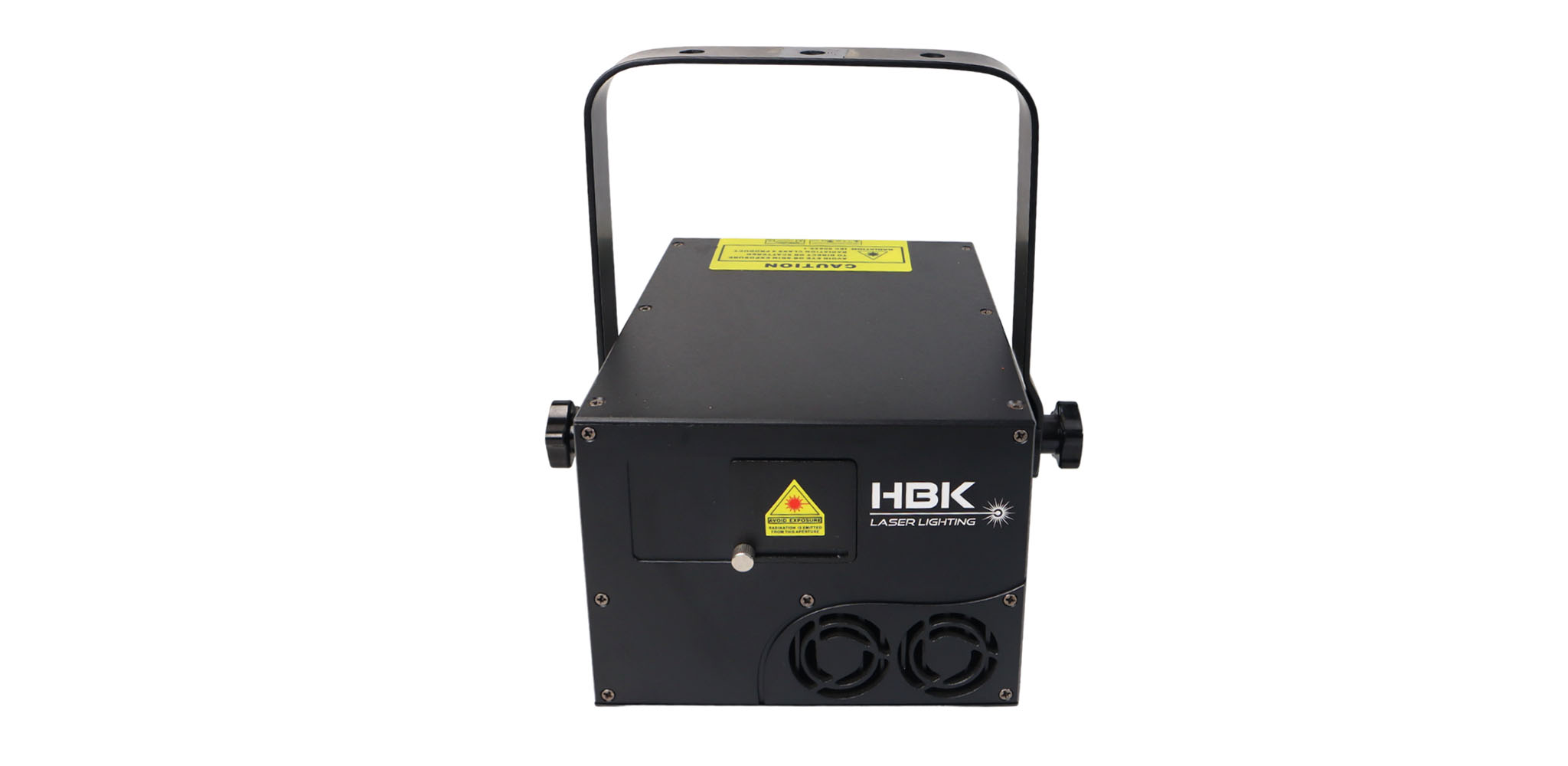

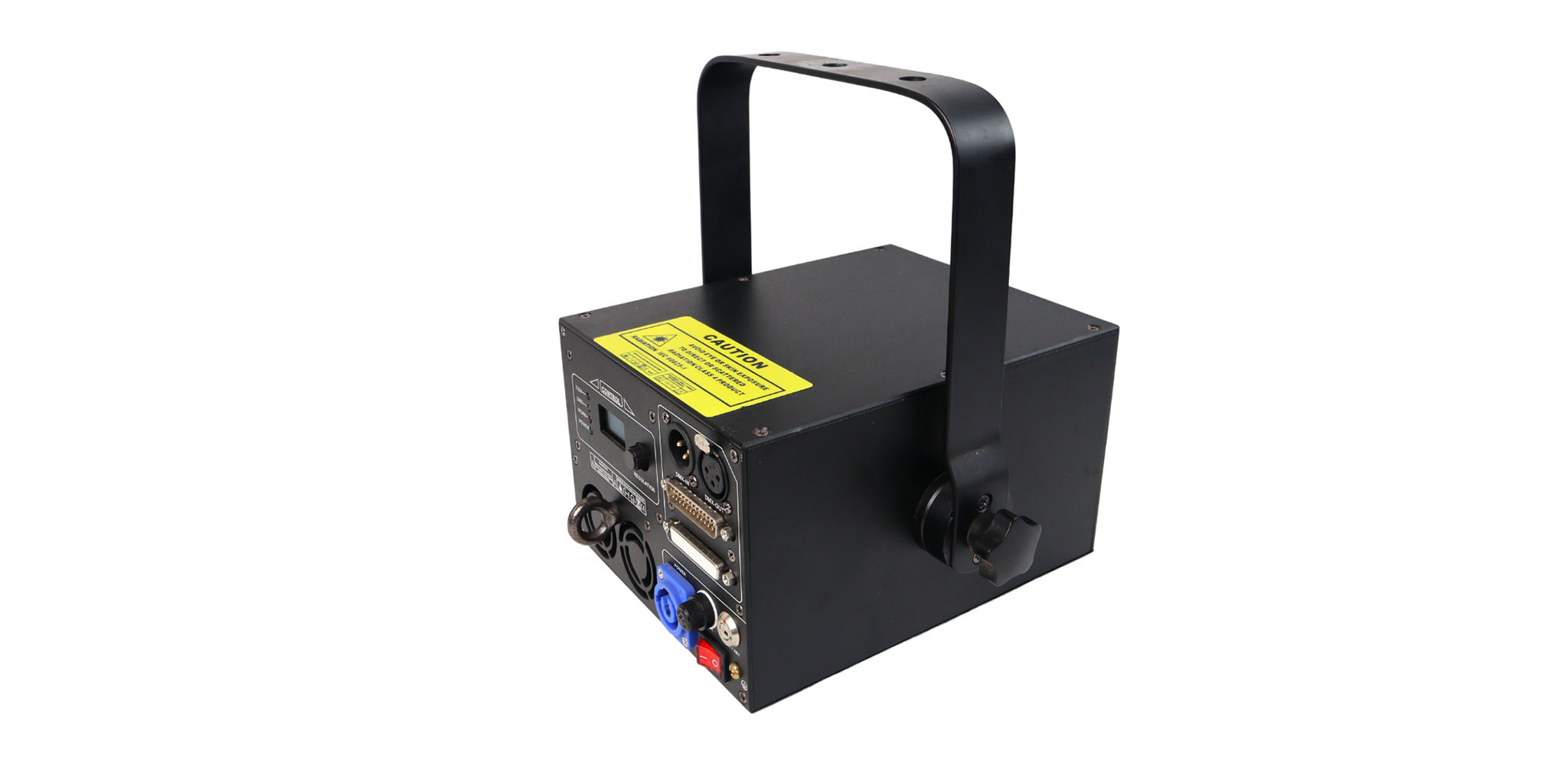

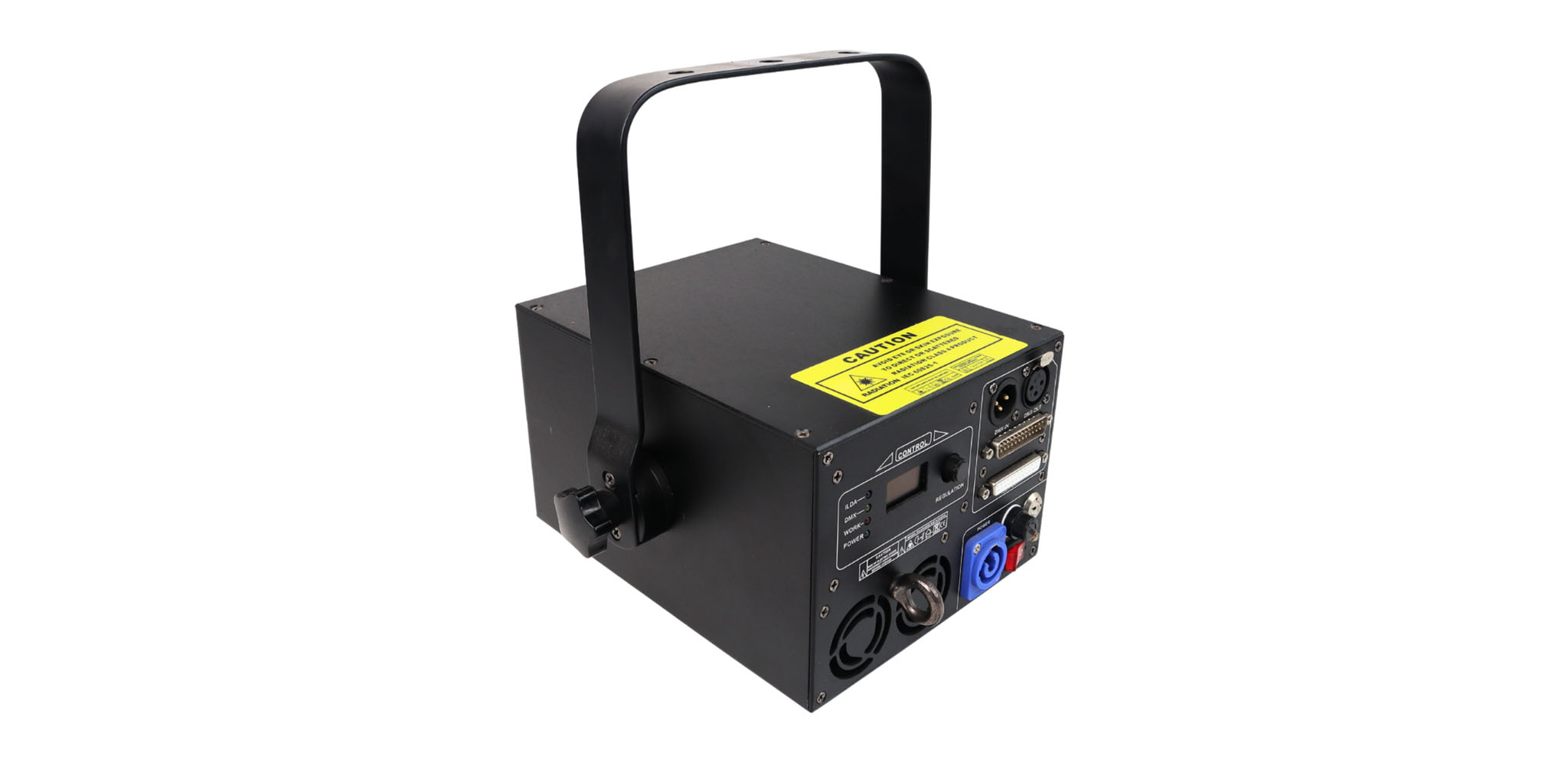

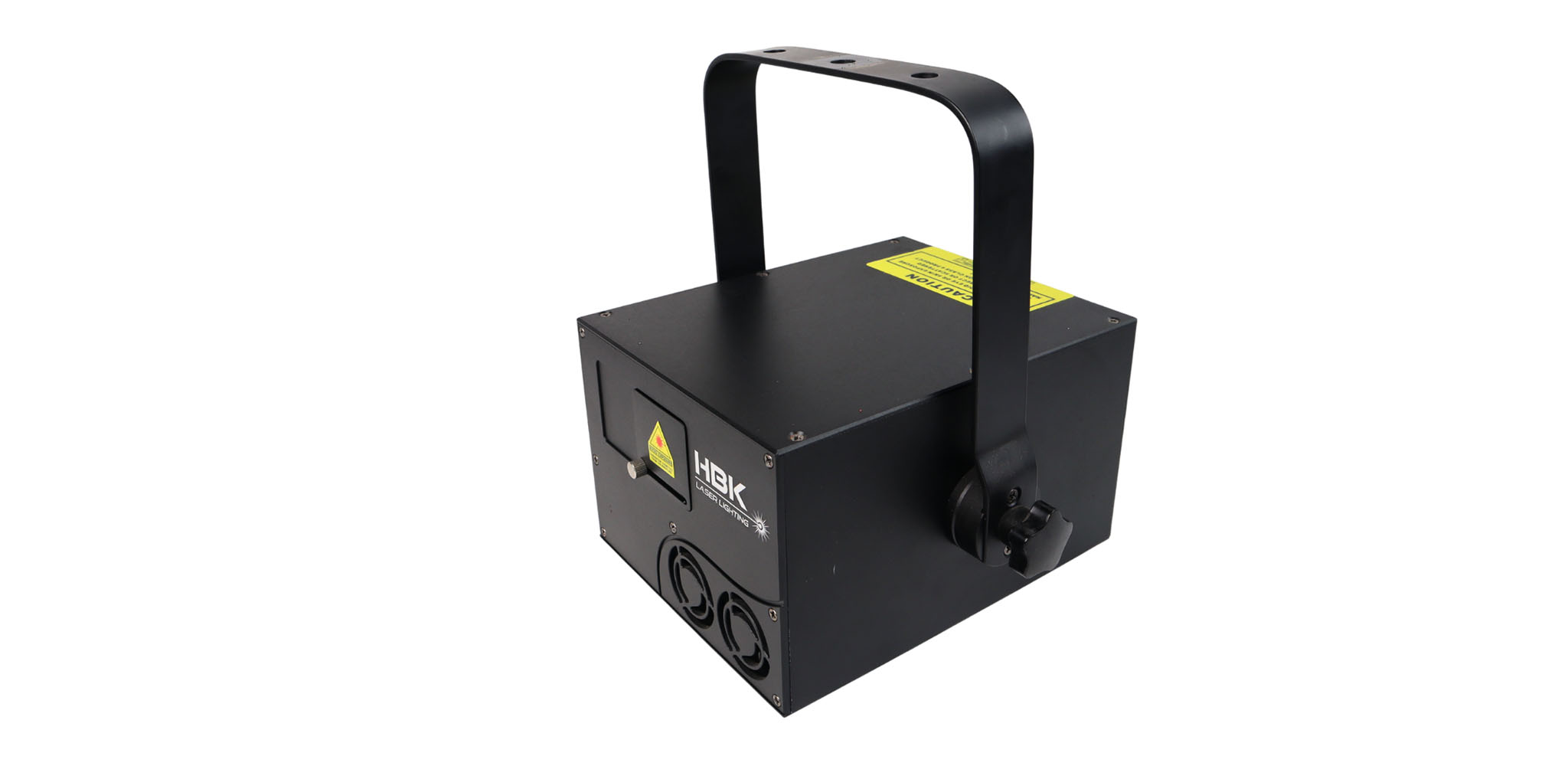

A5-W3000 Performance Laser HBK LASER

Rated voltage and power

AC100~240V 50/60Hz; ≤100W

Scanner

 20kpps,

Scan angle

 max ±25°

Input signal

±5V

Linearity distortion<2%

◎Modulation

 analog

Beam diameter and divergence

 3*6.5mm;1.5mrad

Control mode

 music(blackout)/automatic/master-slave/DMX512(5/17/18/27/52CH)

Control Interface

 3 pin DMX512, DB25 ILDA

Connector ( Pangolin (USA), moncha, etc.)

Demonstration effect

 built-in 160 pattern (7groups×20cues) with 20 groups of animation (1group×20cues)

DMX effect

pattern can output the function of unique blanking, strobe, rotation, movement, zoom, write in, speed and color etc.

Application

 indoor small venue

Package

 carton box

Box size(L*H*W)

 37*32*43cm(2 in 1 )

Gross weight

 10.2kg

Accessories include

 1 x power cabl
