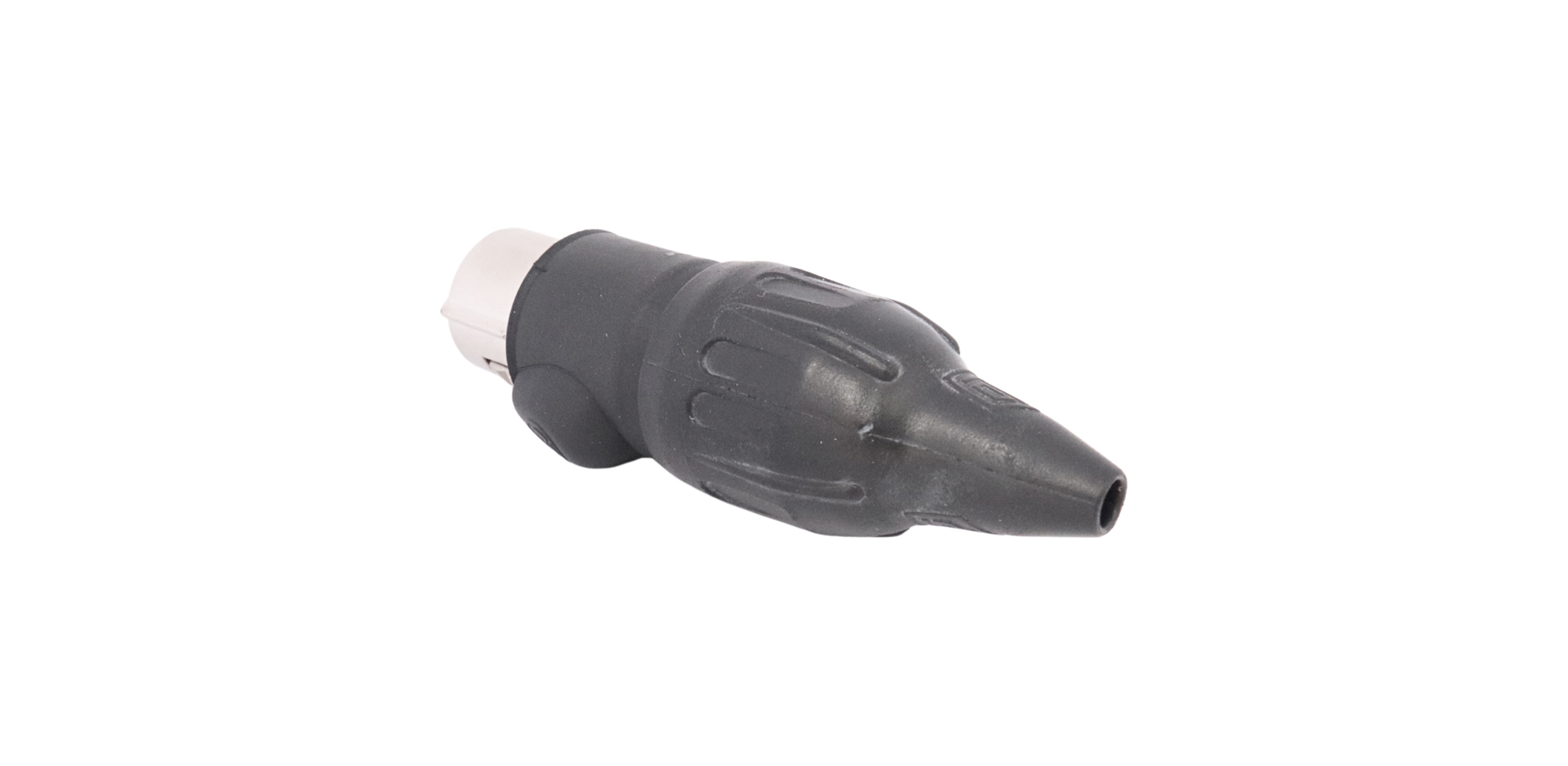

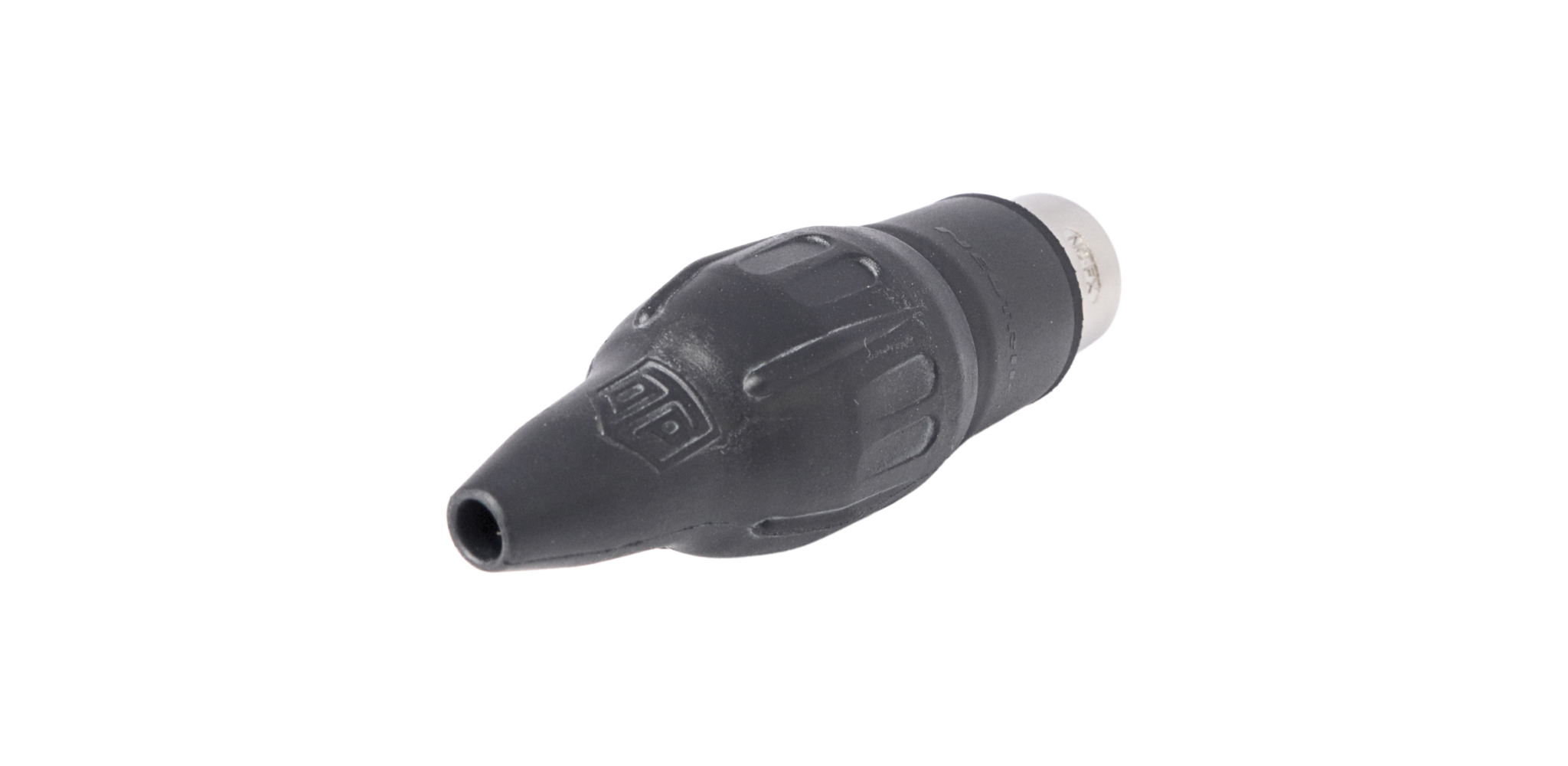

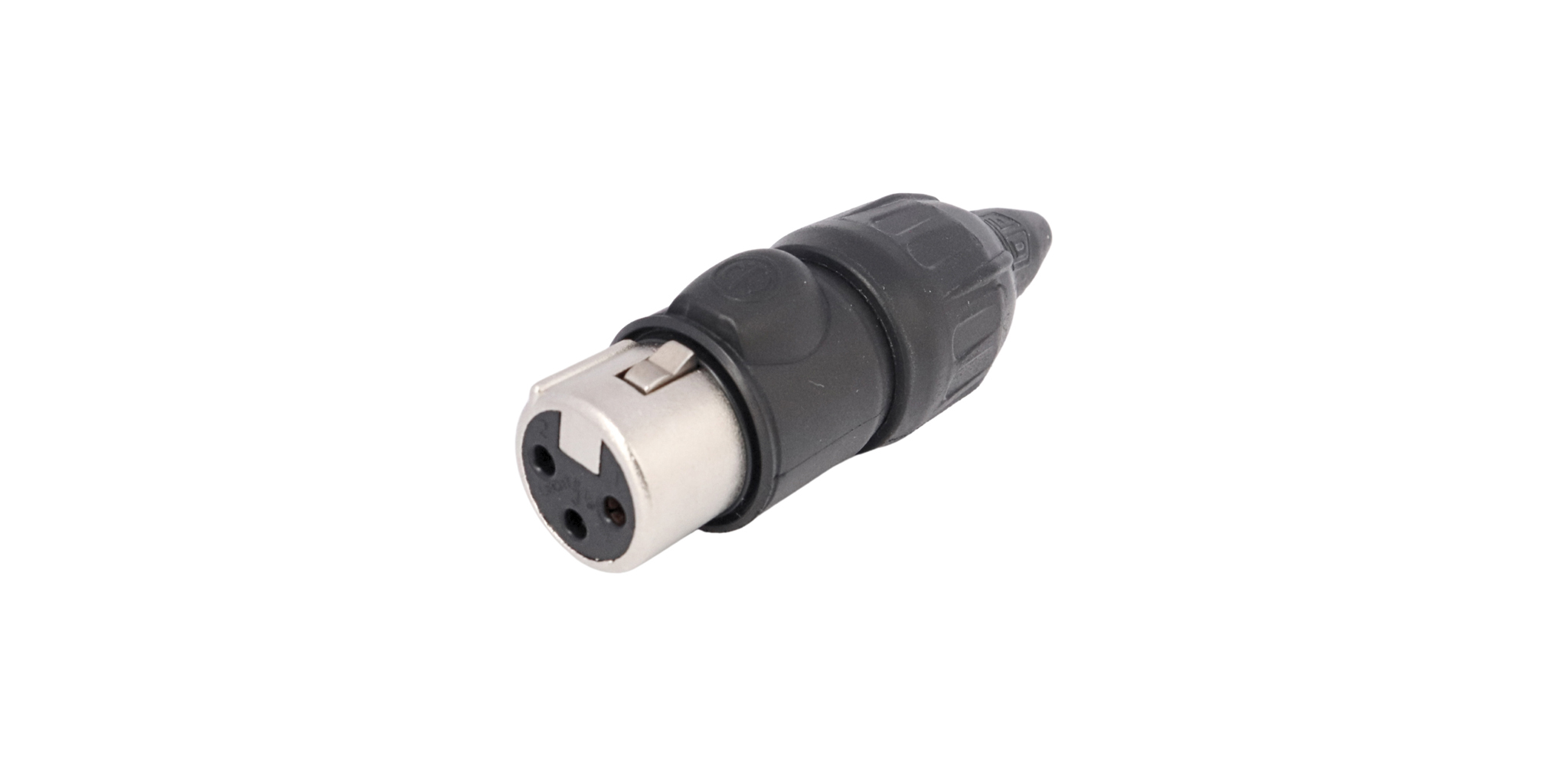

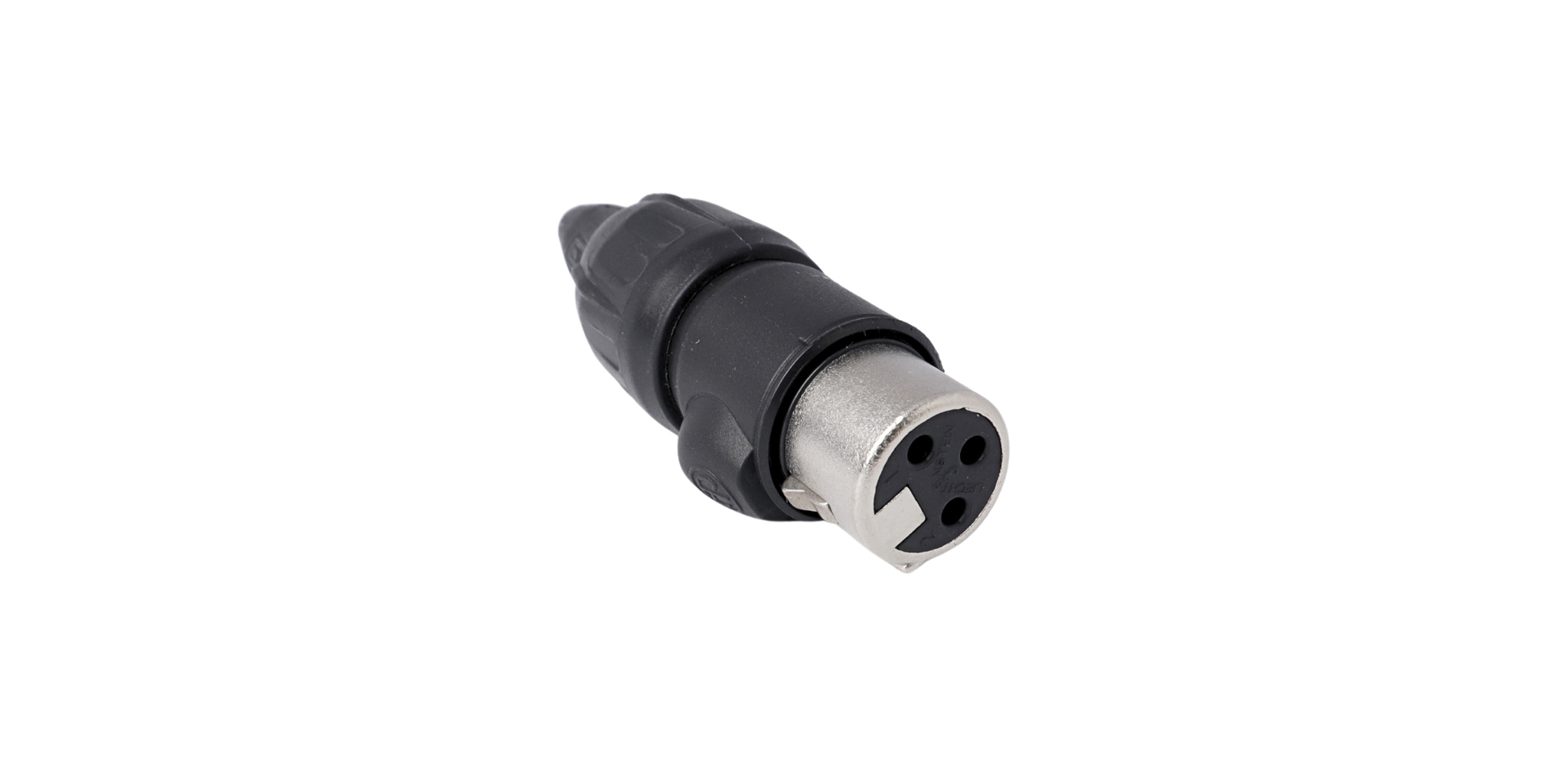

NC3FX-TOP 3 pole female XLR cable connector Neutrik

Q: Which brand does NC3FX-TOP belongs to?

NC3FX-TOP belongs to Neutrik . Neutrik provides the world's leading connectivity solutions: XLR, PowerCON, SpeakON, BNC, and Data jacks. Genuine Swiss quality, 24-month warranty, distributed by Hoàng Bảo Khoa (HBK).

Q: How long is the warranty of NC3FX-TOP?

NC3FX-TOP is 0 months of warranty.

Product code: NC3FX-TOP 4,345,730

4.67/5 in 3 times

$8.78

Plus $34.13 shipping UPS

Plus $36.62 shipping FedEx

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Heavy-duty sealed XLR connector range for harsh and demanding environment

IP65 rating and certified outdoor protection to UL 50E (in combination with a TOP range counterpart)

Uses high impact UV resistant materials

3 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rating and certified outdoor protection to UL 50E by mating with related cable or chassis connector of the XLR TOP range.

CERTIFICATE

Neutrik distributor certificate

Features & Benefits

Heavy-duty sealed XLR connector range for harsh and demanding environment
IP65 rating and certified outdoor protection to UL 50E (in combination with a TOP range counterpart)
Uses high impact UV resistant materials

Technical Information

Product
Title	NC3FX-TOP
Connection Type	XLR
Gender	female

Electrical
Capacitance between contacts	≤ 4 pF
Contact resistance	≤ 3 m& OMEGA;
Dielectric strength	1,5 kVdc
Insulation resistance	> 10 GΩ (initial)
Rated current per contact	16 A
Rated voltage	< 50 V

Mechanical
Cable O.D.	5.0 - 8.0 mm
Insertion force	≤ 20 N
Withdrawal force	≤ 20 N
Lifetime	> 5000 mating cycles
Wiresize	max. 1.5 mm²
Wiresize	max. 16 AWG
Wiring	Solder contacts
Locking device	Latch lock

Material
Bushing	UV-resistant rubber
Contact plating	0.2 µm Au hard alloy over 2 µm Ni
Contacts	Bronze (CuSn8)
Insert	Polyamide (PA66)
Locking element	St3K32 (latch) / Ck 67 (spring)
Shell	Zinc diecast (ZnAI4Cu1)
Shell plating	Nickel
Strain relief	Polyacetal (POM)
Sealing jacket	UV-resistant rubber

Environmental
Approvals	UL
Flammability	UL 94 V-0
Standard compliance	IEC 61076-2-103
Protection class	IP65, UL50E enclosure type 4 (mated)
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
