| Product Name |
ELITE 60 PRO (IP65) |
| Type of Laser |
Full-colour, Semiconductor diode laser system |
| Guaranteed Optical Output |
>60 W |
| Suitable For |
Lighting professionals: Stadium, Arena (over 40,000 people), huge outdoor shows. Beam show, text, graphic, and mapping capable. |
| Control Signal |
Pangolin FB4 DMX (Ethernet, ArtNet, DMX, sACN, PC, Lighting Console, Auto Mode, Mobile App: Apple, Android) |
| Scanning System |
30 Kpps @ 8° |
| Scan Angle |
45° |
| Safety |
Fully complies with the latest EN 60825-1 and FDA regulations. |
| Weight |
33 kg |
| Laser Power (R / G / B) |
20 W / 20 W / 20 W |
| Wavelength (R / G / B) |
638 nm / 525 nm / 450 nm |
| Beam Size |
7 mm × 7 mm |
| Beam Divergence |
<1.2 mrad (Full Angle) |
| Modulation |
Analog 100 kHz |
| Power Requirements |
100–240 VAC, 50/60 Hz |
| Power Consumption |
Max. 1200 W |
| Operating Temperature |
-10 °C to 45 °C |
| Ingress Rating |
IP65 |
| System Features |

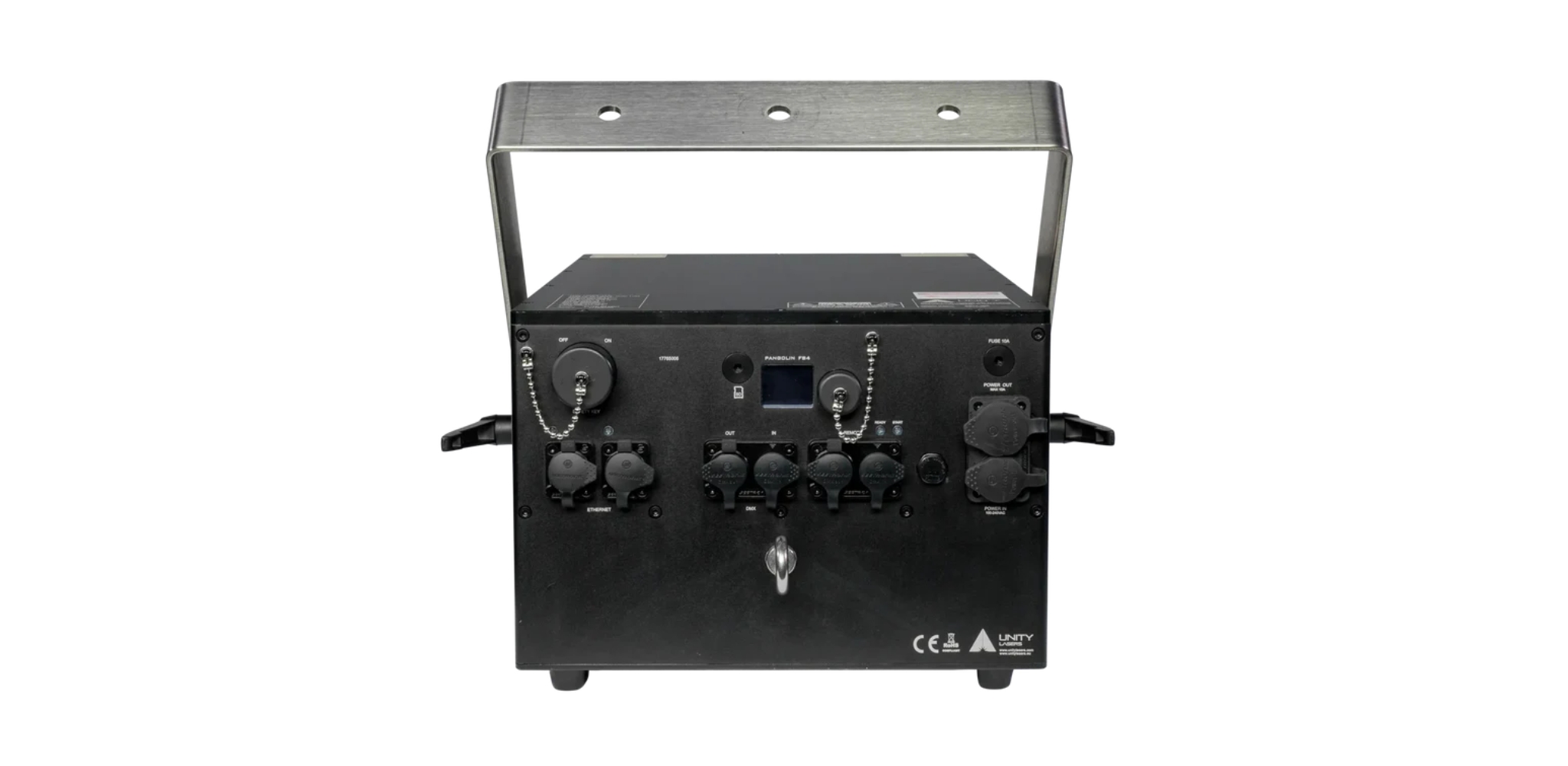

Digital adjustment of laser power output, X/Y axis invert, X/Y size and position, safety settings via FB4. Ethernet In/Out, Power In, DMX In/Out, Estop In/Out. |
| Laser Safety Features |
Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate. |
| Dimensions (D × W × H) |
511 × 457 × 226 mm |
| Package Includes |
Laser projector with FB4 DMX, IP65 housing, heavy-duty flight case, Estop box, Estop cable (10 m / 30 ft), Ethernet cable (10 m / 30 ft), Power cable (1.5 m / 4.5 ft), Interlock, Keys, Outdoor RJ45 connectors, Manual, Quick Start Guide, Variance card (*Service dongle if outside US). |
| Notice |
Due to the Advanced Optical Correction technology used in the laser system, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output. |
