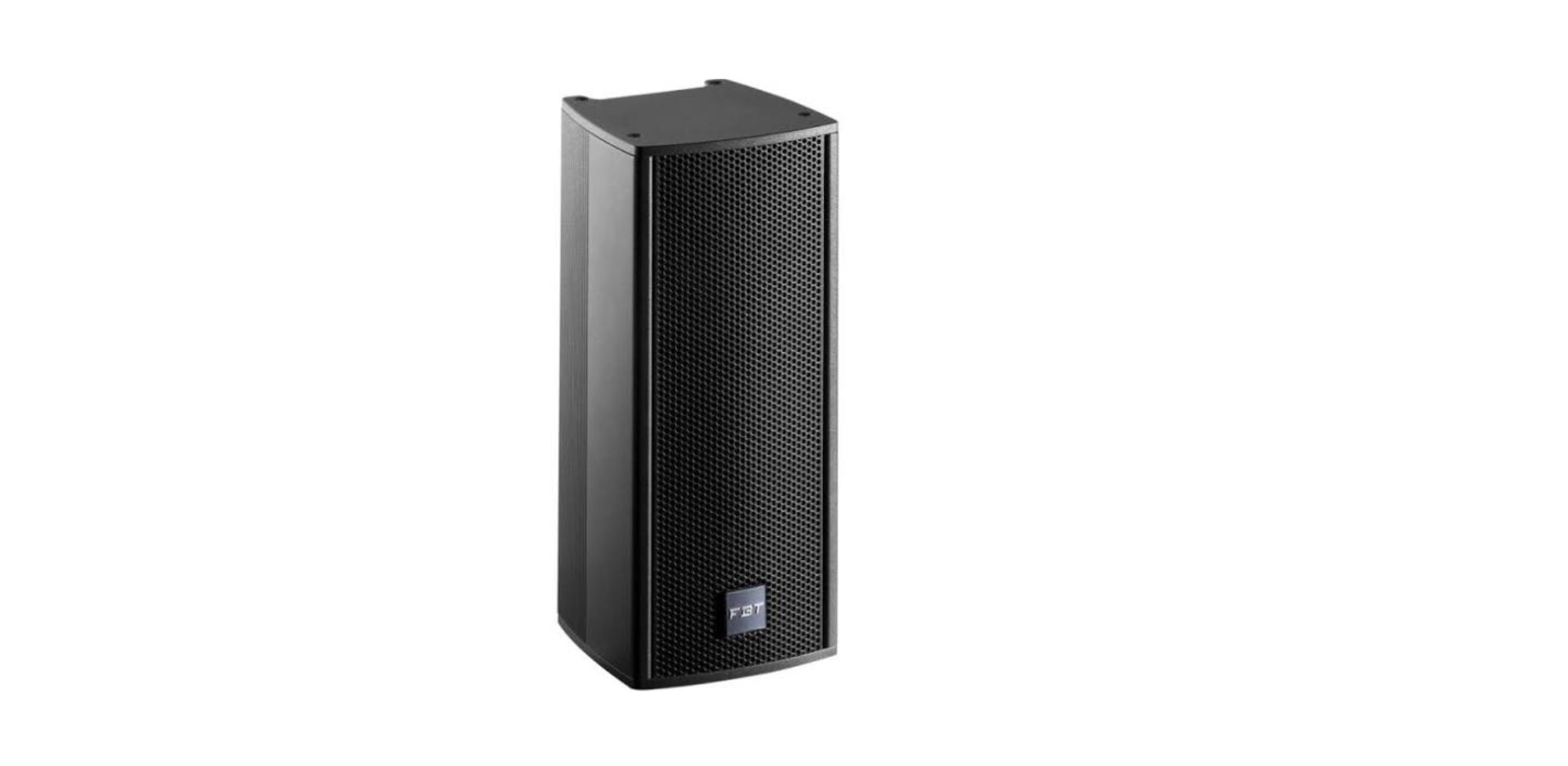

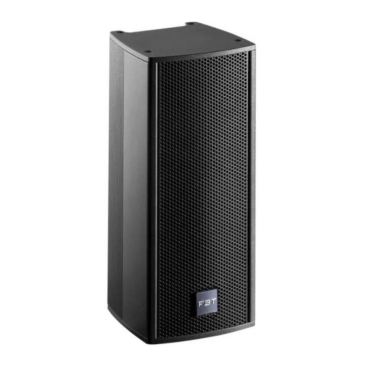

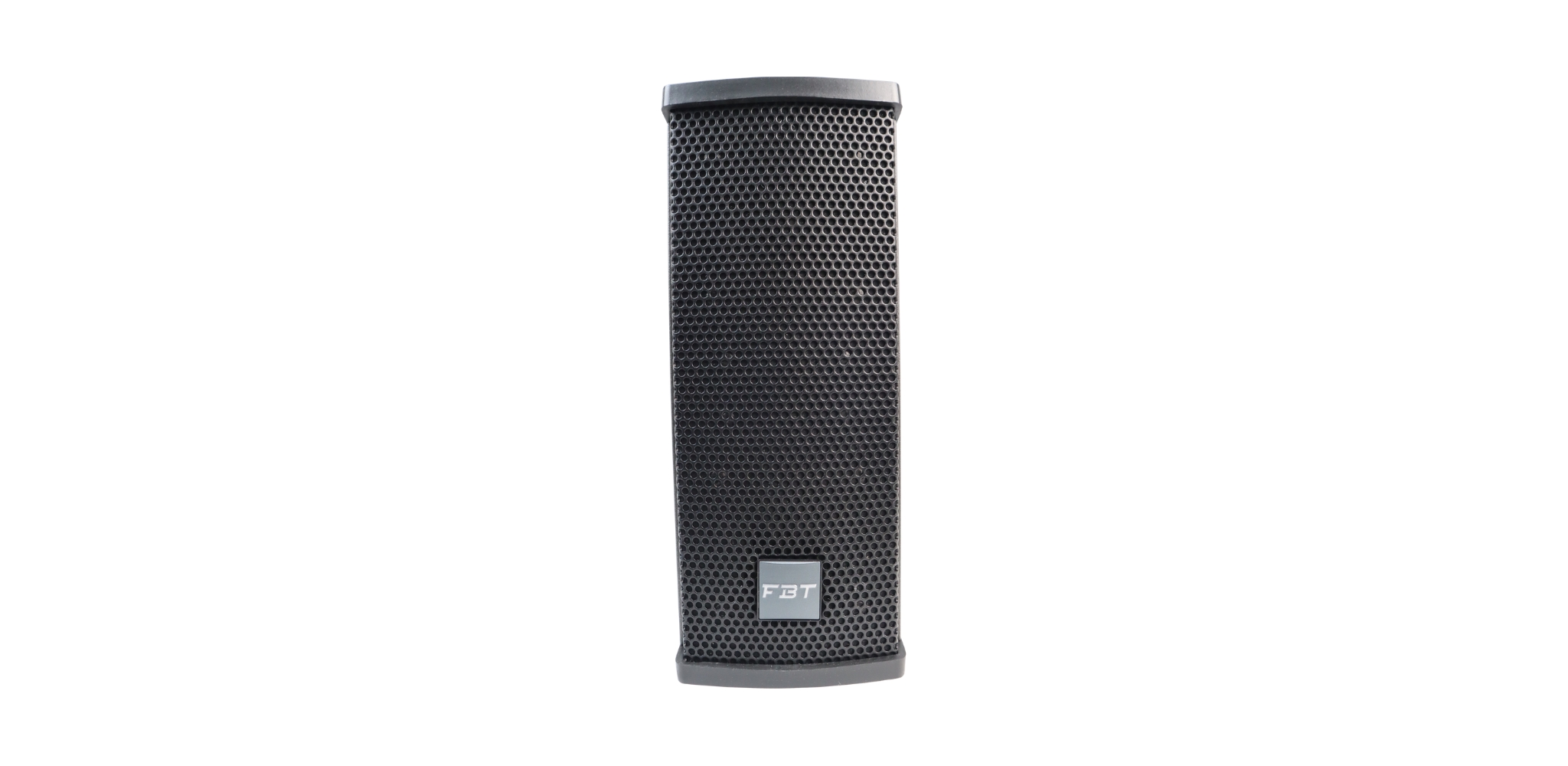

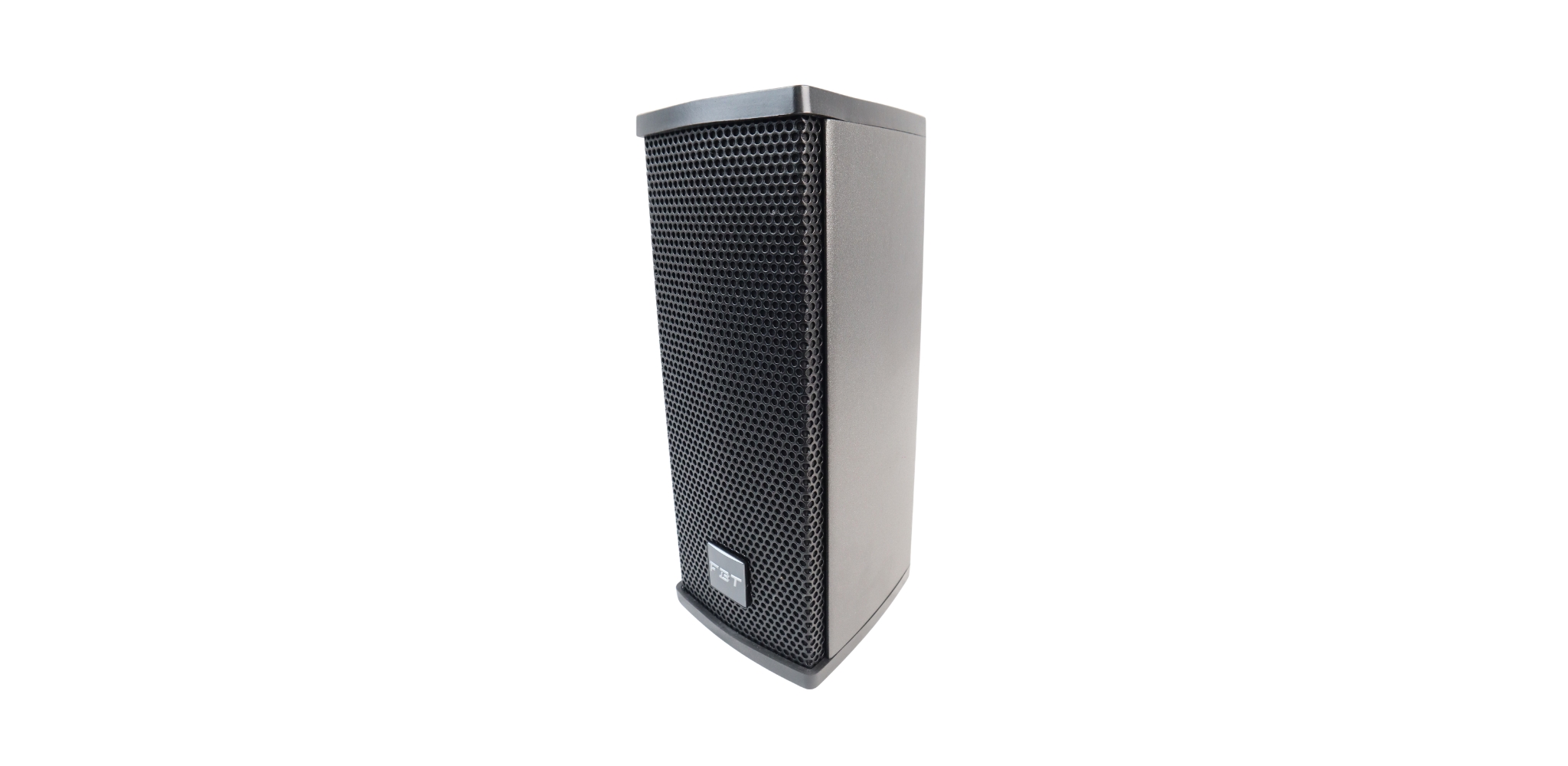

VERTUS CLA 203T is a passive 2-way column speaker designed for fixed indoor installations where compact dimensions, intelligibility, and design integration are key. It incorporates two custom 3″ woofers with 0.75″ voice coils and a 1″ neodymium dome tweeter, housed in an extruded aluminum enclosure available in black or white finish.
The speaker includes a switchable 70V/100V transformer with power taps at 30/20/10/5W, as well as an 8 Ohm low-impedance input. Connections are made via ceramic screw-terminal block with IN & through wiring. CLA 203T is IP55-rated and EN 54-24 certified, making it suitable for voice alarm and emergency systems.

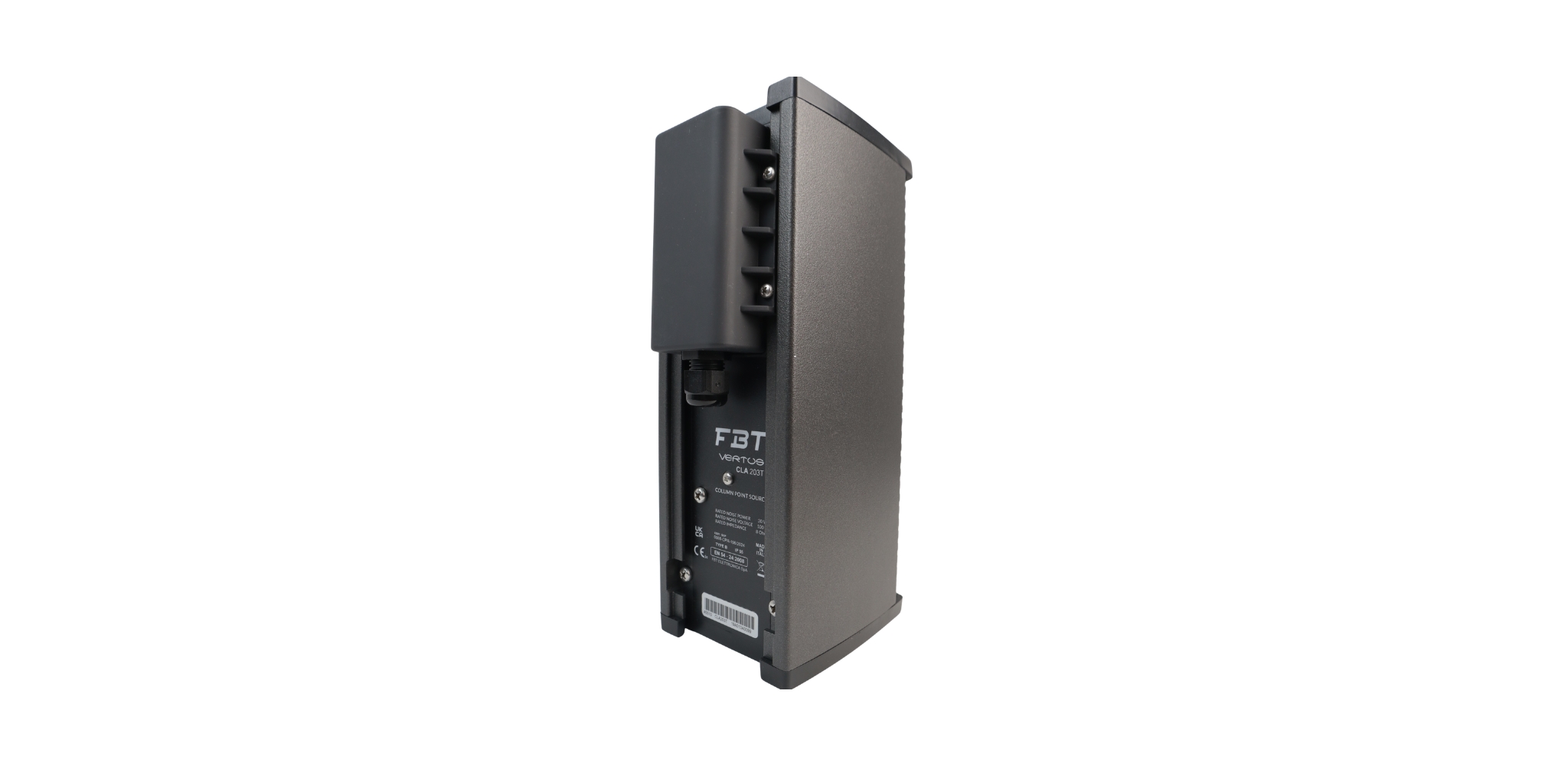

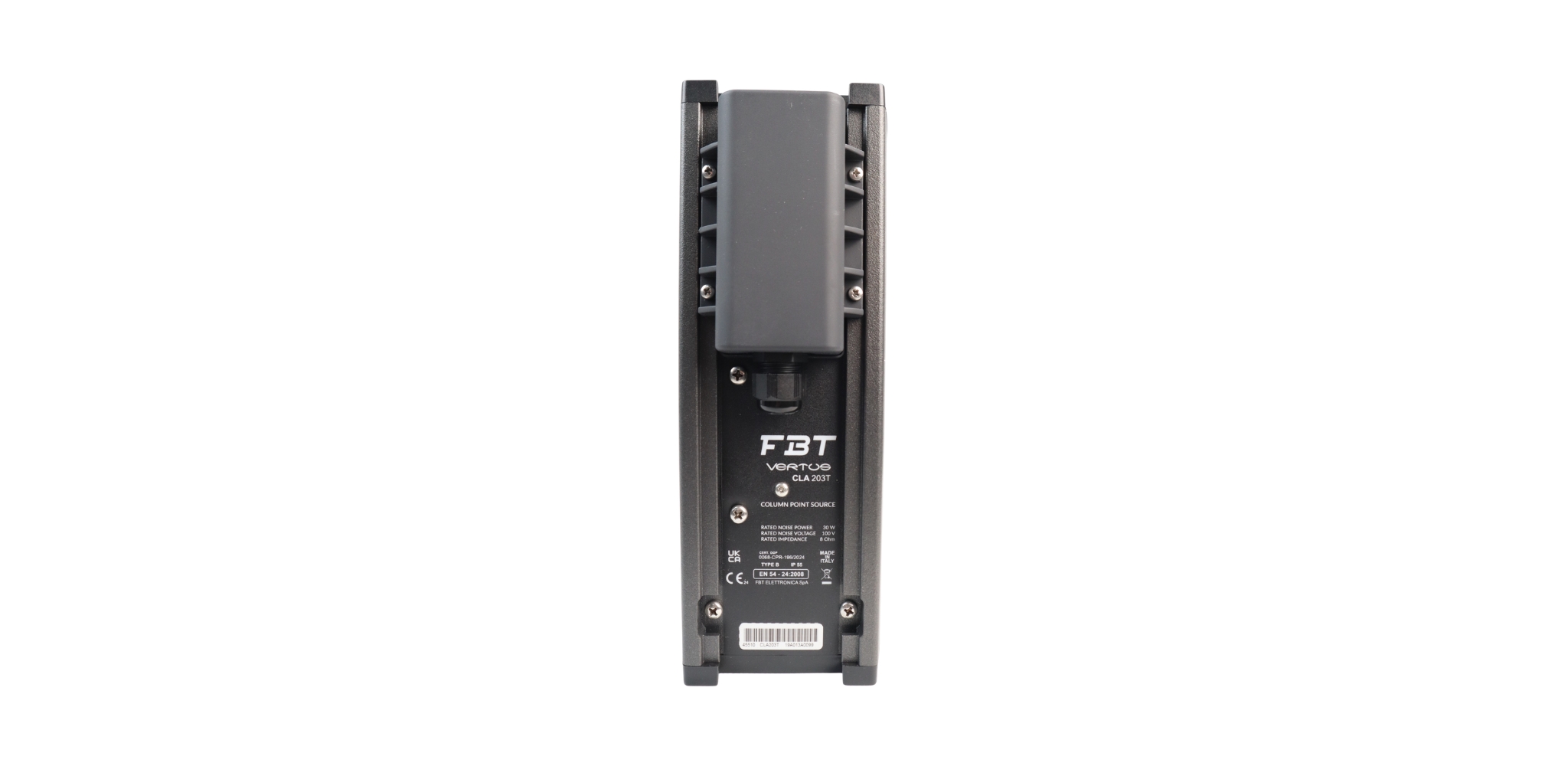

With 160 Hz–20 kHz frequency response and SPL of 101 dB, it ensures full-range coverage for speech and background music applications. Four rear fixing points support horizontal or vertical mounting using the optional WM-23 directional bracket
-
Configuration: 2-way
-
Low Frequency Woofer: 2 × 3″ – 0.75″ VC
-
High Frequency Driver: 1″ neodymium dome tweeter
-
Recommended Amplifier: 60W RMS
-
Transformer: 70V/100V – taps: 30 / 20 / 10 / 5 W taps
-
Maximum SPL: 101 dB
-
Material: Extruded aluminum with steel grille
| Code |
45510 (Black) / 45351 (White) |
| Configuration |
2 way |
| Recommended amplifier |
60W RMS |
| Long Term power |
--- |
| Short term power |
--- |
| Nominal impedance |
8Ohm |
| Frequency response |
160Hz - 20KHz @-6dB |
| Low Frequency woofer |
2 x 3'' - 0.75'' VC |
| High frequency driver |
1'' dome |
| Sensitivity (@1W/1m) |
87 |
| Maximum SPL cont/peak |
101/89 (@1W/1m) |
| Dispersion |
120°x110° HxV (2kHz) |
| Crossover Frequency |
--- |
| Recommended HP filter |
140hz - 24dboct |
| Recommended external filter |
--- |
| Input connector |
ceramic screw bloc |
| Net Dimension (WxHxD) |
100 x 249 x 125mm / 3.9 x 9.8 x 4.9 inch |
| Net Weight |
1.5 Kg / 3.3 lb |
