PQ18B Loa Sub Passive 2,800W 18" Turbosound

Construction and Connectivity

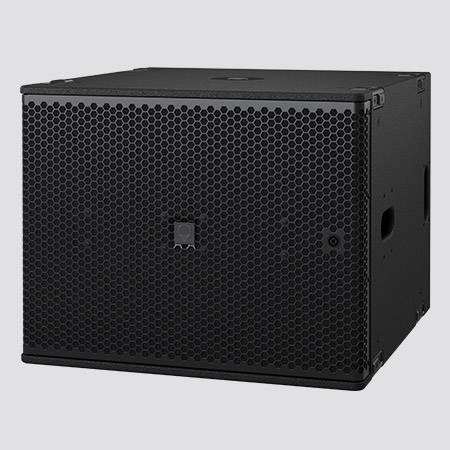

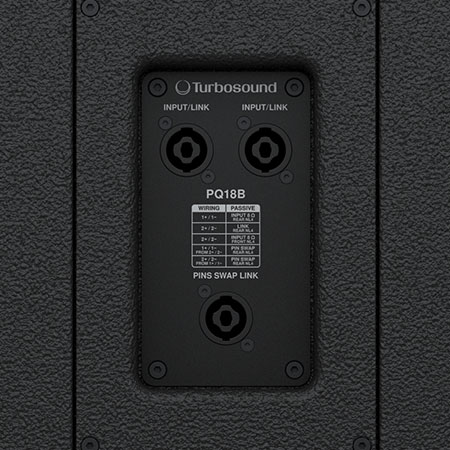

Finished in a highly durable semi-matt black paint, the cabinet is constructed from 15 mm (5/8") and 18 mm (3/4”) plywood – and includes a rugged powder coated foam backed perforated braced steel mesh grille. The rear panel connector plate carries industry-standard twist-locking speaker connectors for input, link and pin swap connections to additional enclosures. The front grille also has a twist-locking speaker connector to allow neat cabling when the enclosure is deployed in cardioid mode.

Integration with Lab Gruppen IPX 4800 and PLM+

With the ever-increasing complexity of modern-day sound systems. Seamless integration with the Lab Gruppen IPX4800 and PLM+ is a prerequisite for the PQ series from Turbosound. Our engineers have prepared and meticulously designed a series of presets that will allow the user to achieve the maximum system performance and consistency possible. These can be found within the download section. Future FIR capable platforms from Lab Gruppen will be supported.

Acoustic Simulation Tools

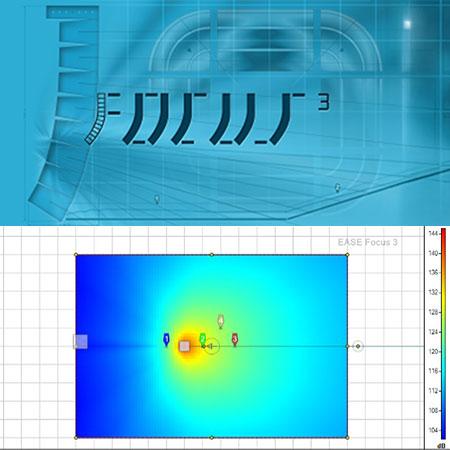

EASE GLL files are provided for the EASE Focus 3 Acoustics Simulation Software, which is available for free download. This allows accurate calculation of acoustic coverage, matching simulation strategy to DSP pre-sets with a selection of traditional forward facing, cardioid and reversed end fire pre-sets.

Architecture and Engineering Specifications

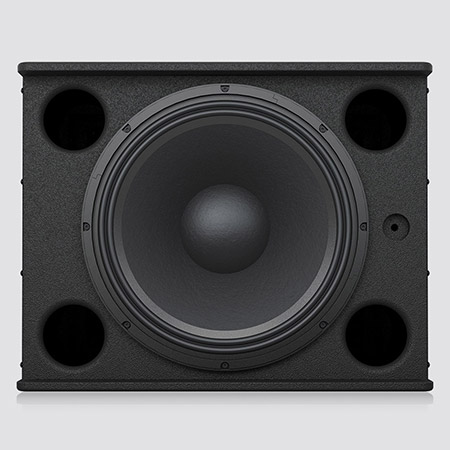

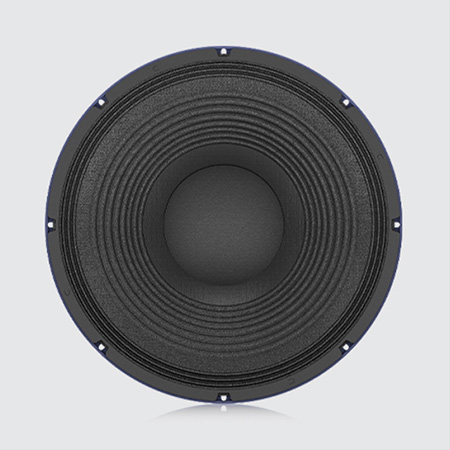

The loudspeaker shall be of the passive subwoofer type, consisting of one 18" (460 mm) LF driver. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 45 Hz to 200 Hz and within -10 dB from 32 Hz to 3 kHz. Nominal dispersion shall be “half space.”

Maximum amplifier output power shall be 2,800 Watts peak, Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be LF: 99 dB, 1 Watt @ 1 metre. Peak level at 1 m under half space conditions using IEC 268-5 pink noise with crest factor 4, with dedicated pre-set, shall be 138 dB.

Dimensions: 520 mm high x 660mm wide x 687 mm deep (20.47” x 25.98” x 27.05"). Net weight: 47.9Kg (105.6 lbs). The loudspeaker system shall be the Turbosound PQ18B. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance/size specifications are equalled or exceeded.
