Digitally steerable column array speaker system provides high intelligibility speech and music reproduction
16 4" low frequency drivers, 16 3" low frequency drivers and 16 1" high frequency drivers with individual 100 Watt Class D amplifiers
Class leading ±70° steering control with 48 channels of integrated DSP and amplification
Intuitive BeamEngine GUI for asymmetric pattern creation and even near and far field SPL coverage
High density array of transducers with proportional frequency spacing prevents aliasing artefacts
Ideal for the most challenging acoustic environments due to extended frequency range steering control
For installation applications with coverage distances up to 80 m (262')
Fully PA/VA compliant
Fully integrated amplified speaker system connects to other Tannoy products via VNET
Input accessory options for constant voltage systems and Audinate Dante* digital audio networks
All components weather and dust resistant to IP54
Architecturally styled aluminium enclosure with a semi matt white painted finish
Corrosion resistant aluminium perforated grille
Included custom brackets allow quick and accurate installation
AES3 input and link connections on RJ-45 connectors with internal sample rate conversion up to 96 kHz
1-Year Warranty Program*
Designed and engineered in the U.K.

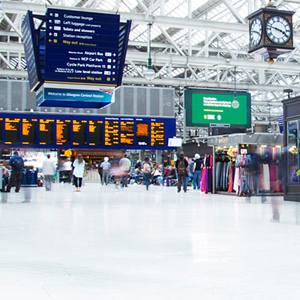

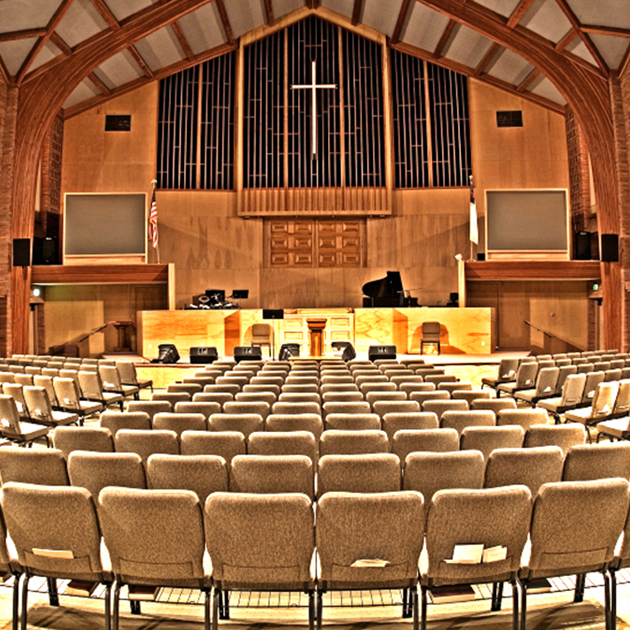

The QFLEX 48-WP is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centres, conference facilities, shopping malls, performing arts centres and museums. Certified for water and dust ingress protection to IP54 standard, QFLEX 48-WP is an exceptional choice for indoor swimming pools or work areas with unusually high levels of dust or moisture, as well as outdoor applications where weather conditions are moderate. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility, impactful music reinforcement, and complete loudspeaker system diagnostics and monitoring.
While many competing steerable arrays allow only a modest steering range across specific frequencies, the QFLEX 48-WP has a class-leading ±70° steering control, plus 48 channels of integrated DSP and amplification for consistent and highly intelligible full-range voice and music applications.

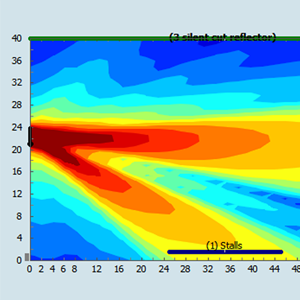

The first digitally steerable column array loudspeaker of its kind, QFLEX 48-WP’s revolutionary BeamEngine technology steers the the full-range sound away from surfaces that cause reflections. The intuitive BeamEngine GUI allows the designer to specify target areas. Rather than only providing a limited palette of opening and steering angles, the BeamEngine GUI generates a steering algorithm that is tailored for that specific area. The resulting asymmetrical pattern delivers similar sound pressure levels (SPL) in both the near and far field for superb coverage and intelligibility – all in a very aesthetically-pleasing package.
The QFLEX 48-WP column array loudspeaker comprises sixteen 4" low frequency drivers, sixteen 3" low frequency drivers and sixteen 1" high frequency drivers, each with their own individual 100 Watt Class D amplifier and integrated cutting edge DSP. Presented in a high density array with proportional frequency spacing, QFLEX 48-WP’s drivers provide digitally-steerable coverage for distances up to 80 m (262’) – with no aliasing artefacts. A robust internal DSP engine works seamlessly with the proprietary VNET and BeamEngine software, both of which are available for free download at tannoy.com.
Designed to provide premium-grade performance as a standalone self-powered column array, QFLEX 48-WP is also an exceptional choice for multiple-column configurations consisting of other TANNOY VNET enabled products. Implementation of the network between nodes is via high-quality rugged Neutrik Ethercon connectors, which are compatible with standard RJ45 plugs, and CAT5 cable. Each speaker has a unique address for auto-location on the network.

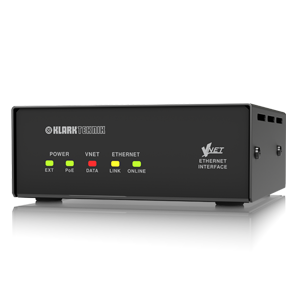

A wide range of accessory options are available for the VNET-enabled QFLEX 48-WP including: The VNET ETHERNET INTERFACE; VNET USB RS232 INTERFACE; VNET2-AES INTERFACE, VNET INTERFACE POWER SUPPLY; VNET INTERFACE RACK MOUNT; SENTINEL SM1, for monitoring VNET networked PA/VA systems, as well as the QFLEX ISOLATOR, for eliminating potential ground/hum issues.
In addition to its IP54 water and dust resistance certification, QFLEX 48-WP’s high level of telemetry functionality renders it fully PA/VA compliant for use in any life safety or mass notification environment.
The architecturally styled corrosion resistant aluminium enclosure and perforated grille are finished in a semi matt white paint. The QFLEX 48-WP also includes the necessary custom mounting hardware for quick and accurate installation.
