Passive column array loudspeaker for indoor and outdoor installation applications
400 Watts continuous, 1,600 Watts peak power
14 vertically arrayed 3.5" low frequency drivers provide high intelligibility speech reproduction
16 vertically arrayed 1" high frequency metal dome tweeters for full range sound up to 35 kHz
FAST (Focussed Asymmetrical Shaping Technology) delivers asymmetric vertical dispersion towards the typical listening plane
Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
Low insertion loss 150 W line transformer with easily accessible tapping switch
All components weather resistant to IP65 for outdoor use
Architecturally styled aluminium enclosure with a semi matt white painted finish
Corrosion resistant stainless steel perforated grille
Included custom brackets allow quick and accurate installation
1-Year Warranty Program*
Designed and engineered in the U.K.
The VLS 30-WH is an 1600-Watt passive column array loudspeaker ideally suited for challenging acoustic and architecturally sensitive spaces where background/foreground music and speech reinforcement is required. Applications include airports, train stations, conference centers, houses of worship, stadium concourses, museums, theme parks and hotels. The heart of the loudspeaker system is its asymmetrical vertical dispersion, which gently shapes the acoustic coverage towards the lower quadrant of the vertical axis.
VLS 30-WH’s Focused Asymmetrical Shaping Technology (FAST) also facilitates quick and easy installation, with less need for tilting for optimal mounting. VLS 30-WH packages this performance in a slender and narrow profile, aesthetically refined, powder coated aluminum chassis with curved stainless steel grille.
VLS 30-WH’s design comprises 14 vertically arrayed 3.5" low frequency drivers and 16 vertically arrayed 1" high frequency metal dome tweeters for pristine audio reproduction from 90 Hz - 35 kHz (-10 dB), with 126 dB peak
SPL (1 m, Lo-Z). The UV and weather resistant aluminium enclosure provides 130° horizontal x +3° / -11° vertical dispersion for targeted coverage. Also certified for water and dust ingress protection to IP65 standard, the VLS 30-WH is an exceptional choice for challenging environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications.
Designed with an asymmetrical vertical dispersion pattern, the VLS 30-WH merges enhanced performance with simplified mounting to cover a wide range of installed applications. The vertical dispersion of the VLS 30-WH allows optimal zones to targeted for even and precise coverage. Additionally, in installations where most conventional column loudspeakers require substantial downward tilt, the VLS 30-WH requires much less – even enabling flush mounting, for significantly improved visual aesthetics.

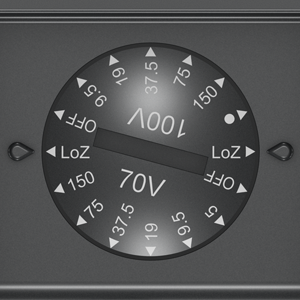

A multi-position EN 54 compliant tamper-resistant rotary switch on the rear panel allows the choice of either the low-Z, or the 70 / 100 V operating modes, with available transformer taps at 150; 75; 37.5; 19; 9.5, and 5 Watts.

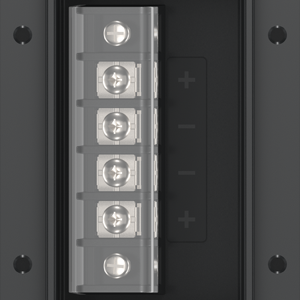

A right angled water tight cable gland is supplied with the VLS 30-WH for use in outdoor applications with an input panel cover is secured to the cabinet using the four screws. Simply pass the wiring through the cable gland and make your connections on the provided barrier strip. A second strip is provided for linking additional loudspeakers in either low-Z, or 70 / 100 V distributed systems.
The stylish and durable extruded aluminium enclosure with stainless steel grille features a semi matt white paint finish that fits unobtrusively into even the most architecturally sensitive environments. Input is via a low insertion loss 150 W line transformer with multiple taps for 70 / 100 V line systems. A dedicated flying bracket, wall mount bracket, input panel cover plate, and weather resistant gland are all included for ease of installation. At only 19 kg (41.8 lbs), the VLS 30-WH is significantly lighter and easier to install than many competing products.
Utilising a pair of internally paralleled barrier strip connectors, the VLS 30-WH can either be connected to a low-Z amplifier, or used within a 70 / 100 V distributed system. The operation mode is easily selectable via a single switch located on the rear of the enclosure.
The architecturally styled corrosion resistant extruded aluminium enclosure is finished in a semi matt white paint and is complemented by a stainless steel perforated grille. All VLS 30-WH mounting hardware is included and over-engineered for the ultimate in safety.
120 Hz - 22 kHz ±3 dB
90 Hz - 35 kHz -10 dB
=+3° / -11° V (-4° bias)
400 W average, 800 W continuous,1600 W peak
1200 W @ 4 Ω
94 dB (1 m, Lo Z)
120 dB continuous, 126 dB peak (1 m, Lo Z)
Passive, utilizing Focussed AsymmetricalShaping Technology (FAST)
15 averaged, 1 kHz to 10 kHz
11.8 average, 1 kHz to 10 kHz
14 x 3.5" (89 mm) woofers
16 x 1" (25 mm) metal dome tweeters
150 W / 75 W / 37.5 W /
19 W / 9.5 W / 5 W /
OFF & low impedance operation
150 W / 75 W / 37.5 W / 19 W / 9.5 W /
OFF & low impedance operation
220° H x 41° V
200° H x 21° V
120° H x 17° V
120° H x 20° V
Terminal 1+ / 2- (input); 3- / 4+ (link)
1461 x 121 x 147 mm (57.5 x 4.8 x 5.8")
19 kg (41.8 lbs)
Paint RAL 9003 (white)
Custom RAL colours available
(additional cost and lead-time)
Powder coated perforated steel
Flying bracket, wall mount bracket,
input panel cover plate and gland
