Authentic reproduction of famous synthesizer circuitry from the ‘70s
Pure analog signal path based on authentic VCO, VCF and VCA designs
2 independent voices for polyphonic, SPLIT or 4 oscillator unison sounds
2 variable oscillator shapes with adjustable pulse width for inspiring sounds
Oscillator sync for piercing lead sounds and complex effects
2 legendary multi-mode filters with low-pass, high-pass, band-pass and notch modes
2 dedicated and fully analog LFOs with sine waveform
4 analog envelope generators for extensive control of filters and amplifiers
Noise generator dramatically expands waveform generation
Extensive modulation capabilities, including internal and external sources
2-channel Mixer section featuring level and pan controls for intense stereo sounds
Portamento function applicable to both voices for great pitch gliding effects
2 external audio inputs for processing external sound sources
Dedicated audio outputs plus a combined stereo output for maximum flexibility
Massive amount of CV and GATE In/Outs for extreme creativity
16-voice Poly Chain allows combining multiple synthesizers for up to 32 voice polyphony
Complete Eurorack solution – main module can be transferred to a standard Eurorack case
67 controls to give you direct and real-time access to all important parameters
MIDI and USB implementation with MIDI channel and Voice Priority selection

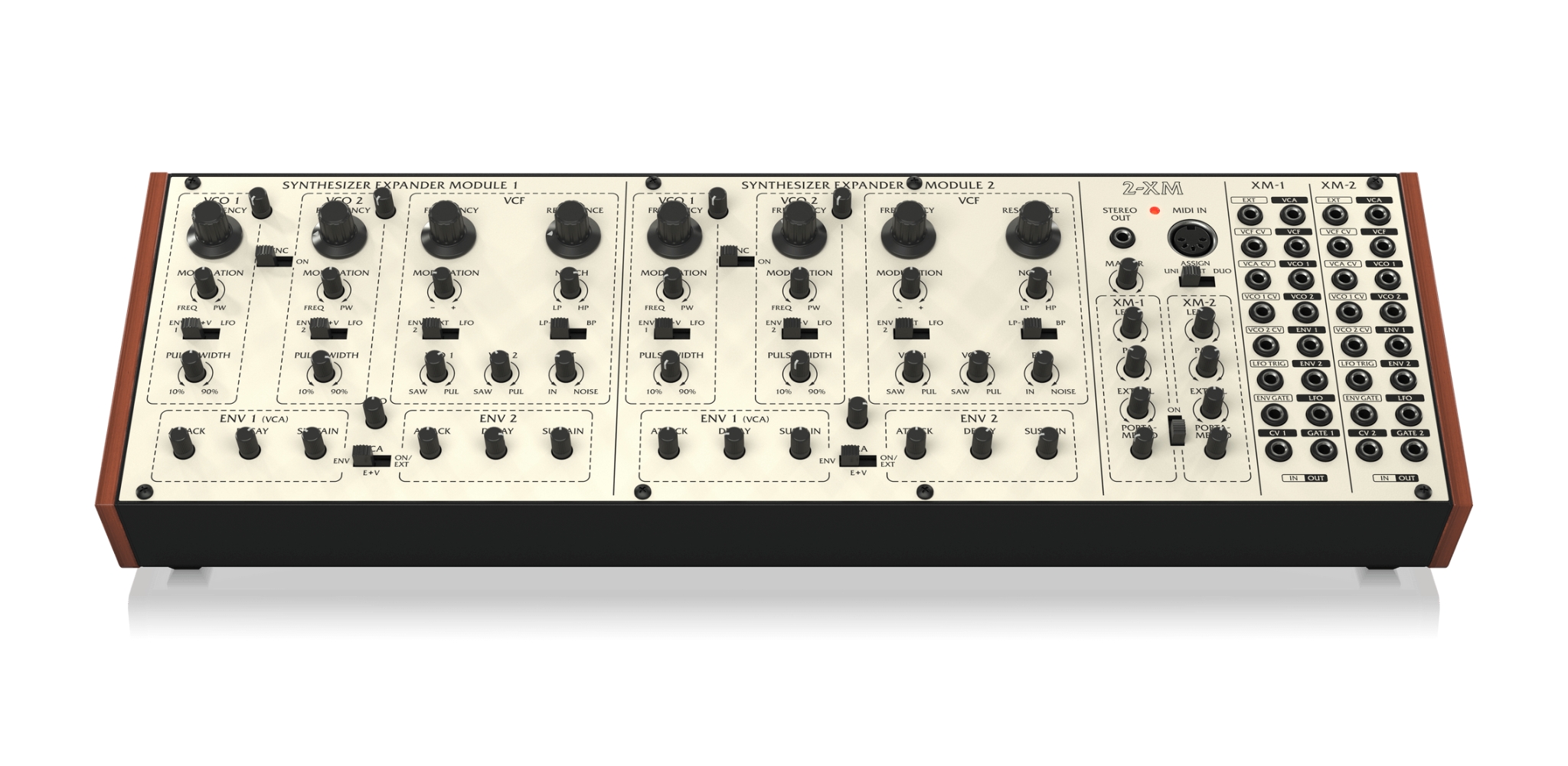

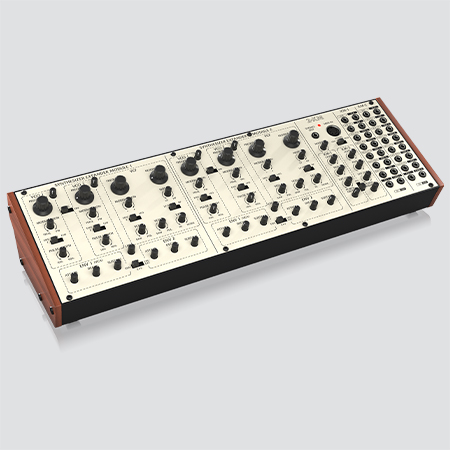

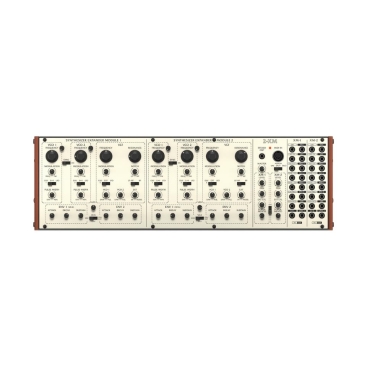

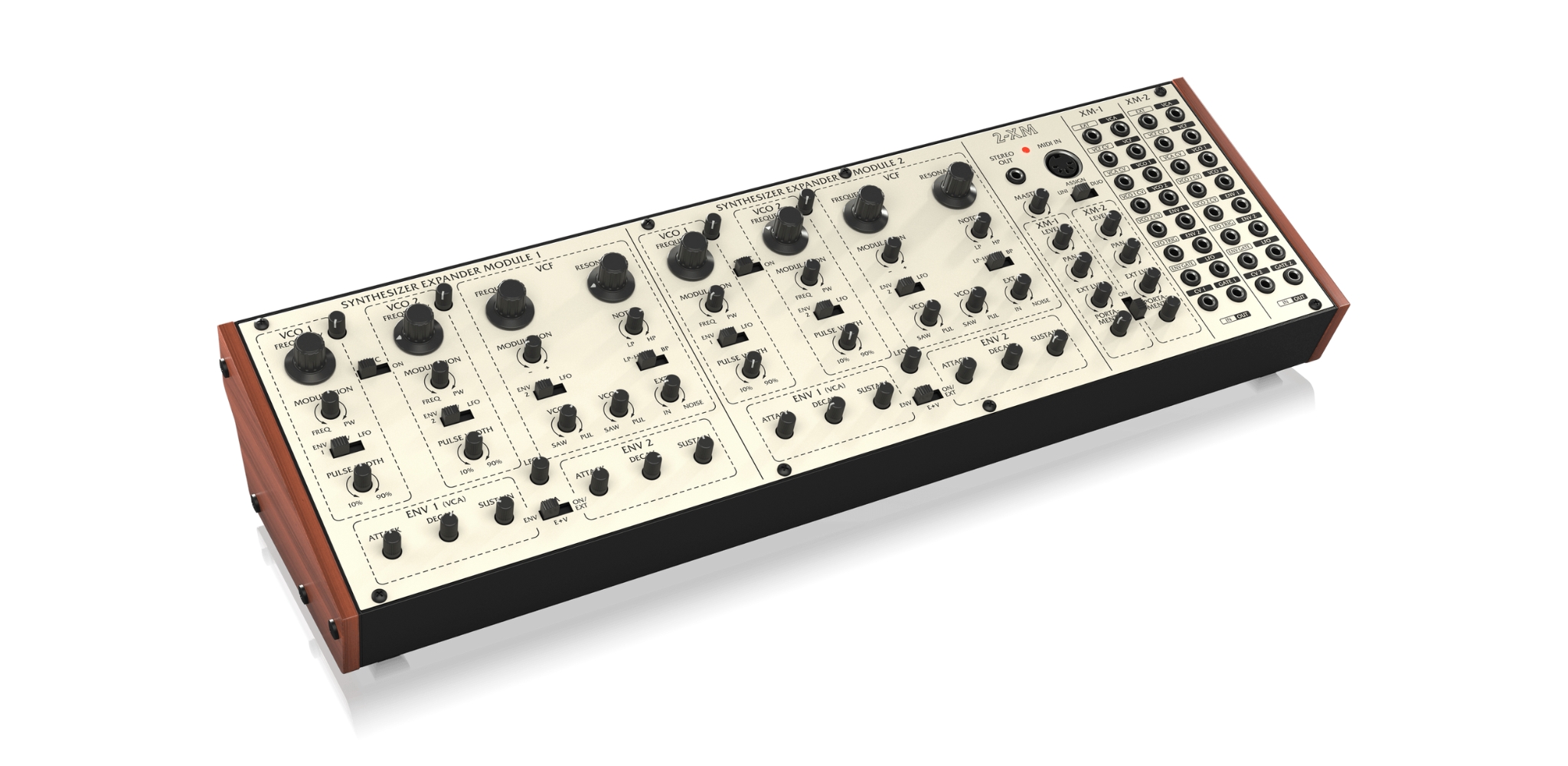

It’s the polyphonic synth that started it all and one that’s sure to jumpstart your legendary synthesizer adventure! The Behringer 2-XM is a classic polyphonic analog synthesizer inspired by iconic '70s designs used by the greats such as Vince Clarke, Jan Hammer, and Vangelis.
The original design consisted of two single-voice modules coupled together. With its 37-note keyboard, it was a considerable size but introduced a feature no other synth was capable of at the time: polyphony. The 2-XM combines all the features of the original with all the awesome stuff that we’ve all come to love in modern synths, such as MIDI and USB implementation, stereo, as well as a ton of CV and GATE ins and outs that’ll allow you to transform and shape sounds any way you want!

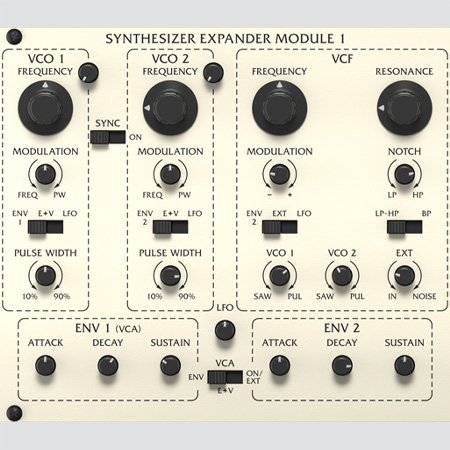

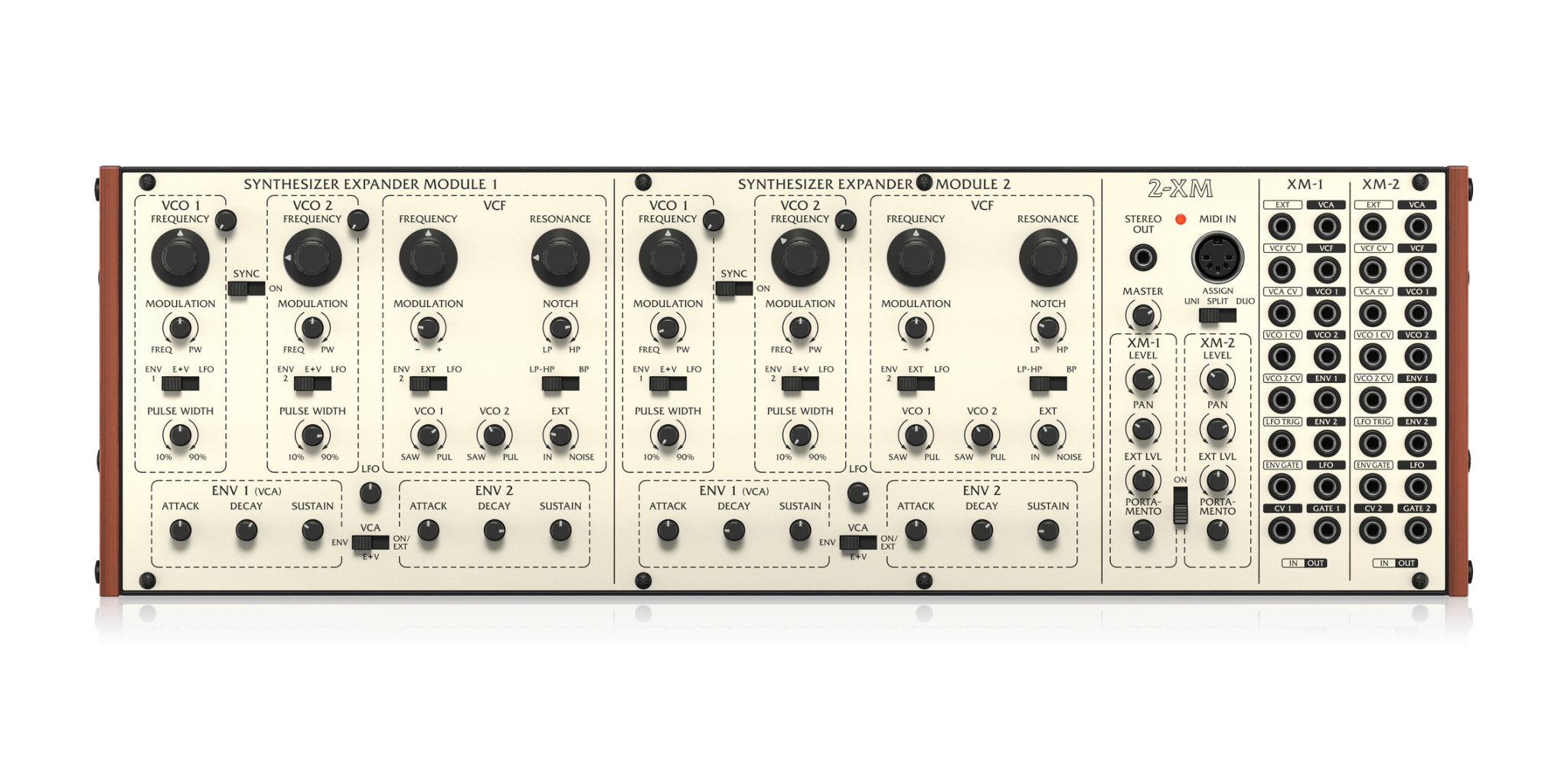

The 2-XM comes with 4 VCOs, 4 envelope generators, 2 LFOs, and 2 multi-mode VCFs across two synthesizer expander modules. These two voices can be combined for some sweet two-voice polyphony, SPLIT, or have the 4 oscillators in unison for some truly intricate layering and rich, vintage analog tones!

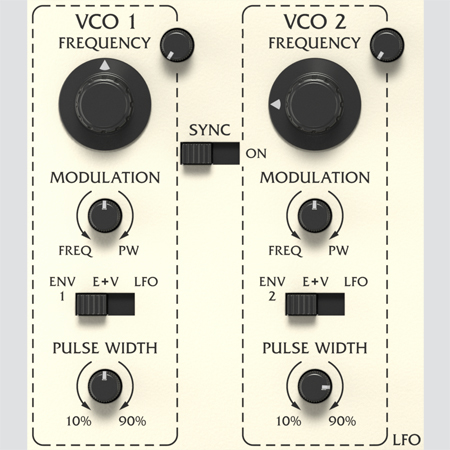

Each VCO can be shaped in many different and exciting ways with their adjustable frequency, modulation and pulse width controls. And when you want a spicy lead sound, the oscillators can be synced to add even more nuance to your waveforms.

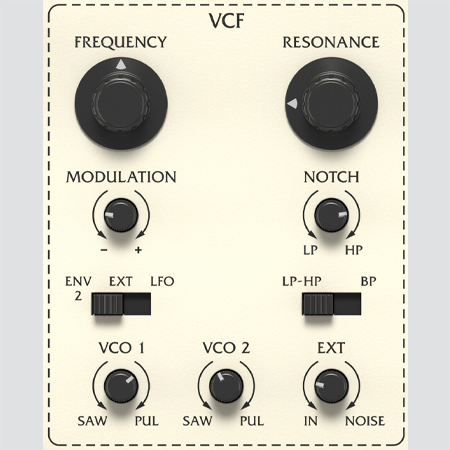

Of course, the 2-XM doesn’t stop there. The VCFs provide another slew of adjustable settings! Aside from the Frequency, Modulation and Resonance controls, each VCF comes with an amazing multi-mode filter; turning the knob all the way to the left selects the low-pass filter, turning it the other way selects the high-pass filter and setting it at 12 o’clock selects the notch filter. You can even set the VCF to band-pass mode with the flip of a switch.

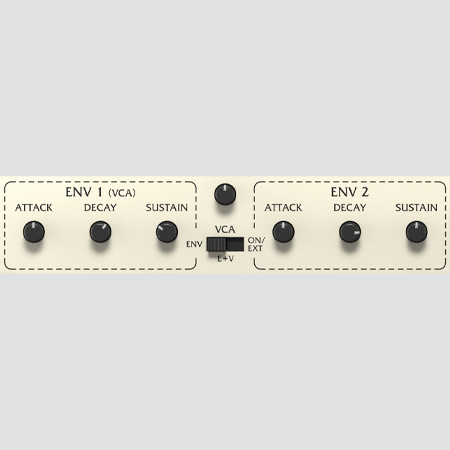

Along with all the controls at your fingertips the 2-XM also includes a total of four envelope generators to help further craft your sound and introduce subtle nuance or percussiveness with the included Attack, Decay and Sustain controls. In addition, the VCA switch allows you to toggle between envelope control or VCA which overrides ENV 1. You can even plug in an external VCA control to really dial it in.

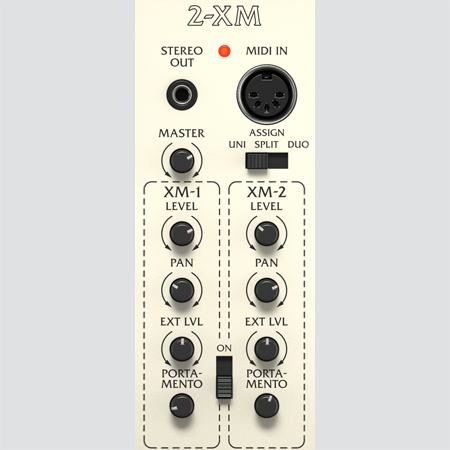

Speaking of dialing it in, we’ve also included a 2-channel mixersection where you can control level and pan controls for each module. They even feature a portamento function for some cool pitch gliding effects.
With all the 2-XMs extensive controls, we just couldn’t help but add more, and we mean a lot more! Each module comes with a huge amount of CV and GATE Ins and Outs as well as extensive modulation capabilities from both internal and external sources. And because the 2-XM is so compact, you can easily integrate it into your existing setup, patching in your favorite modules to create some awesome waveforms!

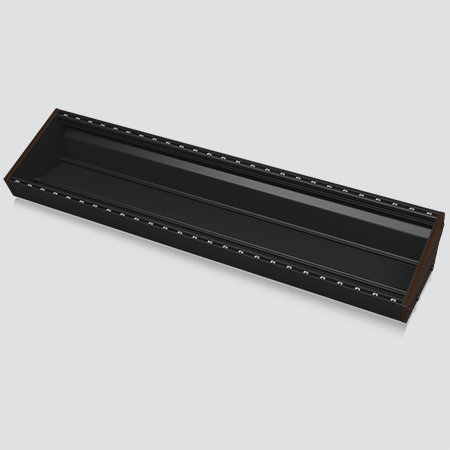

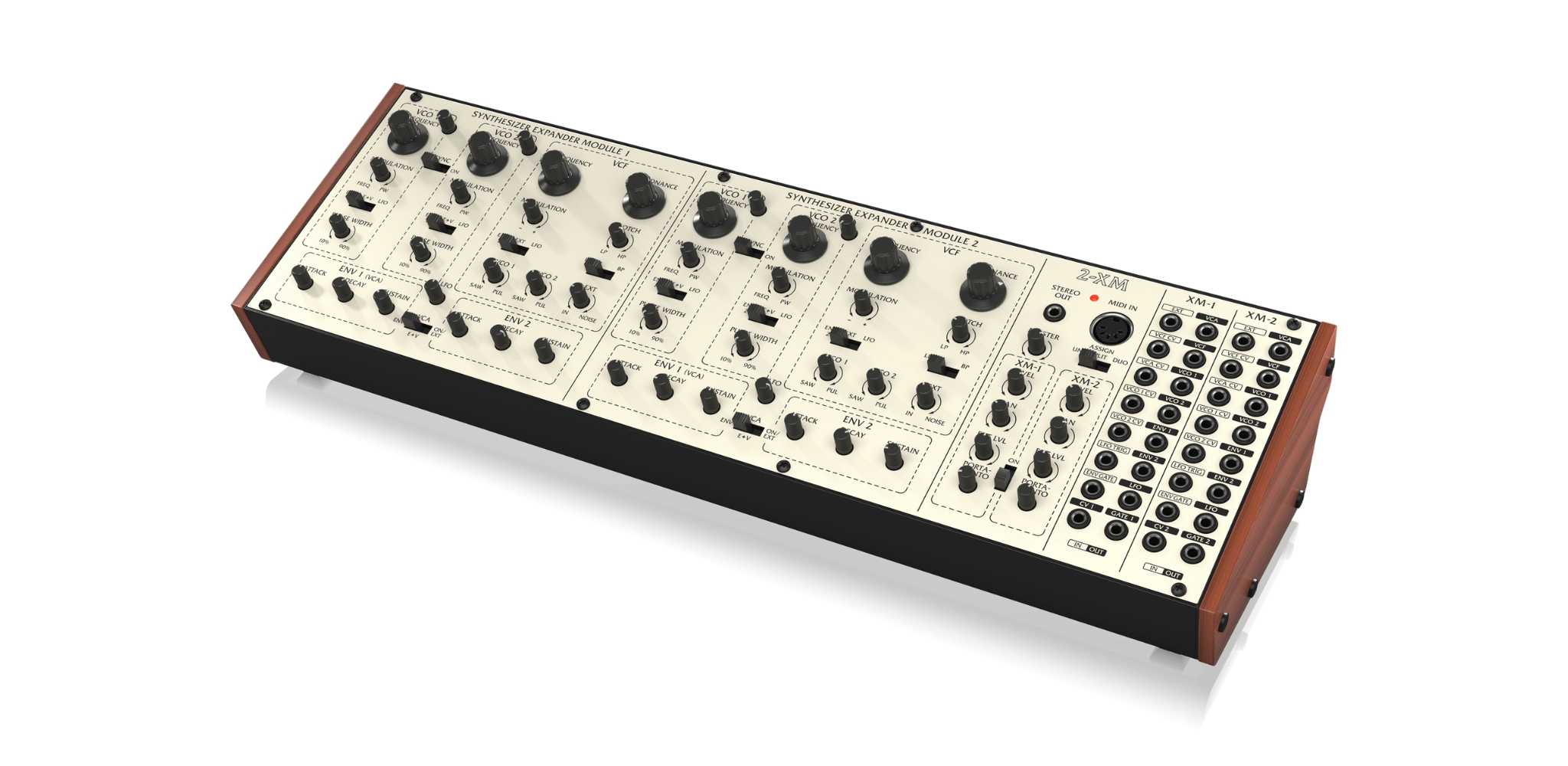

Designed to handle the rigors of life on the road or in the studio, your 2-XM can easily be transferred into a standard Eurorack case for the perfect integration into your existing system.
Rediscover the magic and grab the BEHRINGER 2-XM, an incomparable classic recreation of the synth that started a polyphonic revolution!
Get one from your local behringer dealer today!
Xem thêm
2 (duophonic)
Analog
4 VCO
2 LFO
2 LPF 12 dB/octave
4 ADS

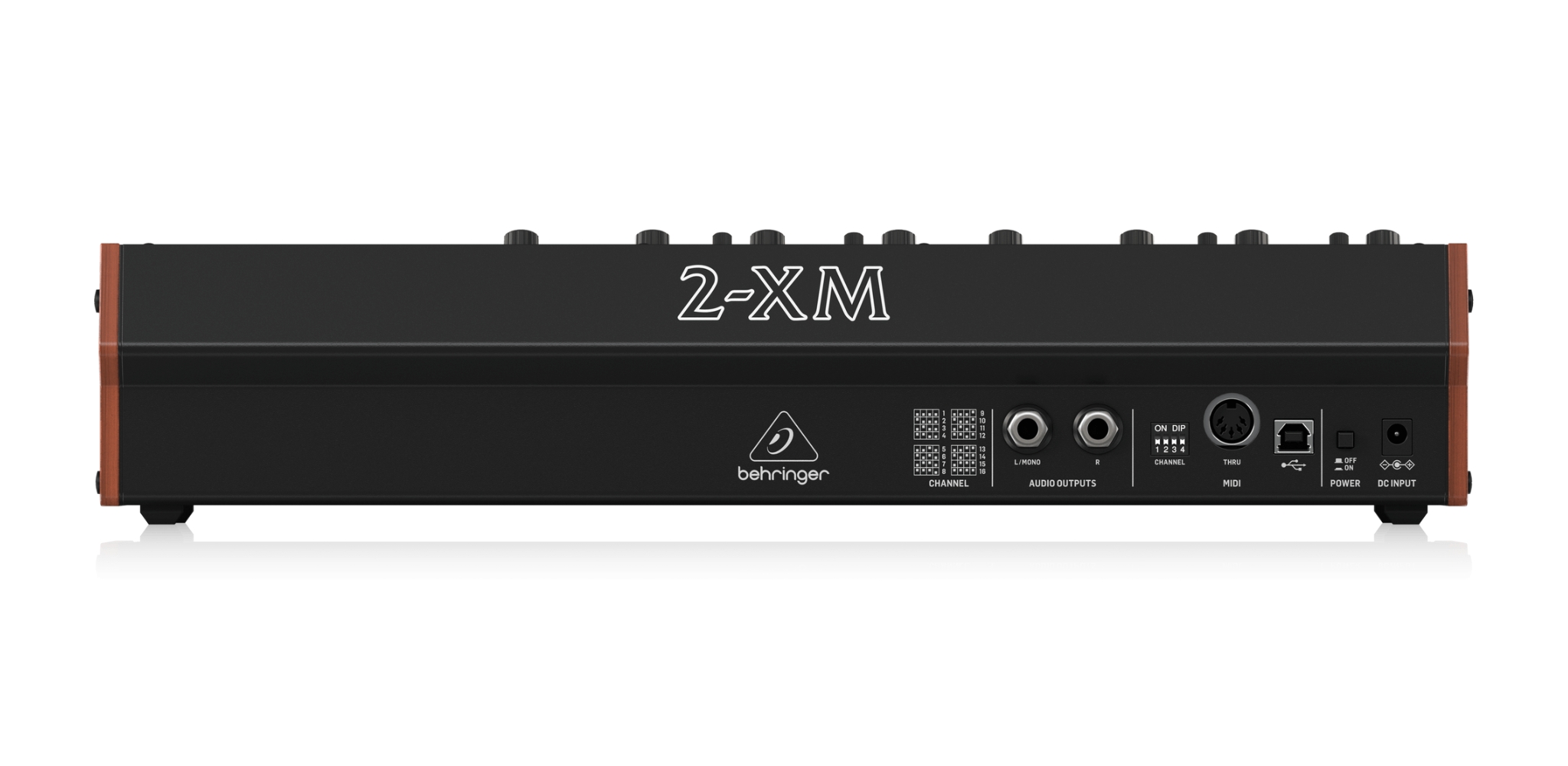

Push button (rear panel)
5-pin DIN
USB 2.0 Type B socket
3.5 mm TRS stereo (top panel)
2 x 6.35 mm TR (rear panel)
32 x 3.5 mm TR jack
Class compliant USB 2.0 Type B
Windows 7 or higher
Mac OS 10.10 or higher
Master Volume
Module Level x 2
Module Pan x 2
External Level x 2
Portamento x 2
Assign (Uni/ SPLIT/ DUO)
Portamento On/Off
Coarse Frequency x 4
Fine Frequency x 4
Modulation x 4
Pulse Width x 4
Modulation Source x 4
Sync x 2
Rate x 2
Frequency x 2
Resonance x 2
Modulation x 2
Notch x 2
VCO1 x 2
VCO2 x 2
Ext x 2
Modulation Source x 2
LP-HP / BP x 2
Attack x 4
Decay x 4
Sustain x 4
VCA on / Ext x 2
Ext audio x 2 / VCF CV x 2 / VCA CV x 2 / VCO1 CV x 2 / VCO2 CV x 2 / LFO Trig x 2 / Env Gate x 2
CV1 / Gate1 / CV 2 / Gate2 / VCA audio x 2 / VCF audio x 2 / VCO1 audio x 2 / VCO2 audio x 2 / Env1 CV x 2 / Env2 CV x 2 / LFO CV x 2
12 V DC
2000 mA
5°C - 45°C (41°F - 113°F)
91.4 x 424.4 x 135.6 mm (3.7 x 16.7 x 5.3")
80 hp
1.8 kg (4 lbs)
