4 input / 1 output mixer for commercial and industrial applications
4 mic/line inputs with individual volume controls
Individual front panel master volume and bass/treble controls
Configurable priority muting function for background music override
GPI remote volume control using standard RJ-45 connector and Ethernet cable
Front panel power control button for direct access
Aux output for expansion to connect with amplifiers
Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
Euroblock type mic/line input and output connectors

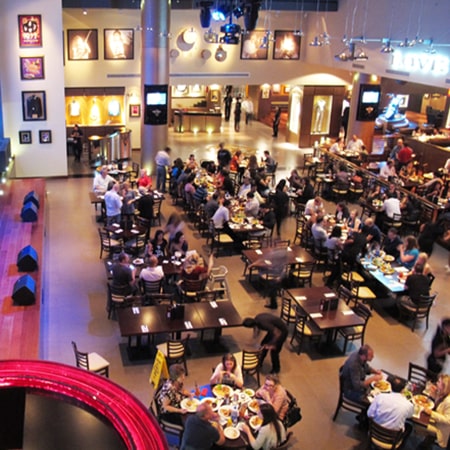

CM41: Commercial Mixer provides the perfect mixer solution for commercial and industrial applications requiring great sounding distributed audio. CM41 is easy to install and operate – even for non-technical personnel. Simply put, the CM41 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.
The CM41 comes equipped with rubber feet, enabling the amps to be placed on a desk, shelf or any clear surface without any additional installation requirements. However, optional rack mounting hardware is also supplied, allowing one or several models to be housed and protected inside an enclosure. This adds extensive flexibility as a single product can be housed in a half 19" rack or full rack enclosure as well as a pair of amplifiers can easily be mounted side-by-side in a single rack space. With the included brackets the unit can also be mounted to a wall or under a table/shelf.
CM41’s controls are sublimely intuitive, allowing the operator to quickly make adjustments. The front panel power button and Master volume knob are easily accessible, enabling virtually anyone to operate the system. Bass and Treble controls are also available for fine tuning – but require a tool when making changes.
For connecting a balanced source such as a mixer or audio processor, a standard 3-pin Euroblock Input socket is provided. Alternatively, RCA cables can be connected for unbalanced stereo sources (summed to mono), such as players, phones or computers, however only one input source should be used at a time. Loudspeaker Output is provided in the form of a standard 2-pin Euroblock socket.

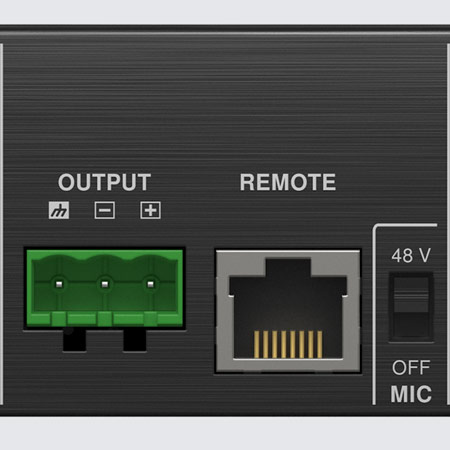

Connect the CM 41 to Commercial Audio Amplifiers or other Audio Equipment through the Euroblock output connector.
The RJ45 receptacle on the rear panel opens up a broad range of remote-control options, including the CRC-V Series of wall controllers and a stylish tabletop controller, the LAB.LEVEL. All can be interconnected via inexpensive and readily-available Ethernet cabling.
Commercial installs vary widely in scope and often grow and change over time. The CM41 is part of a family of products that provides both single and dual zone products that are perfect for building out a system to any size. With its individual zone volume and remote control capabilities, the CM41 is an ideal building block for a dynamic and scalable system solution.
The Commercial Amplifier Series makes it easy to bring highest-quality music and announcements to business and industrial environments in an easy to integrate – and even easier to operate system. Plus, with features such as its Auto Ramp and revolutionary direct drive constant power technology, the Energy Star certified Commercial Amplifier Series can generate enough energy savings to pay for itself in virtually no time at all.
Xem thêm
4 inputs - 1 output
1 x 5-pin Euroblock connector (channel A)
3 x 3-pin Euroblock connector,
3 x stereo RCA (channel B, C, D)
Balanced mic/line: 20 kΩ
Unbalanced line and RCA: 10 kΩ
4.88 V (+16 dBu)
48 V
3-pin Euroblock connector
-(infi nity sign - +10dB
9.6 V (+22 dBu)
Power standby button, input and output gain control, tone controls - bass and treble
mic/line switch, vox/ducking threshold control, phantom power, input routing (2-channel models ony)
±10 dB @ 100 Hz
±10 dB @ 10 kHz
On (blue), force standby (red), standby (yellow)
>12.3 mV (-36 dBu)
>-50 dBu
3 V (+12 dBu)
1 x RJ45 Ethernet connector
<0.05%
20 Hz to 20 kHz, +0.5 / -1 dB
>70 dB
>97 dBA
Universal 100-240 V~, 50/60 Hz
T 3.15 A L 250 V
10 W
Standard IEC connector
44 x 218 x 299 mm (1.8 x 8.6 x 11.8")
2.1 kg (4.6 lbs)
Brushed black anodized aluminum chassis with black painted steel bottom
CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B
