| Panel color |
iron black |
| Power input conditions (single-phase 3-wire) |
AC90-260V 50-60HZ two-phase (three lines: zero, fire, ground) |
| Channel number |
8-way universal socket relay controlled |
| Relay controlled output can withstand single channel power / total power (reactive power) |
5000W/8000W maximum withstand reactive power |

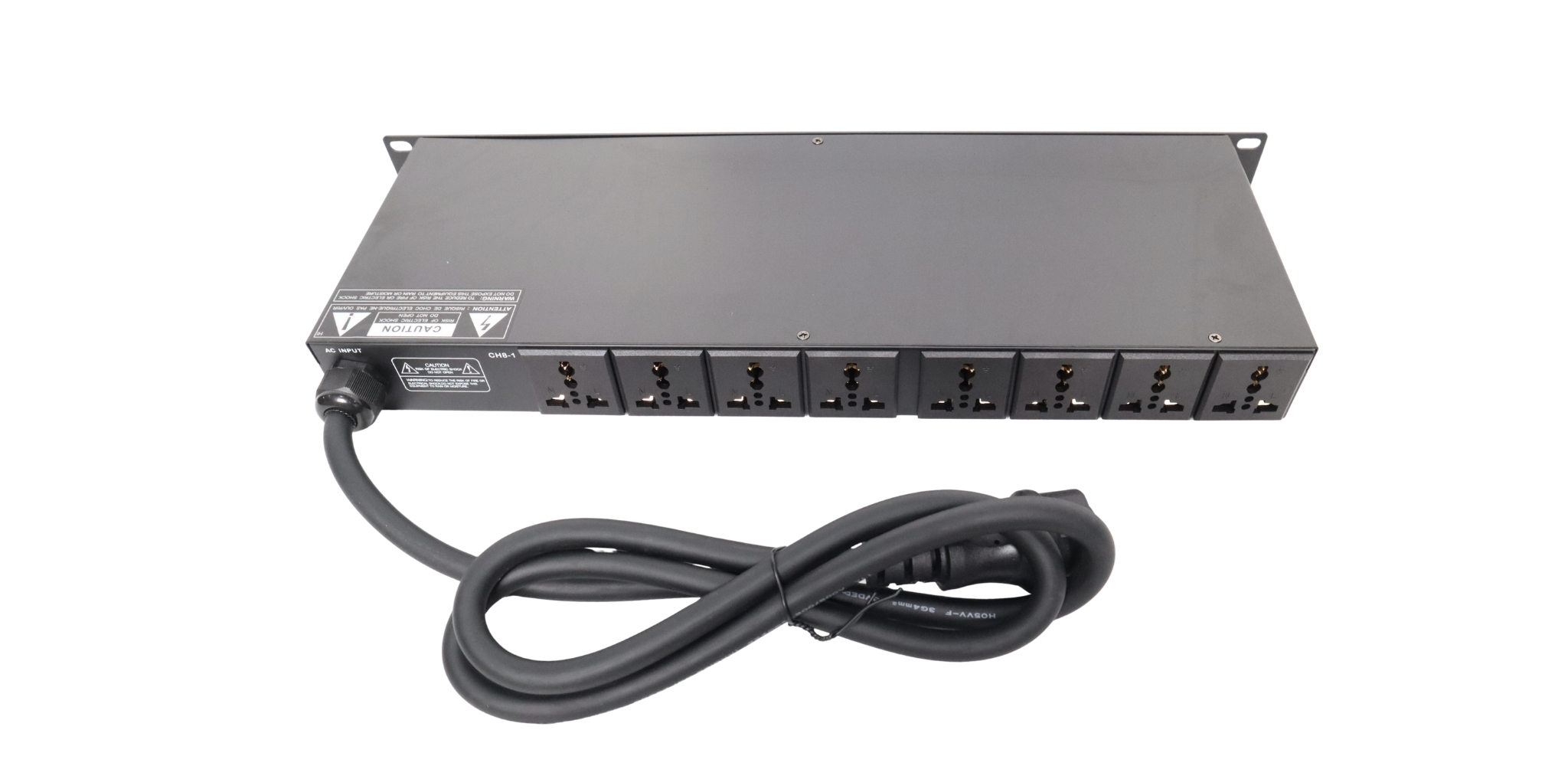

| Output power socket specifications |
flame retardant ABS material, can withstand up to 13A current, brass material, standard universal socket |
| Features |
Sequence is turned on in reverse order.
PASS button can be turned on at the same time.
Accurate voltage display |
| Inter-switch time/timing time |
1 second |
| Output relay contact current |
30A 277VAC |
| Board specifications |
double-sided fiberboard, main power supply line double thickening and thickening |
| Power supply specification |
Built-in switching power supply for global voltage AC90-260V 50- 60HZ |
| Main cable specification |
3*4 square cable, total length is 1.0 m (no power input plug) |
| Opening type |
square ship type switch |
| Function display voltage display table type |
red digital tube display voltmeter |
| Stacking machine cascade function |
none |
| Power Purification Function (EMI Professional Grid Filter) |
None (optional with separate or each filter) |
| Body size |
length 480MM * width 185MM * height 46MM (non-standard 1U) |
| Single package size |
length 555MM * width 255MM * height 85MM (US beef carton) gross weight - 2.7KG |
| The whole weight and outer package size |
1 piece 5 sets with a total of 14.5KG, outer package size - length 445 * width 270 * height 570mm" |
