TCX122 Loa Full bass 30 Turbosound

Mã sản phẩm: TCX122      6.280
4.2/5 trong 20 lượt
  • TCX122
  • TCX122
  • TCX122
  • TCX122

  • Miễn phí giao hàng toàn quốc


·  Product Information Document, English

·  Quick Start Guide, English


  • 2 way loudspeaker for portable PA and installation applications

  • 300 Watts continuous, 1,200 Watts peak power

  • High excursion 12" low frequency driver with low mass voice coil for improved transient response

  • 1" high temperature dome compression driver with extended high frequency reproduction

  • Rotatable converging elliptical waveguide provides 90? H x 60? V dispersion

  • M10, M8 and M6 rigging points compatible with Turbosound and OmniMount* brackets

  • Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays

  • Concealed pole mount socket enables mobile applications

  • Integral handle for lifting and carrying

  • 15 mm (5/8") birch plywood enclosure with hard wearing semi matt black paint finish

  • Powder coated perforated steel mesh grille with foam backing

  • Neutrik speakON* NL4 and barrier strip connectors

  • 1 -Year Warranty Program*

  • Designed and engineered in the U.K.


    The DUBLIN TCX122 is a 1,200 Watt compact 12" passive two way loudspeaker that is ideally suited for a wide range of portable or installed speech and music sound reinforcement applications. TCX122 consists of a trapezoidal enclosure housing a high excursion 12" reflex-loaded low frequency driver with low mass voice coil for improved transient response, and a 1" high temperature dome compression driver mounted on a rotatable converging elliptical waveguide, which provides a 90° horizontal by 60° vertical dispersion pattern.

    Custom-Engineered Drivers
    Custom-Engineered Drivers

    Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. TCX122’s high excursion 12" low frequency and 1" high temperature dome compression drivers ensure truly world-class performance that will stand the test of time.

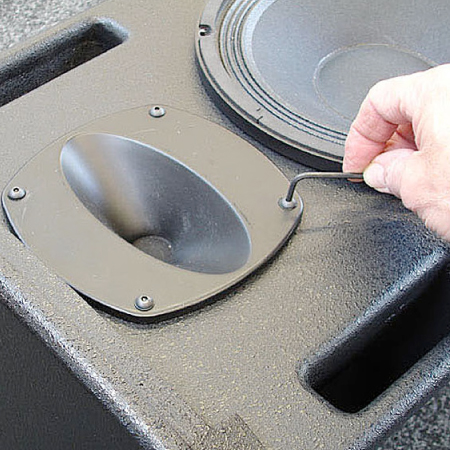

    Rotatable Waveguide
    Rotatable Waveguide

    The TCX122’s compression driver is mated to a converging elliptical waveguide that is rotatable through 90°, allowing a swap of the horizontal and vertical dispersion patterns for a smooth wavefront, while providing exceptional pattern control. This feature is especially useful for retaining wide horizontal dispersion when the enclosure is mounted horizontally due to ceiling height restrictions.

    Construction and Connectivity
    Construction and Connectivity

    Constructed from 15 mm (5⁄8") birch plywood, the cabinet is finished in hard wearing semi matt black textured paint and includes internal M10, M8 and M6 threaded rigging points for use with Turbosound and industry standard wall and ceiling brackets. A perforated steel mesh grille backed with reticulated foam protects the drive units. The rear connector panel provides two Neutrik speakON* NL4 connectors for input and link functions, which are wired in parallel to a 4-way barrier strip connector.

    Discreet Implementation
    Discreet Implementation

    When permanently installed, the TCX122 presents a discreet appearance with no visible side handles for visually unobtrusive loudspeaker arrays, while in portable applications the pole mount blanking plug can be removed for use with speaker stands or poles. A single carrying handle is provided for ease of installation and transportation.

    Architecture & Engineering Specifications

    The loudspeaker shall be of the full range, two-way passive type consisting of one 12" (305 mm) LF driver and one 1" (25 mm) HF compression driver. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 100 Hz to 18 kHz and within -10 dB from 68 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 90° H x 60° V, rotatable. Nominal impedance shall be 8 Ohms. Power handling shall be 300 Watts continuous, 1,200 Watts peak. Sensitivity, measured on axis, mean averaged over stated bandwidth, shall be 97 dB, 1 Watt @ 1 metre. Maximum SPL (peak), measured at 1 metre with music program at stated amplifier input, shall be 128 dB. Dimensions: 552 mm high x 406 mm wide x 368 mm deep (21.7" x 16.0" x 14.5"). Net weight: 18.3kg (40.2 lbs). The loudspeaker system shall be the Turbosound TCX122. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance / size specifications are equalled or exceeded.

    Frequency response 100 Hz - 18 kHz ±3 dB
    68 Hz - 20 kHz -10 dB
    Nominal dispersion 90° H x 60° V @ -6 dB points
    Power handling (IEC) 300 W continuous, 1,200 W peak
    Sensitivity 97 dB (1 W @ 1 m)
    Maximum SPL 122 dB continuous, 128 dB peak
    Impedance 8 O
    Components 1 x 12" (305 mm) LF driver
    1 x 1" (25 mm) HF compression driver
    Connectors 2 x Neutrik speakON* NL4
    1 x barrier strip terminals
    Wiring Pins 1+ / 1- input, pins 2+ / 2- link
    Dimensions (H x W x D) 552 x 406 x 368 mm (21.7 x 16.0 x 14.5")
    Net weight 18.3 kg (40.2 lbs)
    Construction 15 mm (5/8") birch plywood
    Finish Semi matt black paint (white optional)
    Grille Powder coated perforated steel
    Flying hardware M10 x 9, M8 x 4, M6 x 4 Points
