BM-13-PHASER Effect Pedal for Guitar Behringer

Mã sản phẩm: BM-13-PHASER      9
4.67/5 trong 3 lượt
Behringer
  • BM-13-PHASER
  • BM-13-PHASER
  • BM-13-PHASER
  • BM-13-PHASER
BM-13-PHASER
BM-13-PHASER
BM-13-PHASER
BM-13-PHASER

Tính năng nổi bật

Controls: Drive, Output Level, Sweep, Resonance, LFO Amount and Rate
Switches: 6-Stage/12-Stage, LFO Speed Lo/Hi, LED: LFO, Bypass, Level
Footswitch: Effect bypass
Current consumption: 400 mA
Effect Pedal for Electric Guitar, Electric Bass, and Synthesizer

Product Features

  • Vintage phaser
  • Features modular-style input and output options
  • Authentic replica of the Moog MF-103 from the 1990s
  • 12-stage phaser with feedback control for resonant effects
  • Powerful modulation options for a wide range of sounds
  • Envelope control for dynamic and expressive modulation
  • Input level and mix controls
  • Controls: Drive, Output Level, Sweep, Resonance, LFO Amount and Rate
  • Switches: 6-Stage/12-Stage, LFO Speed Lo/Hi, LED: LFO, Bypass, Level
  • Footswitch: Effect bypass
  • Current consumption: 400 mA
  • Power supply via 9 V DC mains adapter (2.1 x 5.5 mm barrel connector, centre negative) - suitable mains adapter

BM-13 PHASER

The Behringer BM-13 PHASER is your new go-to box of swirling, sweeping, analog goodness. Whether you’re chasing subtle vintage shimmer or deep resonant sweeps, BM-13 delivers timeless phaser tones with powerful controls for shaping the waveform the way you want.

A Control Freak’s Dream

A Control Freak’s Dream

With hands-on control over sweep, resonance, LFO rate and amount, BM-13 is as tweakable as it is musical. Want to slow things down to a hypnotic pulse? Crank that LFO down to a lazy 0.01 Hz. Feeling spicy? Flip it into high gear for warbly, out-there textures at up to 250 Hz. Add a little grit with the Drive knob, fine-tune your output level and explore either 6-stage or 12-stage phasing – each delivering its own flavor dimension and character.

Plug In and Lose Yourself

Plug In and Lose Yourself

From funked-out guitar riffs to synth pads that melt into space, BM-13 is built for exploration. Guitarists and bassists will love how it adds motion without washing out your tone, while keyboardists and synth wizards can drench their patches in analog swirl. Even in the studio, it’s a secret weapon – run vocals, drums, or entire mixes through it for instant vibe and warmth. And with stereo output capability, your sound can stretch wide across the stage or mix.

Built to Play

Built to Play

Modulation doesn’t stop at the stomp switch. BM-13 comes equipped with expression pedal inputs, giving you full control over key parameters from modular gear or performance pedals. Whether you’re a traditional player or an experimental sound-shaper, the BEHRINGER BM-13 PHASER invites you to dive in and make it your own.

Grab one from your nearest distributor today!



Specification

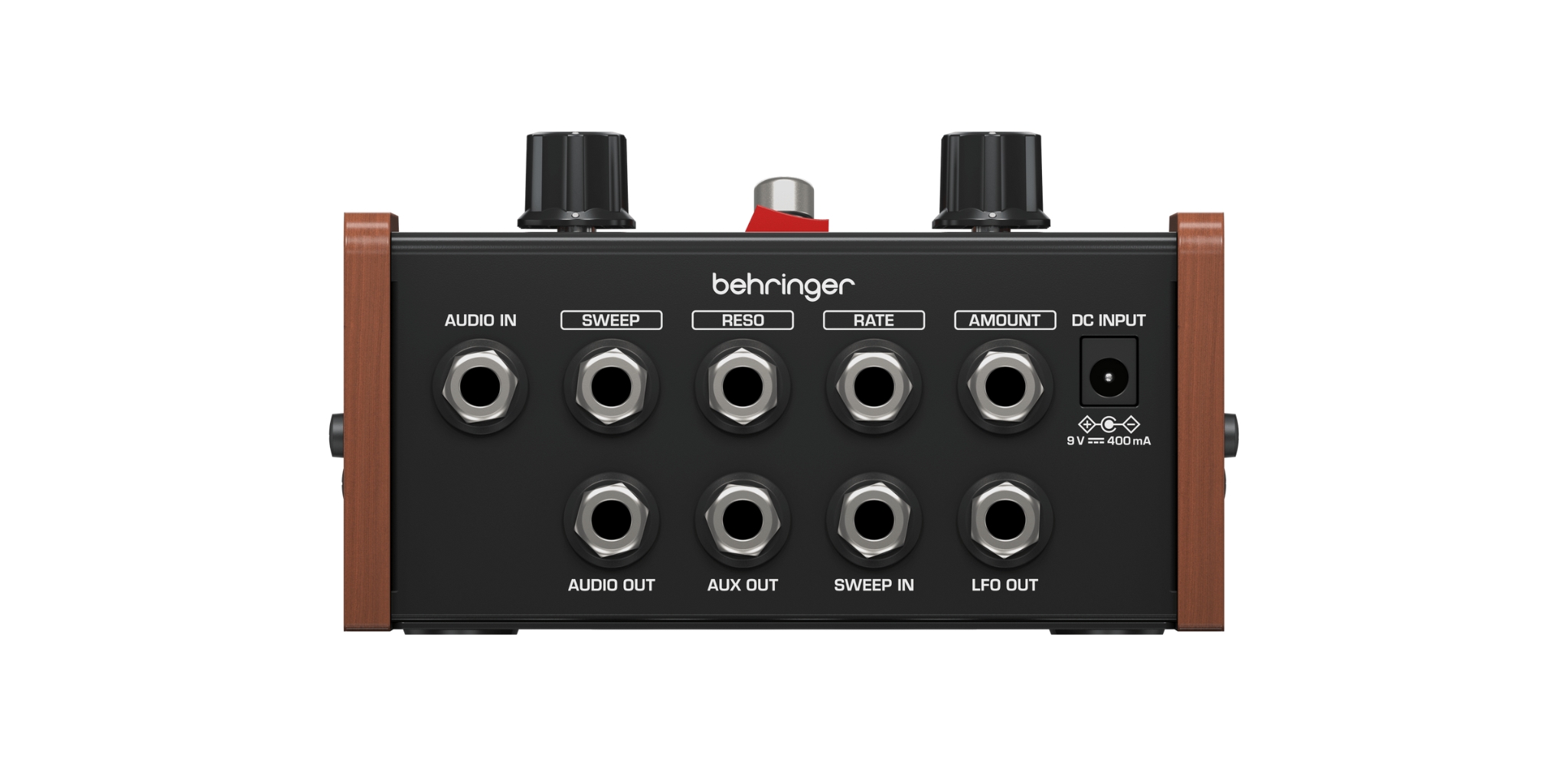

Audio Connections

Audio in
Connector

1 x 1/4" TS, unbalanced

Impedance

1 M& OMEGA;

Audio out
Connector

1 x 1/4" TS, unbalanced

Output impedance

6.8 k& OMEGA;

Aux out
Connector

1 x 1/4" TS, unbalanced

Output impedance

6.8 k& OMEGA;

Control Connections

Sweep
Connector

1 x 1/4" TRS

Impedance

40 k& OMEGA;, unbalanced

CV input range

0 V to +10 V

Reso
Connector

1 x 1/4" TRS

Impedance

50 k& OMEGA;, unbalanced

CV input range

0 V to +5 V

Rate
Connector

1 x 1/4" TRS

Impedance

34 kΩ, unbalanced

CV input range

0 V to +5 V

Amount
Connector

1 x 1/4" TRS

Impedance

40 kΩ, unbalanced

CV input range

0 V to +5 V

Sweep in
Connector

1 x 1/4" TRS

Impedance

47 kΩ, unbalanced

CV input range

±2.5 V

FLO out
Connector

1 x 1/4" TRS

Output impedance

2.2 kΩ, unbalanced

CV input range

±2.8 V

Controls

Drive

1 x rotary knob

Output level

1 x rotary knob

Sweep

1 x rotary knob

6-stage / 12-stage

1 x rocker switch

Resonance

1 x rotary knob

Amount

1 x rotary knob

Hi / lo

1 x rocker switch

Rate

1 x rotary knob

Bypass

1 x footswitch

System

Frequency response

20 Hz to 20 kHz (+0 / -0.3 dB)

Dynamic range

> 73 dB, 20 Hz to 20 kHz

Signal-to-noise ratio

> 63 dB

Overall gain

22 dBu

Power Supply / Voltage

Power input

Standard 9 V DC,  centre negative, > 400 mA
(power supply not included)

Power consumption

0.75 W

Dimensions / Weight

Dimensions (H x W x D)

85.9 x 147.6 x 196.9 mm
(3.38 x 5.81 x 7.75")

Weight

1,047 g (36.9 oz)
