TECHNICAL PARAMETERS
Light source
Voltage: AC100–240 V 50–60 Hz
Rated power: 500W
Light source: 400W high-brightness LED module
Optical
Beam angle: 4–42°
Controls
Channel: 36 DMX channels
Control mode: DMX512, RDM, Auto, Master-Slave, Sound-activated
Effect
Color wheel: 1 color wheel with 6 colors + open + linear CTO; supports semi-color and bidirectional flow, color conversion, and semi-color rainbow effects
Fixed gobo wheel: 1 fixed gobo wheel with 9 gobos + open. Each gobo comes with shake effect; the wheel supports forward/reverse scrolling at adjustable speeds.
Rotation gobo wheel: 1 rotating gobo wheel with 7 interchangeable gobos + open. Each gobo can rotate clockwise/counterclockwise with shake effect, and the wheel features forward/reverse scrolling with variable speed control.
Linear CMY + CTO system with stepless color mixing effect.
Double-prism effects: 3 facet prism + 5-row array prism
Framing wheel: 8 controllable shutter blades to shape beams into triangles, diamonds, rectangles and more at any angle.
Frost: Uniform linear soft frost effect adjustable from 0% to 100%.
Strobe: 0–20Hz with various strobe effects
Dimming: 0–100% linear dimming
Construction
Pan: 540°+16bit fine
Tilt: 270°+16bit fine
Display: LCD screen with switchable Chinese/English interface, supporting smart 180° flip for inverted installation.
Intelligent Fan Speed Control Design: Built-in intelligent fan speed regulation. The fixture automatically reduces power under high-temperature conditions, with the main fan running at low speed.
Automatic error correction: Photoelectric homing system for both pan and tilt. The fixture can automatically correct and reset position after accidental collision or position error.
Housing Material: Features stylish design with injection-molded heat-resistant fireproof engineering plastic.
IP rating: IP20
Weight&Dimension
Fixture dimension: 607*317*246 mm
Net Weight: 17.5 kg

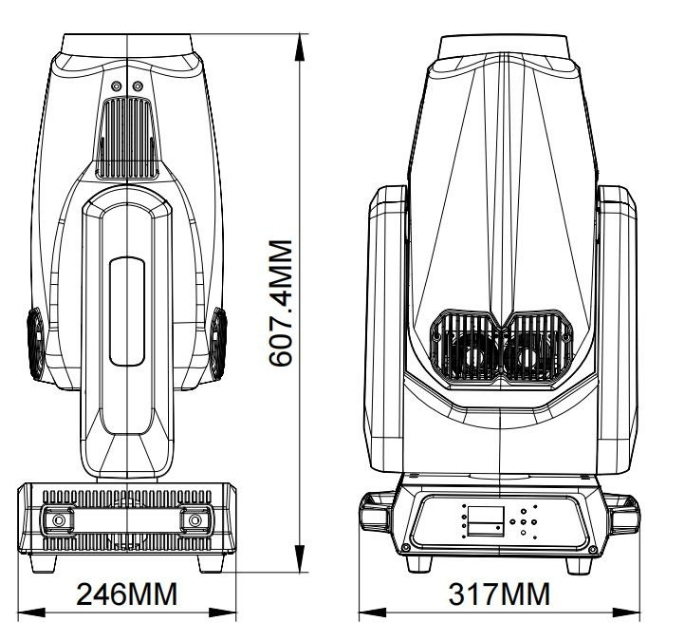

Size Drawing
LUX Date

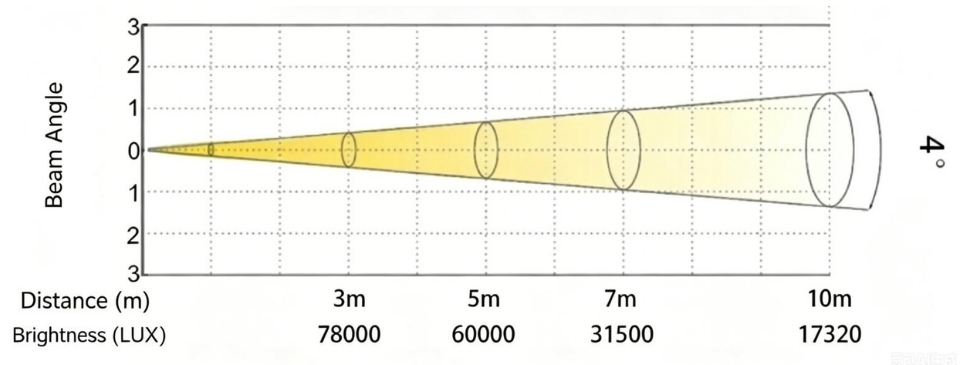

LUX Data of 4 degree beam angle

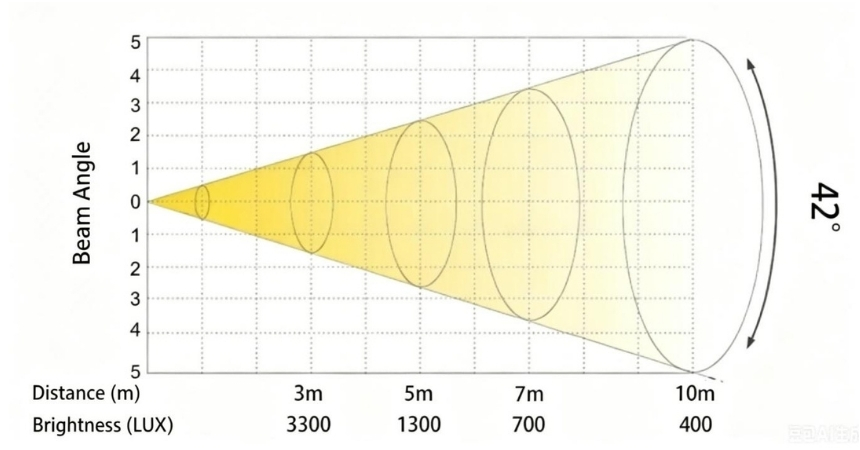

LUX Data of 42 degree beam angle
